POWER AMP 4 CHANNEL PIONEER GM-A6704

Detail POWER AMP 4 CHANNEL PIONEER GM-A6704

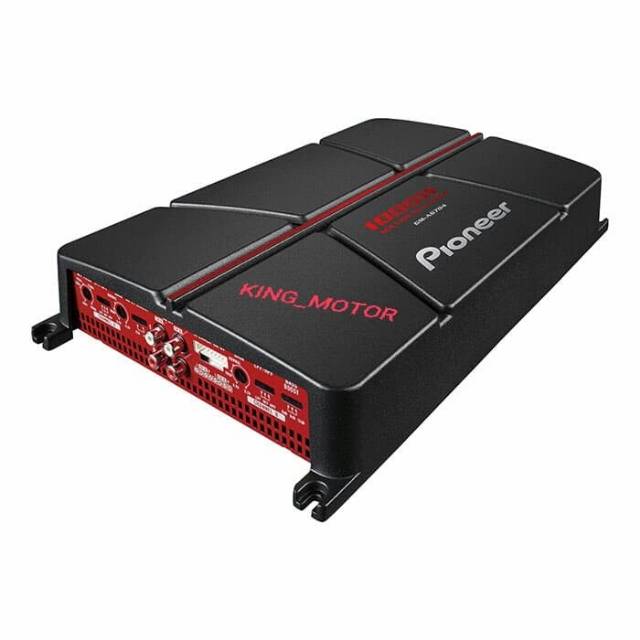

PIONEER GM-A6704

Garansi Resmi 1 Tahun Pioneer IND
(PT.Gema Suara Adhitama)

Specification :
Class-AB FullRange 2-Ohm Stable 4-Channel Amplifier
RMS Power Rating :
4 Ohms : 60 W x 4 Ch
2 Ohms : 95 W x 4 Ch
Bridged (4 Ohm): 190 W x 2 Ch
Max Power Output : 1000 W
CEA-2006 Compliant Amplifier
Pulse Width Modulated MOSFET Power Supply
Balanced Isolator Input Circuit
LED Power (On) and Protect (Off) Indicators
Soft Start Turn-On
4, 3 or 2 Channel Operation
Speaker-Level (High-Level) Inputs with Signal Sensing Turn-On
3-way Protection Circuitry (Thermal, Overload, and Speaker Short Protection)
Heavy Duty Aluminum Alloy Heat-Sink for Extreme Heat Dissipation
Input Sensitivity :
Low Level : 300mV - 6.5V
High Level : 3V - 26V
Frequency Response : 10 - 70,000 Hz
Total Harmonic Distortion (THD) : 0.05%
Signal to Noise Ration : 95 dB
Selectable Crossover Modes (Ch A&B) : LPF / OFF / HPF
Crossover Frequency Ch A : 80hz, 12 dB/octave
Variable Crossover Frequency (Ch B) : 40 - 500 Hz, 12 dB/octave
Variable Bass Boost (Ch B) : 0 to +12 dB Bass Boost at 50 Hz
4 Gauge Power and Ground Wiring is Recommended for Installation
Dimensions : 13-3/4"W x 8-1/2"L x 2-3/8"H

Gambar produk
