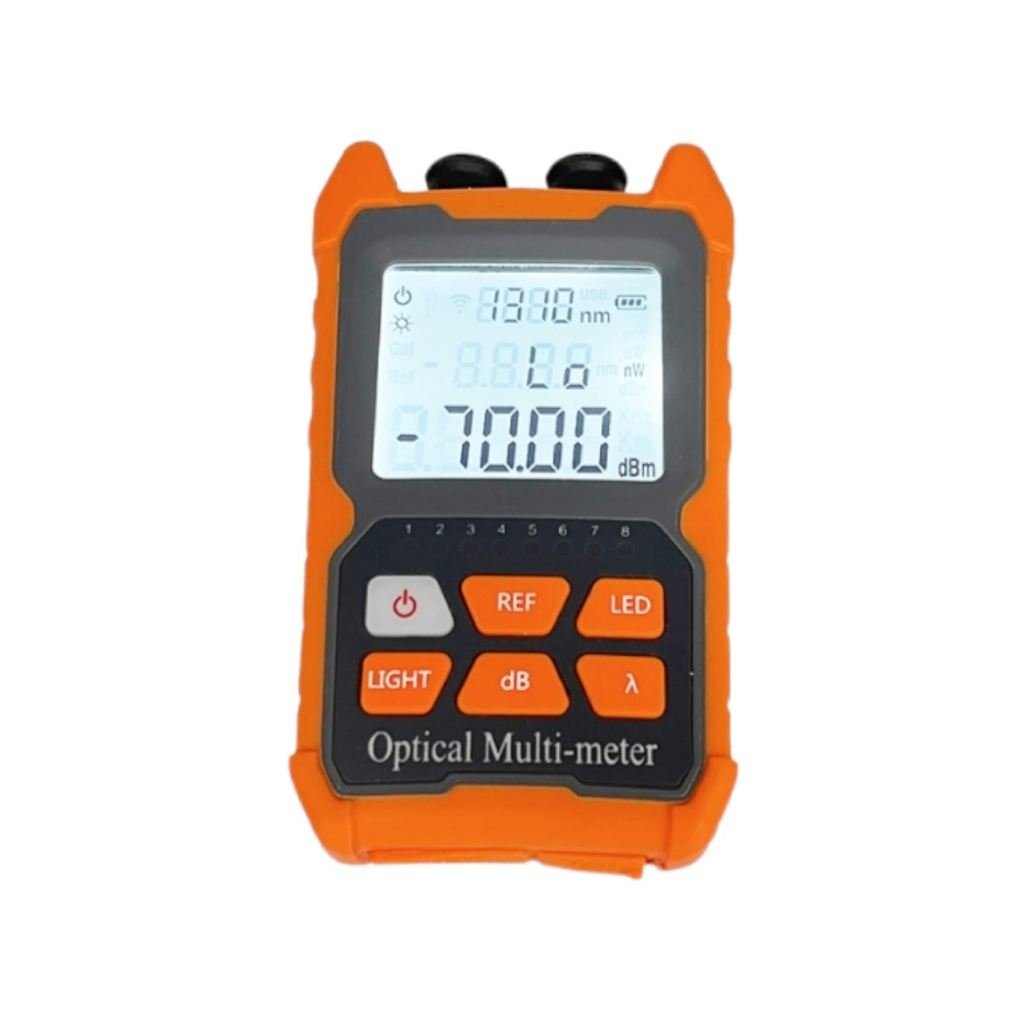

opm New allinone Handheld Mini Optical Power Meter

Detail opm New allinone Handheld Mini Optical Power Meter

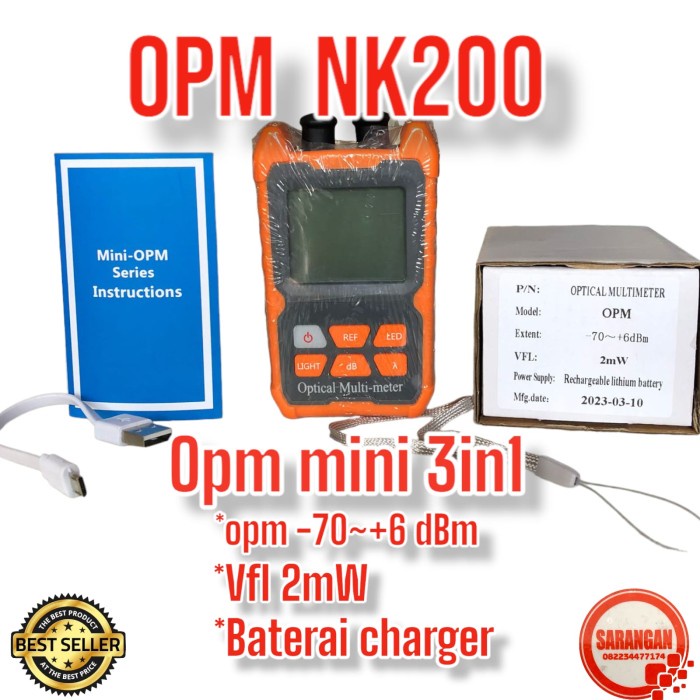

NK200 New all-in one

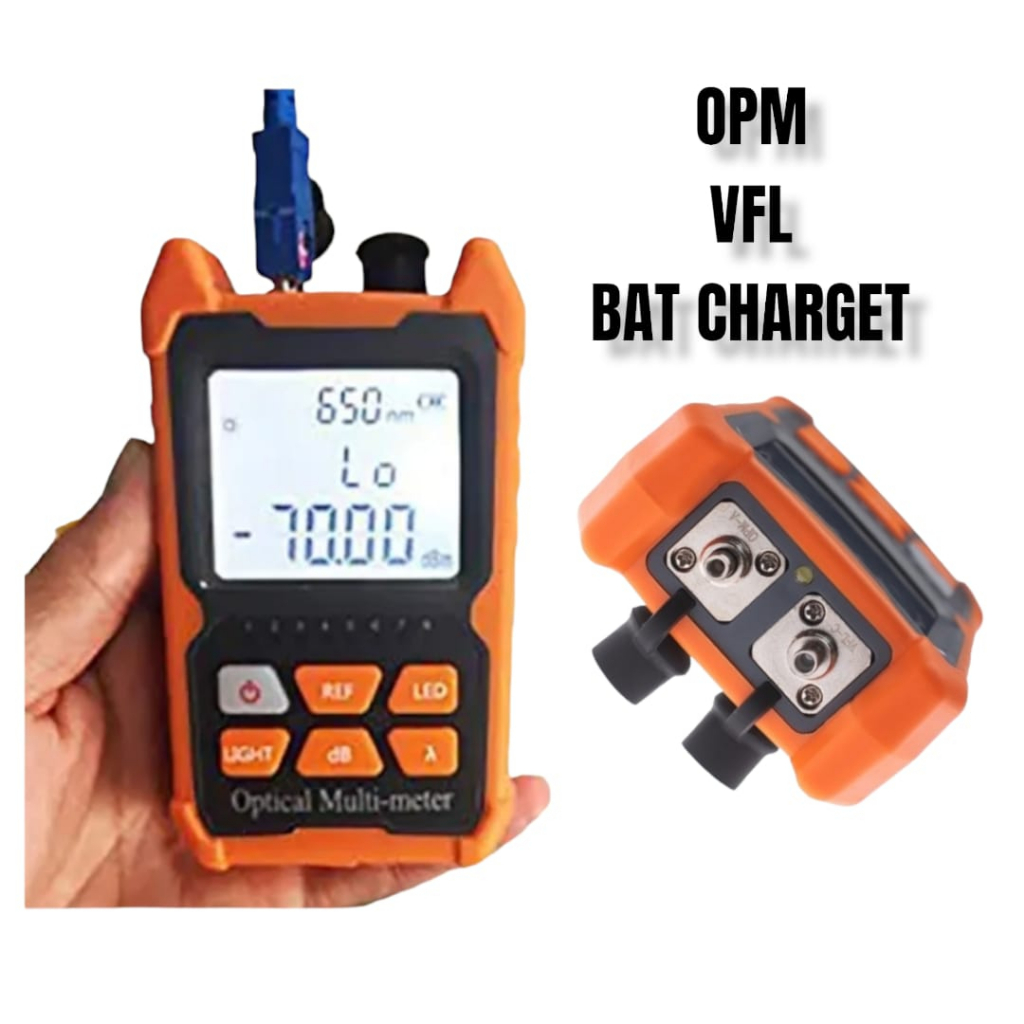

70~+6dBm Handheld Mini Optical Power Meter with 2mw VFL and Rechargeable mini OPM
1.Support lighting and backlight switch
2. Support automatic shutdown
3. Supporting Wavelength Memory Function
4. Support frequency identification (optional)
5. Support user calibration
6. Supporting red constant and scintillation (optional)
7. Supporting SC/FC/ST Interface
8. Supporting external power supply such as charging treasure, computer, etc.
9. Supporting simultaneous linear (mW) and non-linear (dBm) display
10.Changing, work 72 hours (OPM Function)
Wavelength range(nm) 800-1700
Connector FC/SC/ST
Type of connector InGaAs
Power measurement range(dBm) -70~+6
Uncertainty ±5%
Standard wavelength (nm) 850,980,1300,1310,1490,1550,1625,1650
Display resolution
Linear display: 0.1% logarithmic display: 0.01 dBm 650nm light source (Options) 20mw
Operating temperature (C) -10~+60
Storage temperature (C) -30~+70
Automatic shutdown time (min) 10
Continuous working hours of batteries (h) ≥72
Instrument size (mm) 112x66x30
Power Supply Rechargeable Lithium Batteries
Instrument Net Weight :140/150 (g)
