EDFA WDM 16X23 HIGH POWER OPTIC AMPLIFIER CATV

Detail EDFA WDM 16X23 HIGH POWER OPTIC AMPLIFIER CATV

Deskripsi Produk
- Kipas 4buah
- 16 Port edfa sc apc dan 16 port wdm
- Double Power suplly
- Operating bandwidth nm 1545 - 1560
- Optical input power dBm -3 - +10 range
- optical switching time ≤ 5ms
- Maks optical output power 23 dBm
- Output power stability ±0.5dBm
- Noise figure dB ≤ 6.0
- Remark imput power 0dBm λ=1550nm power
- Return loss input ≥ 45 dan Output dB ≥ 45
- PONvto COM port insertion loss ≤ 1.0 dBm
- Optical Connector type SC/APC SC /UPC
- C/N dB ≥ 50 dB
- C/CTB dB ≥ 63 dB
- C/CSO dB ≥ 63 dB
Remark : Test condition according tp GT/T 185-2002
- Power supply voltage A:AC100V-260V (50Hz-60Hz) B: DC48V C : DC 12V
- Operating temperature °C -10 - +42 range
- Maximum relative humidity operating % Max 95% no condensation
- Storage temperature range °C -30 - +70
- Maximum relative humidity dan storage Max 95% no condensation

Aplication
- Single mode fiber 1550 amplification network
- FTTH network
- CATV network
- Perf characteristics : SNMP network management

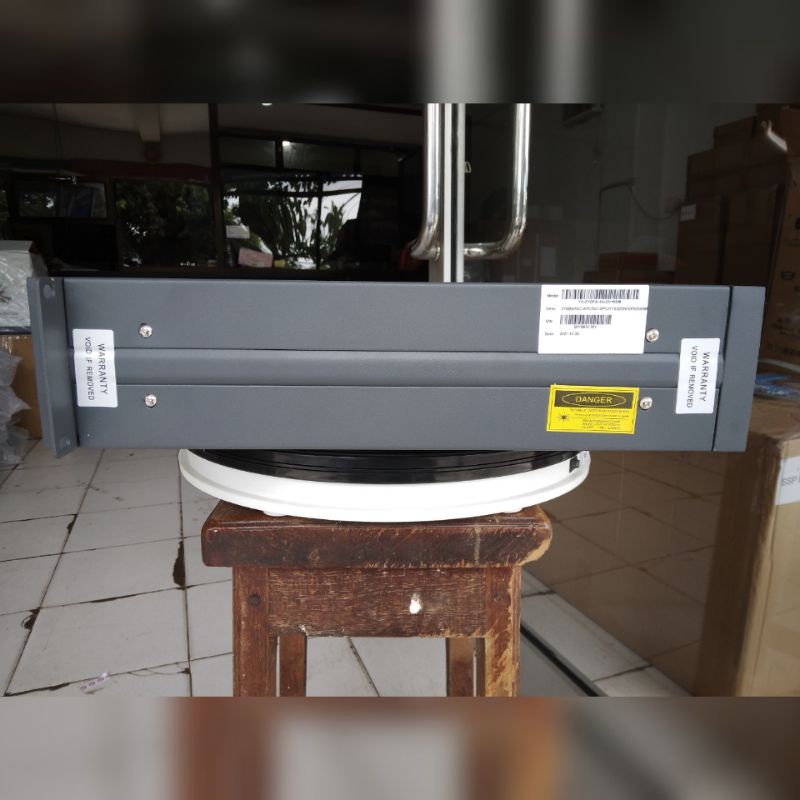

Gambar produk
