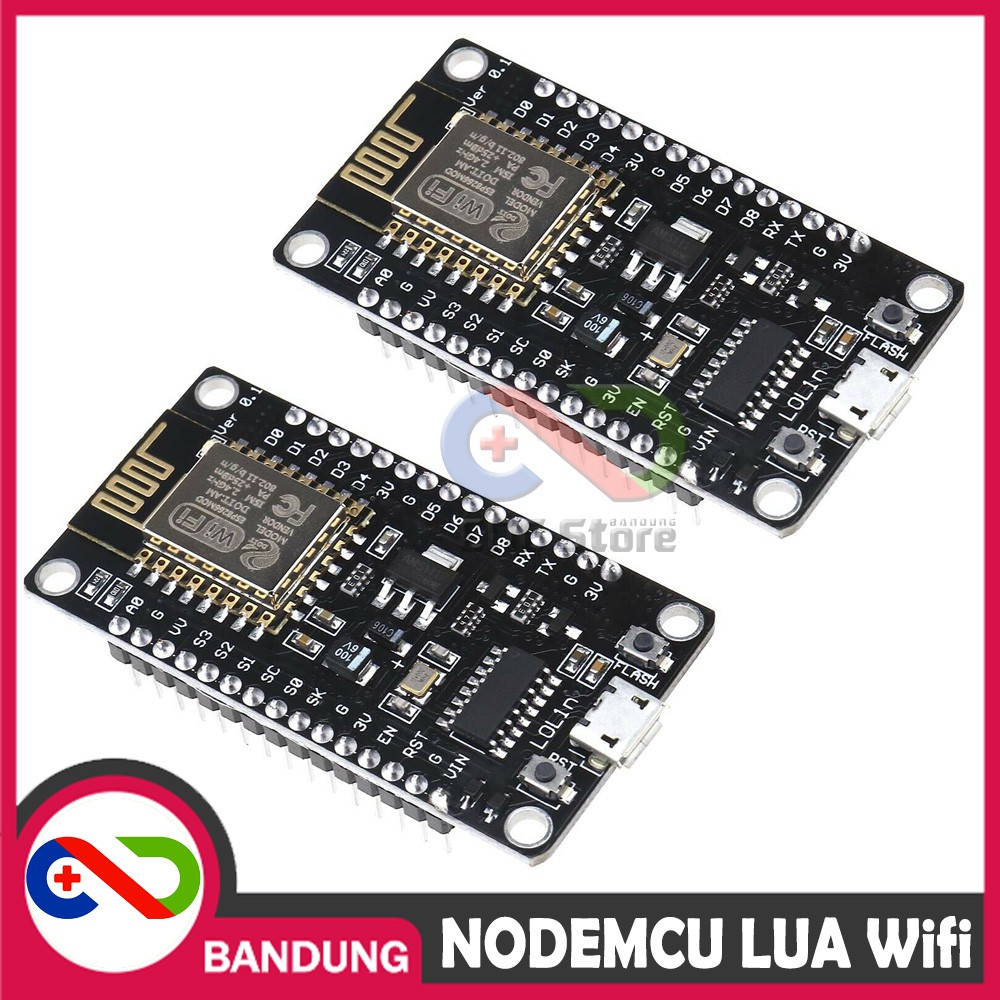

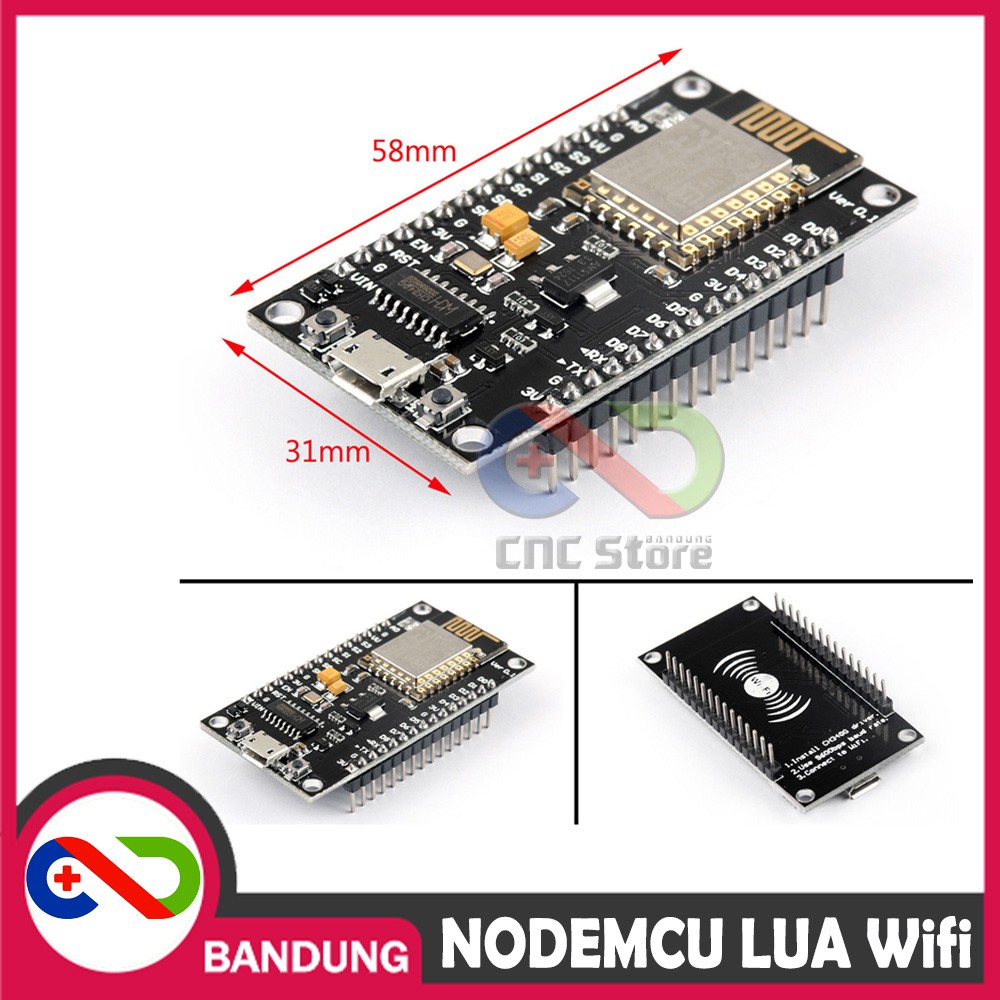

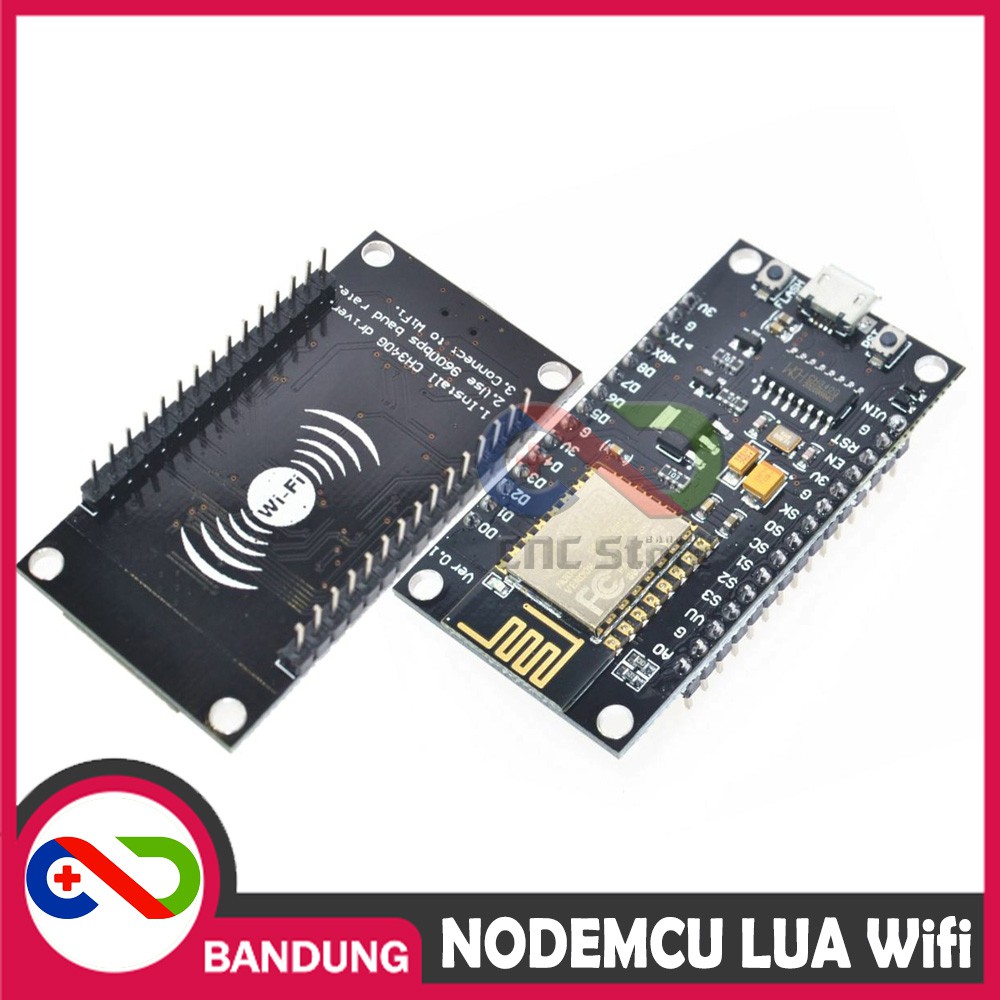

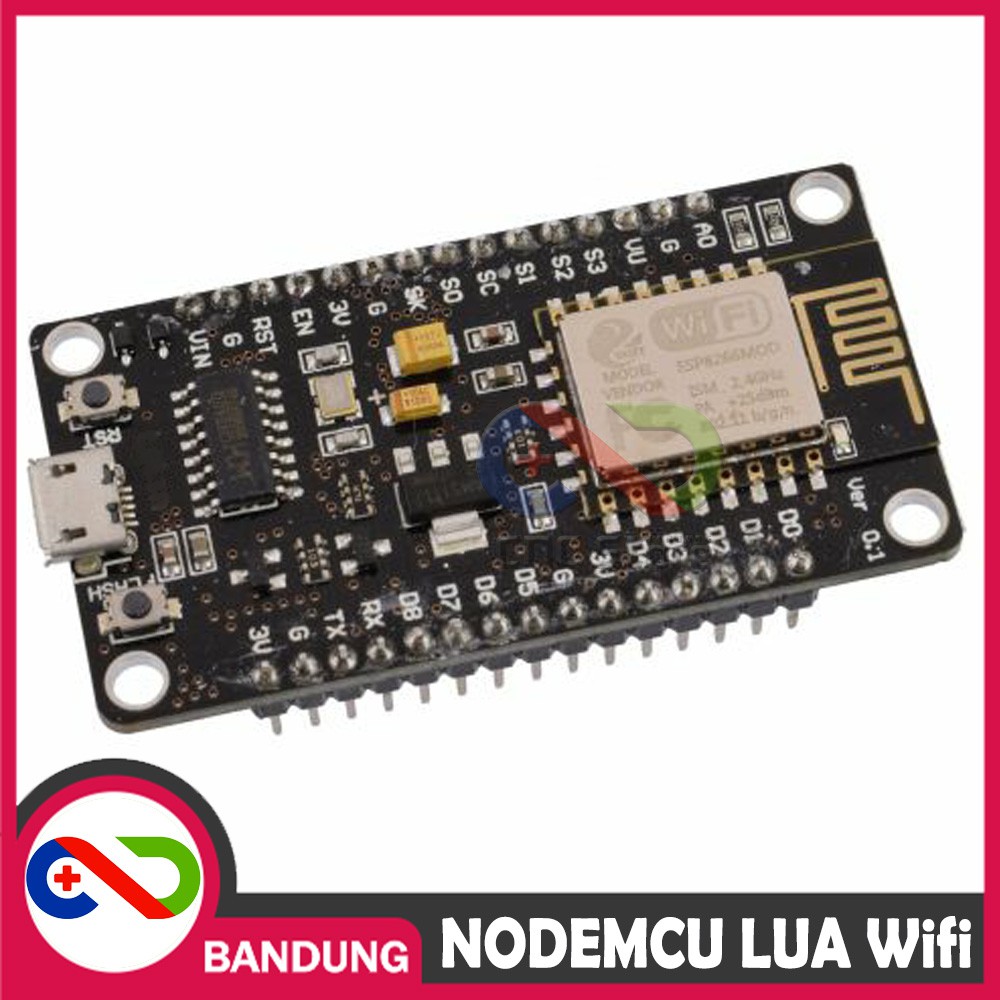

NODEMCU LUA WIFI V3 4MB 32MBITS CH340 FLASH ESP8266 ESP12 BOARD

Detail NODEMCU LUA WIFI V3 4MB 32MBITS CH340 FLASH ESP8266 ESP12 BOARD

ESP-0008
========
CATATAN PENTING!!
UNTUK ARDUINO ATAU MIKROKONTROLER BER-IC KOMUNIKASI CH340, TIDAK SUPPORT WINDOWS 11 DAN ARDUINODROID.

Deskripsi :
=================================
Hallo,,, !!! slamat datang di lapak/toko kita "CNC STORE BANDUNG" :-)

Board LOLIN ini ukurannya lebih besar dari yang versi DOIT!

Bord ini merupakan board yang dapai kita pakai untuk berbagai projek IOT, Board ini merupakan versi ke-3 (V3) dimana lebih setabil dari versi-versi sebelumnya tentunya.

Untuk pemrogramannya sendiri tentu bisa kita perogram melalui aplikasi IDE arduino. tutorialnya seabrek go google gan,, :-)

New Version NodeMcu Lua ESP8266 WIFI Internet Development Board Latest Firmware. The Development Kit based on ESP8266, integates GPIO, PWM, IIC, 1-
Wire and ADC all in one board. Power your development in the fastest way combining with NodeMCU Firmware!

Spesifikasi :
=================================
- Uses CH340G instead of CP2102.
- NodeMCU has built-in USB-TTL serial with super reliable industrial strength CH340G for superior stability on all supported platforms.
- Communication interface voltage: 3.3V.
- Antenna type: Built-in PCB antenna is available.
- Wireless 802.11 b/g/n standard
- WiFi at 2.4GHz, support WPA / WPA2 security mode
- Support STA/AP/STA + AP three operating modes
- Built-in TCP/IP protocol stack to support multiple TCP Client connections (5 MAX)
- D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc., port driver capability 15mA
- AD0: 1 channel ADC
- Power input: 4.5V ~ 9V (10VMAX), USB-powered
- Current: continuous transmission: 70mA (200mA MAX), Standby: 200uA
- Transfer rate: 110-460800bps
- Support UART / GPIO data communication interface
- Remote firmware upgrade (OTA)
- Support Smart Link Smart Networking
- Working temperature: -40 ~ + 125
- Drive Type: Dual high-power H-bridge driver
-- Flash size: 4MByte

Kabel Data produk tersebut :

https://shopee.co.id/product/62956347/6911263163/

Paket :
=================================
- 1x NODEMCU LUA WIFI V3 4MB 32MBITS CH340 FLASH ESP8266 ESP12 NODE MCU BOARD
