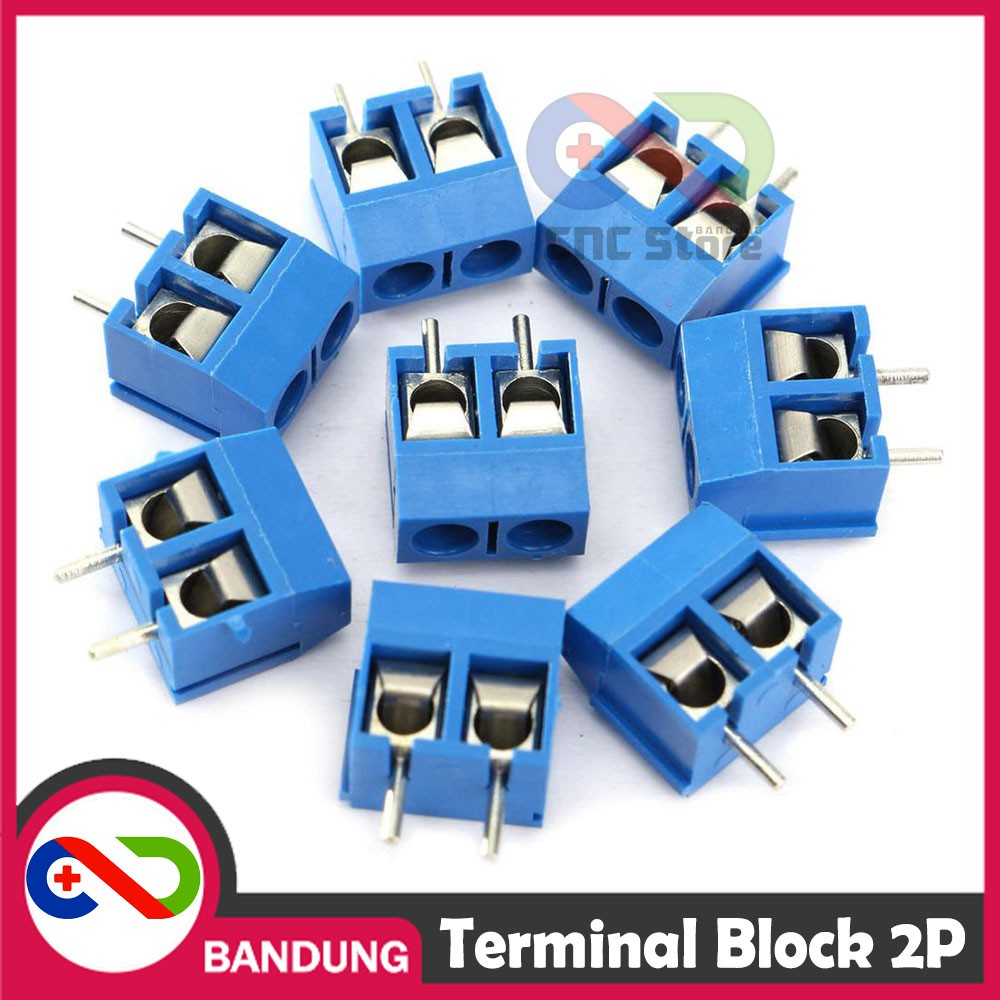

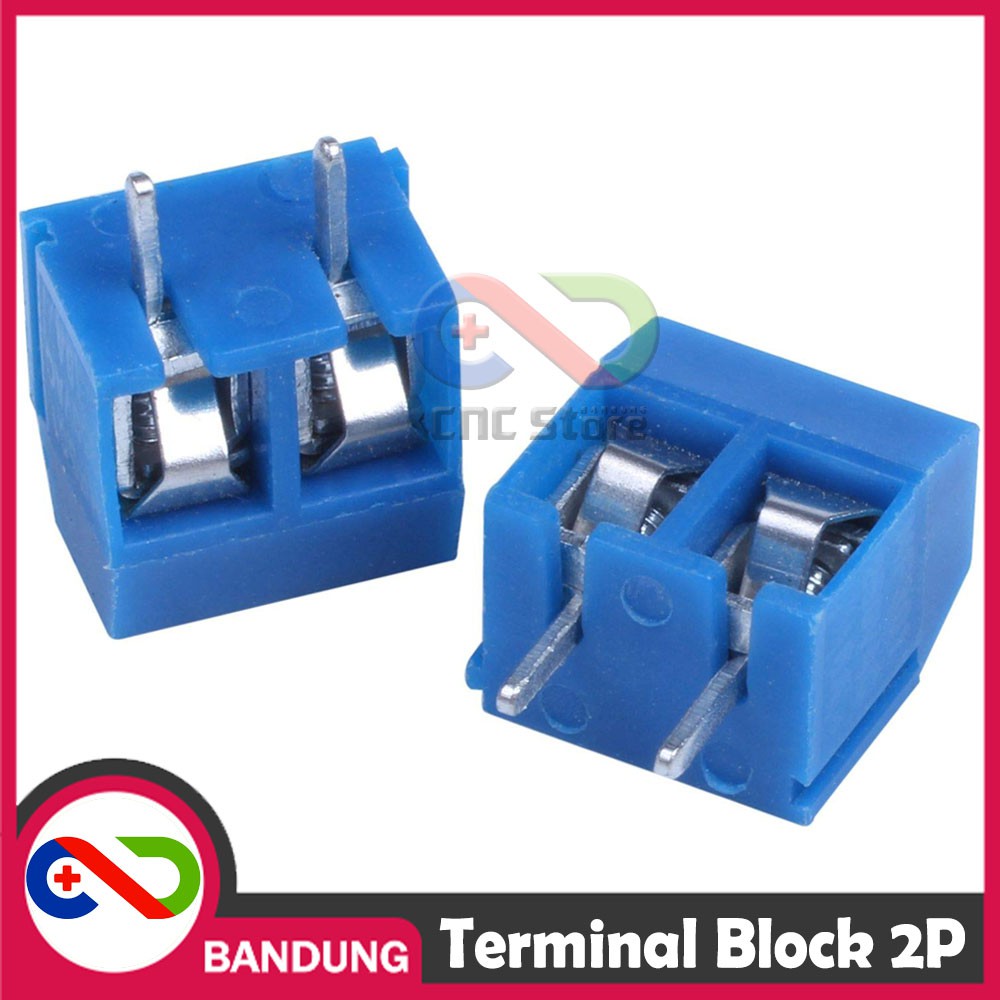

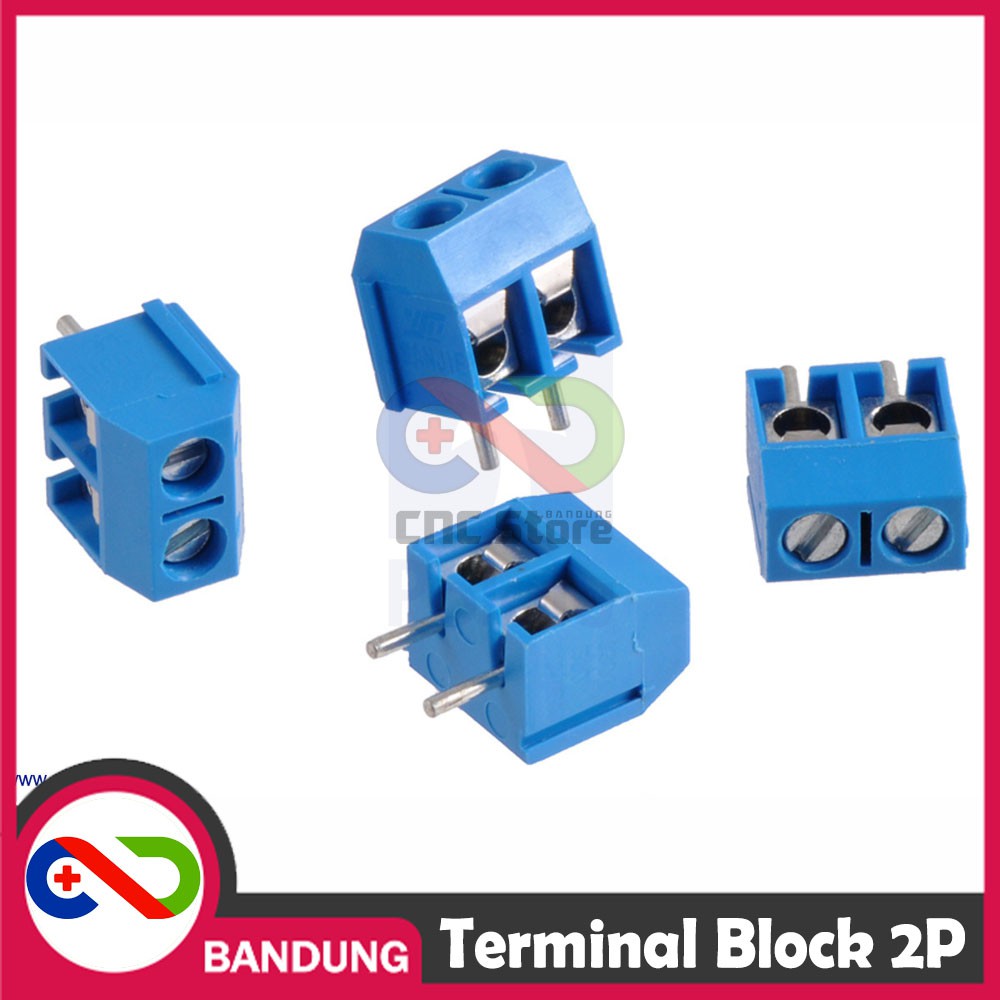

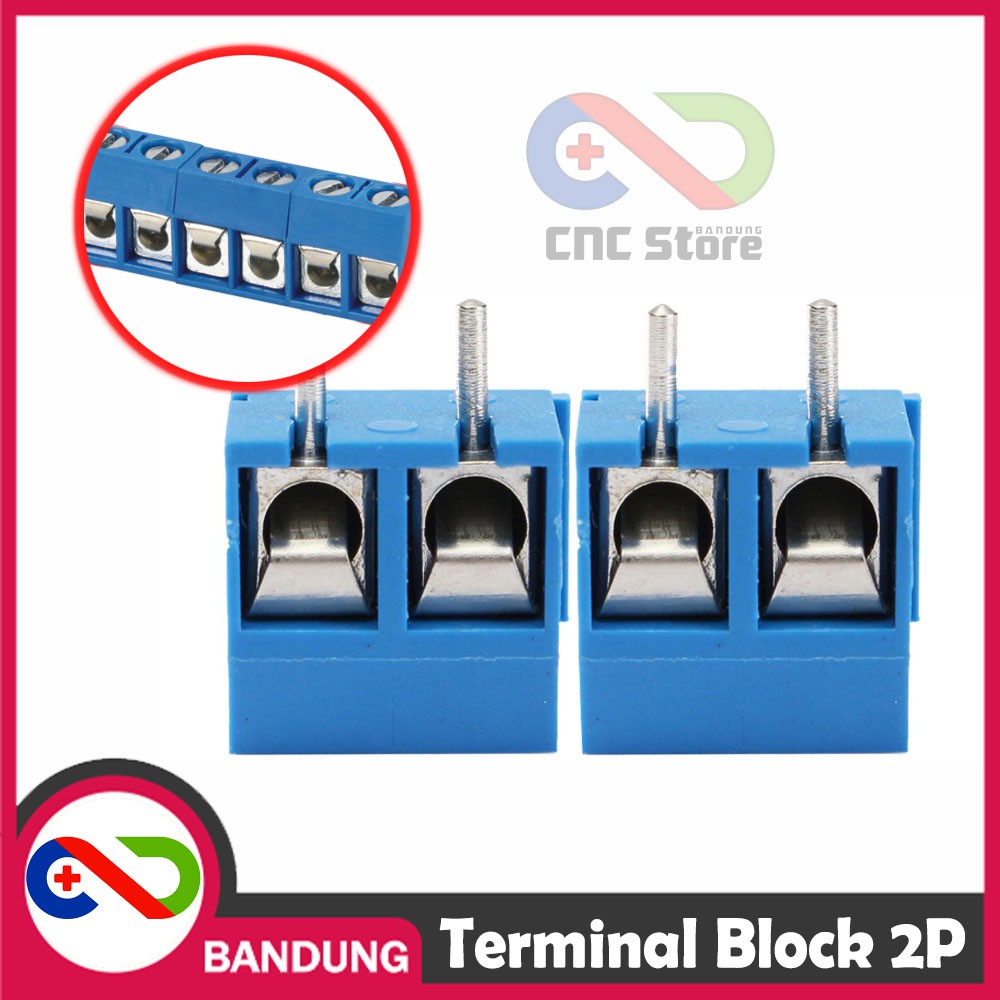

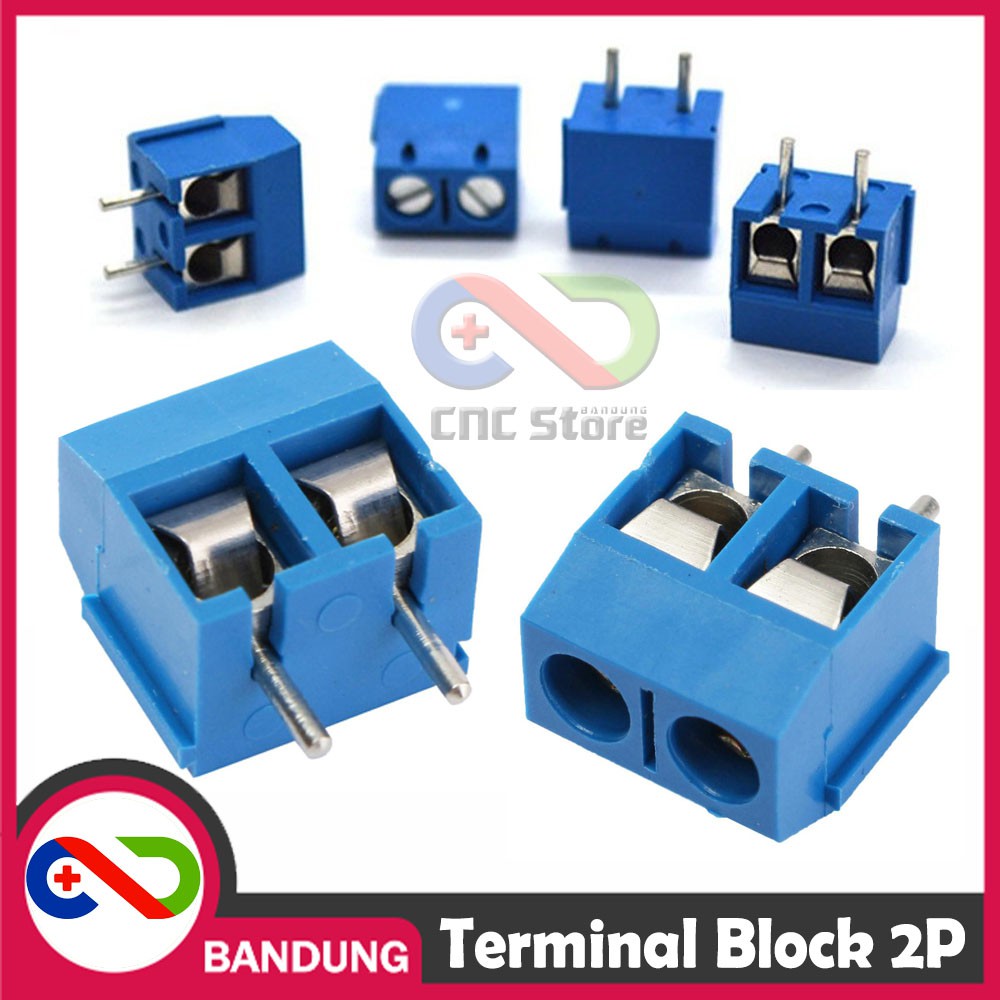

TERMINAL PCB BLOCK SCREW 2 PIN KF301-2P BLUE BIRU

Detail TERMINAL PCB BLOCK SCREW 2 PIN KF301-2P BLUE BIRU

CON-0008
=========

Deskripsi:
=================================
Terminal PCB block 2 pin. Digunakan sebagai port input atau output di PCB. Terminal ini sangat sering sekali digunakan, karena memudahkan kita untuk memasang dan membuka I/O tanpa perlu soket ataupun menyoldernya

Silahkan di ORDER gan !!!! :D

Spesifications:
=================================
- Type : Terminal Blocks
- Maximum Current Rating : 15A
- Contact Plating : Tin/Zinc
- Body Orientation : Straight
- Contact Material : Brass/Steel
- Housing Material : Thermoplastic
- Housing Color : Blue
- Wire Size : 14-22AWG
- Number of Contacts : 2
- Number of Rows : 1
- Maximum Voltage Rating : 300VAC
- Minimum Operating Temperature : -30C
- Maximum Operating Temperature : 105C
- Mounting : Through Hole
- Termination Method : Solderable
- Pitch : 5.08mm
- Product Depth : 9mm
- Product Height : 13mm
- Product Length : 10.86mm
- Product Type : Connector Terminal Blocks

PRODUK TERKAIT
=================
- Untuk aneka terminal PCB lain, pin header, breadboard, maupun jumper, bisa dicek di etalase ini :
https://shopee.co.id/shop/62956347/search?page=0&shopCollection=19513230


Paket :
=================================
- 1x TERMINAL PCB BLOCK SCREW 2 PIN KF301-2P BLUE BIRU

UNTUK HARGA GROSIR CHAT US ^^

Gambar produk
