Mtherboard Gigabyte H81M-DS2 LGA 1150 Garansi Resmi 3 Tahun Murah

Detail Mtherboard Gigabyte H81M-DS2 LGA 1150 Garansi Resmi 3 Tahun Murah

Motherboard Gigabyte H81M-DS2 LGA 1150 Garansi Resmi 3 Tahun Murah

Spesifikasi :
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
L3 cache varies with CPU

Chipset
Intel® H81 Express Chipset

Spesifikasi
Prosesor
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel® H81 Express Chipset
Memori
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Kartu Grafis Terintegrasi
Integrated Graphics Processor - Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200
Maximum shared memory of 1 GB
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Slot Tambahan

1 x PCI Express x16 slot, running at x16

2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 2.0 standard.)
Antarmuka Penyimpanan

Chipset:
2 x SATA 6Gb/s connectors (SATA3 0/1)
2 x SATA 3Gb/s connectors (SATA2 2/3)

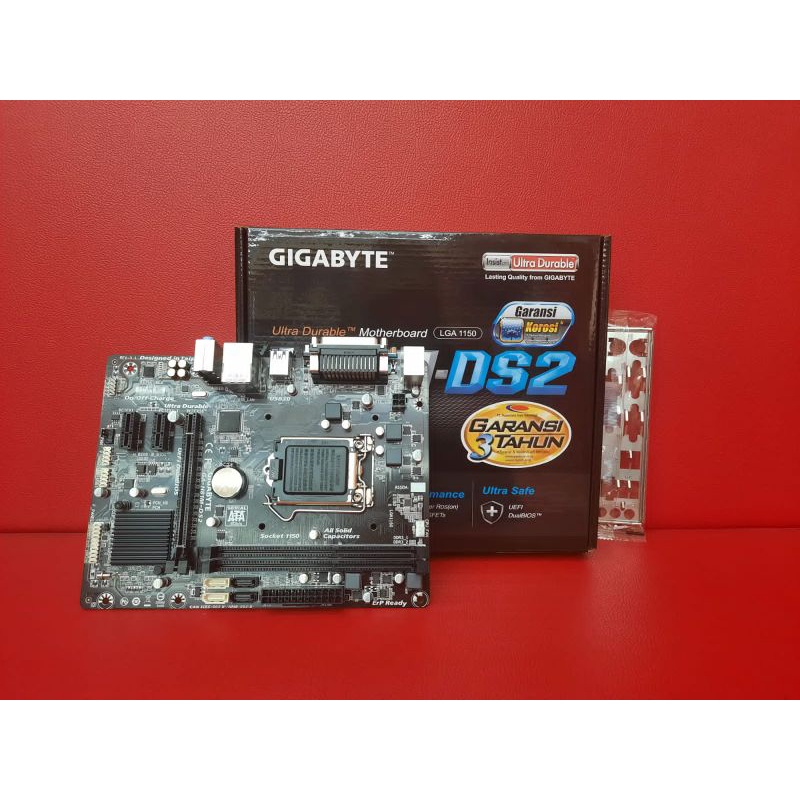

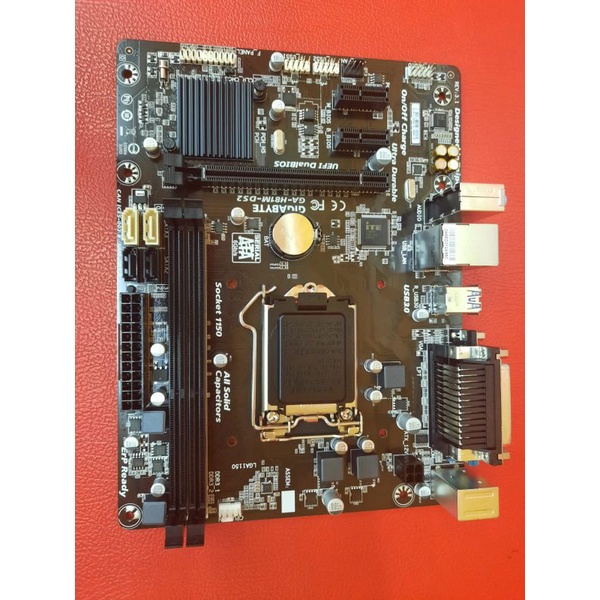

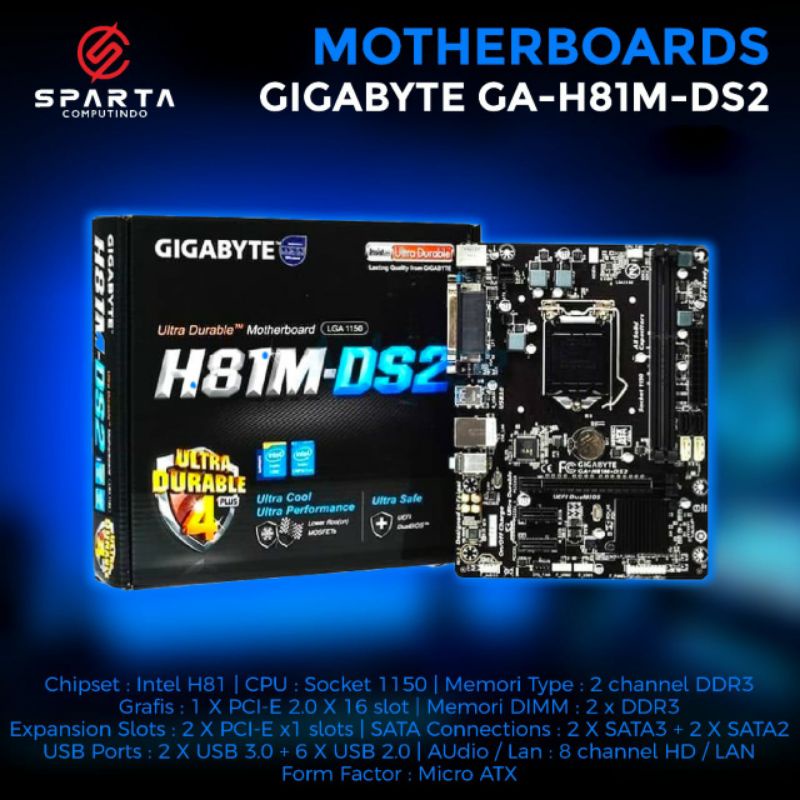

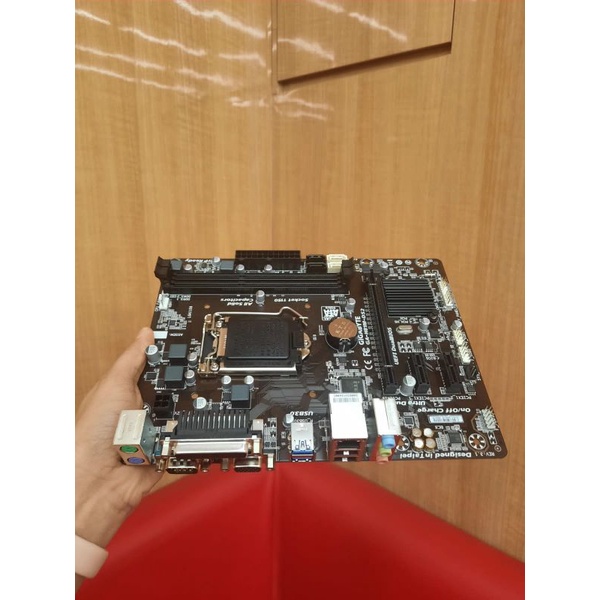

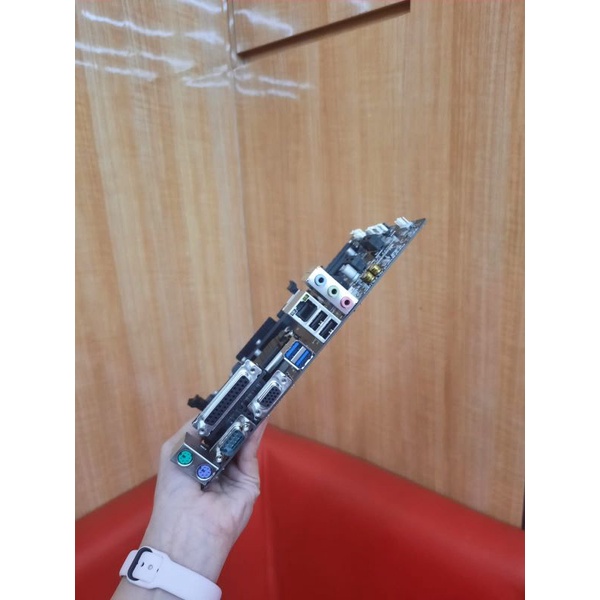

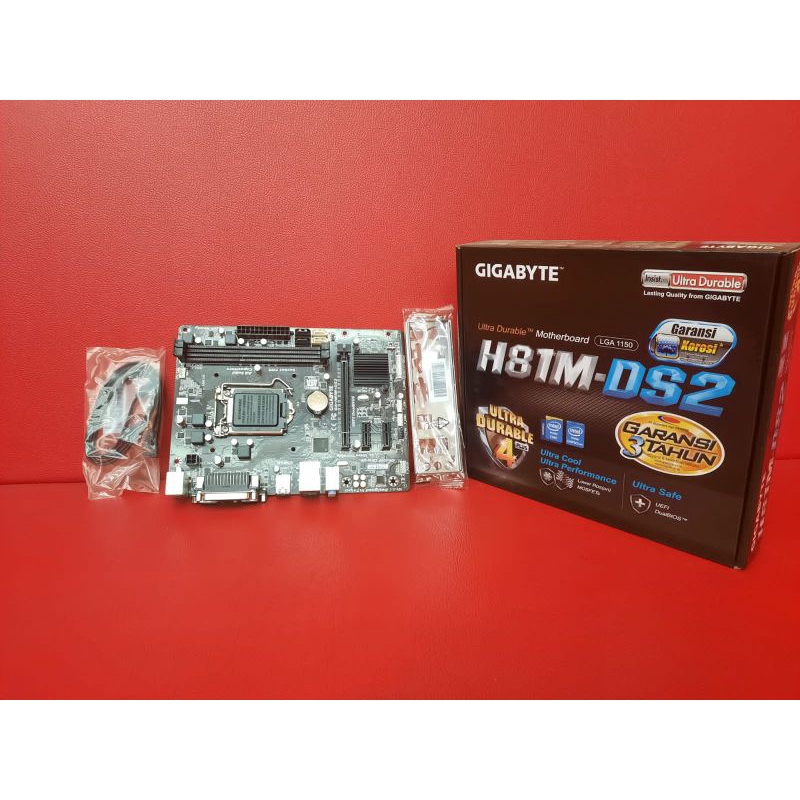

Gambar produk
