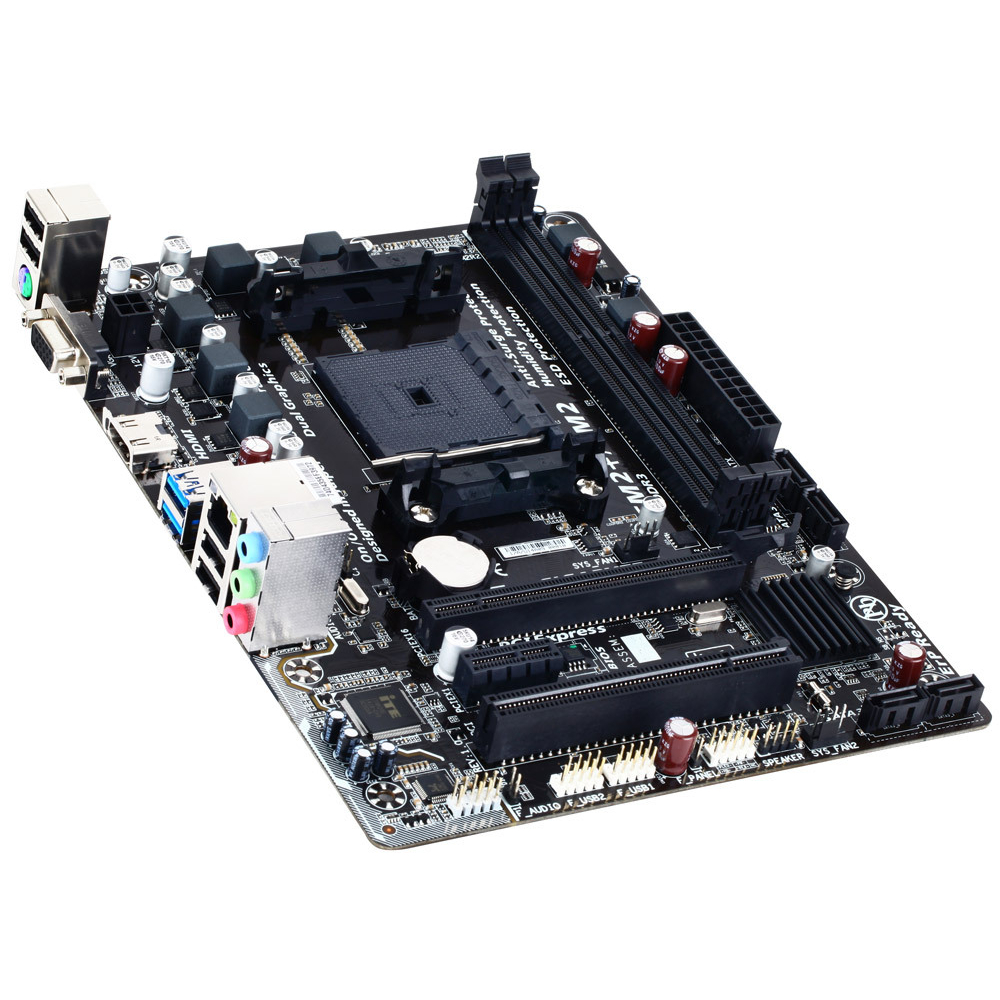

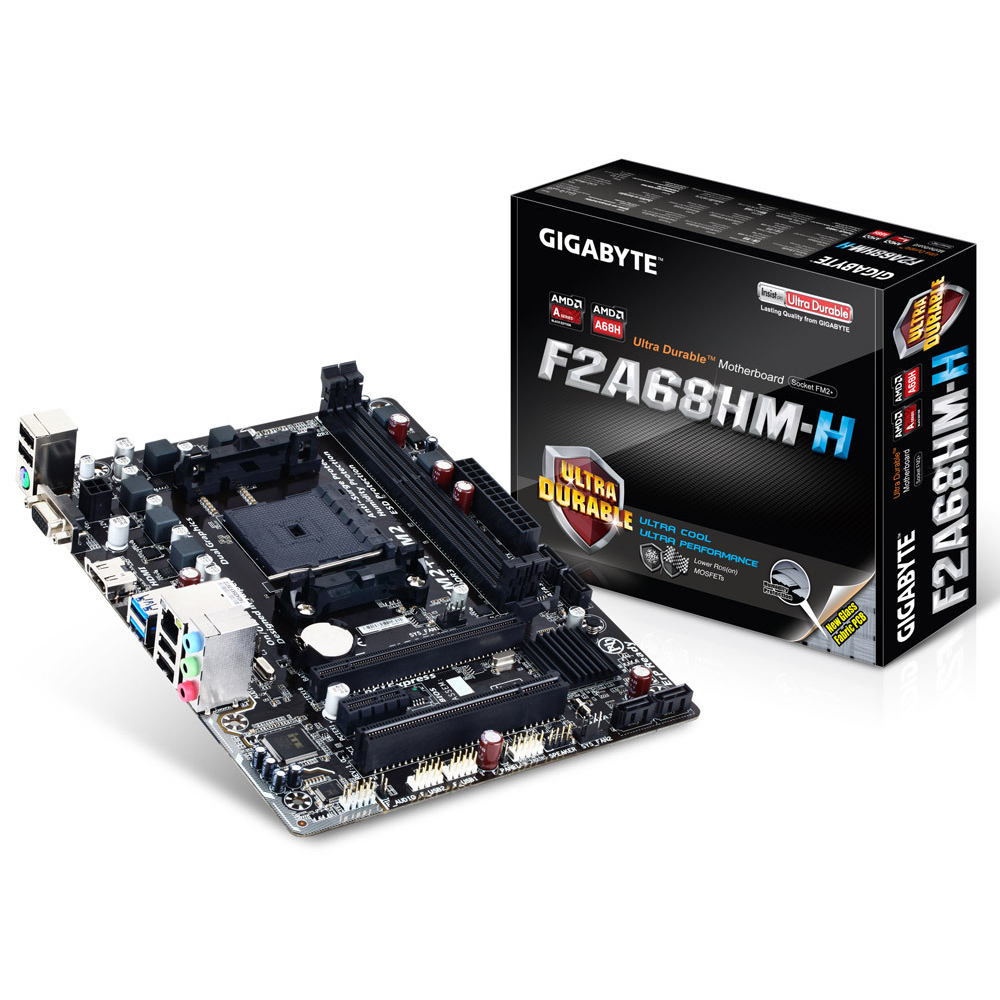

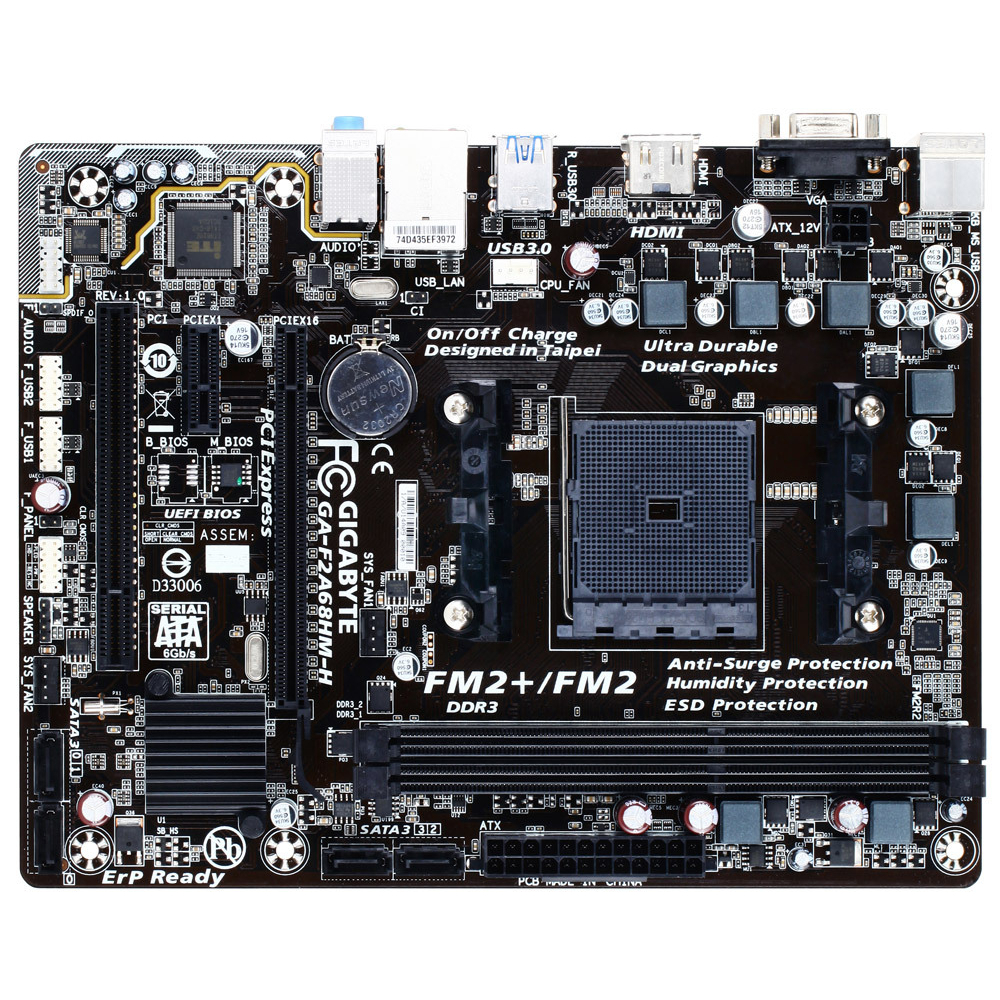

Gigabyte GA-F2A68HM-H Motherboard Amd Socket FM2+/FM2 DDR3 SATA USB 3.0 HDMI VGA

Detail Gigabyte GA-F2A68HM-H Motherboard Amd Socket FM2+/FM2 DDR3 SATA USB 3.0 HDMI VGA

Garansi Resmi

Socket FM2+ supports AMD FM2+/FM2 A-series APU

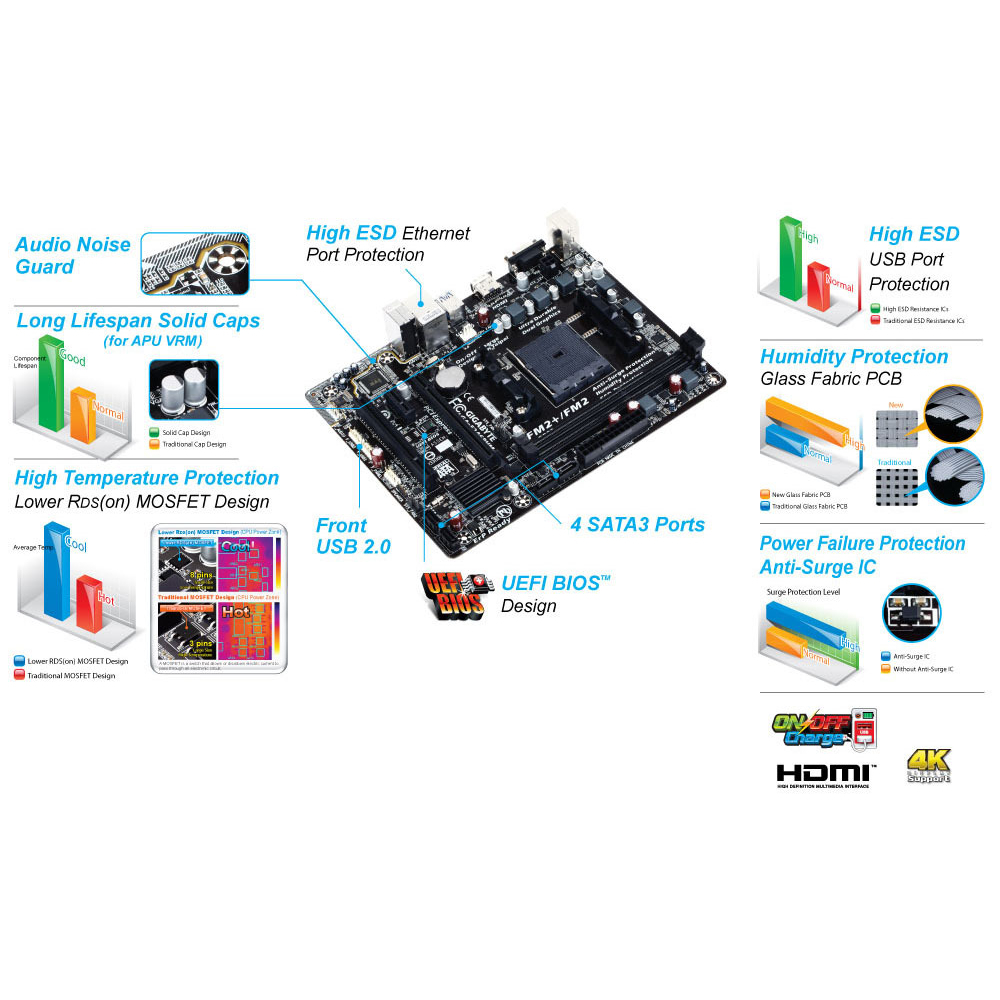

GIGABYTE Ultra Durable™ Technology
Dedicated audio hardware zone with Audio Noise Guard design
HDMI 1.4, D-sub ports for multi-display support
Native USB 3.0 and SATA3 ports with RAID support
GIGABYTE UEFI BIOS
GIGABYTE On/Off Charge™ for USB devices
Solid capacitors for APU VRM design


FM2+ Socket:
AMD A series processors
AMD Athlon™ series processors

Chipset
AMD A68H

Memori
2 x DDR3 DIMM sockets supporting up to 64 GB of system memory
Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules
Support for AMD Memory Profile (AMP)/ Extreme Memory Profile (XMP) memory modules

Kartu Grafis Terintegrasi
1 x D-Sub port, supporting a maximum resolution of 1920x1200
1 x HDMI port, supporting a maximum resolution of 4096x2160

Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)

Antarmuka Penyimpanan
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 10, and JBOD

USB

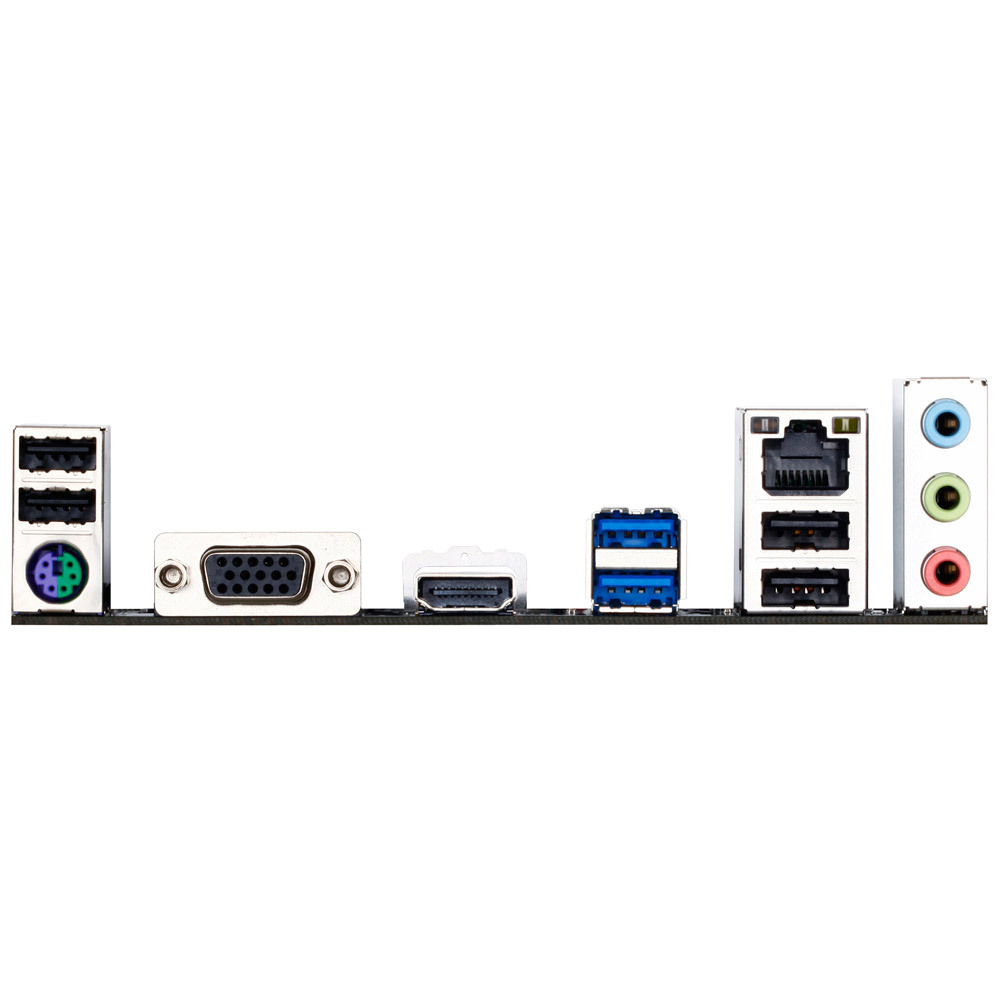

2 x USB 3.0/2.0 ports on the back panel
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Gambar produk
