MSI MEG CORELIQUID S280 [AiO LIQUID COOLING]

Detail MSI MEG CORELIQUID S280 [AiO LIQUID COOLING]

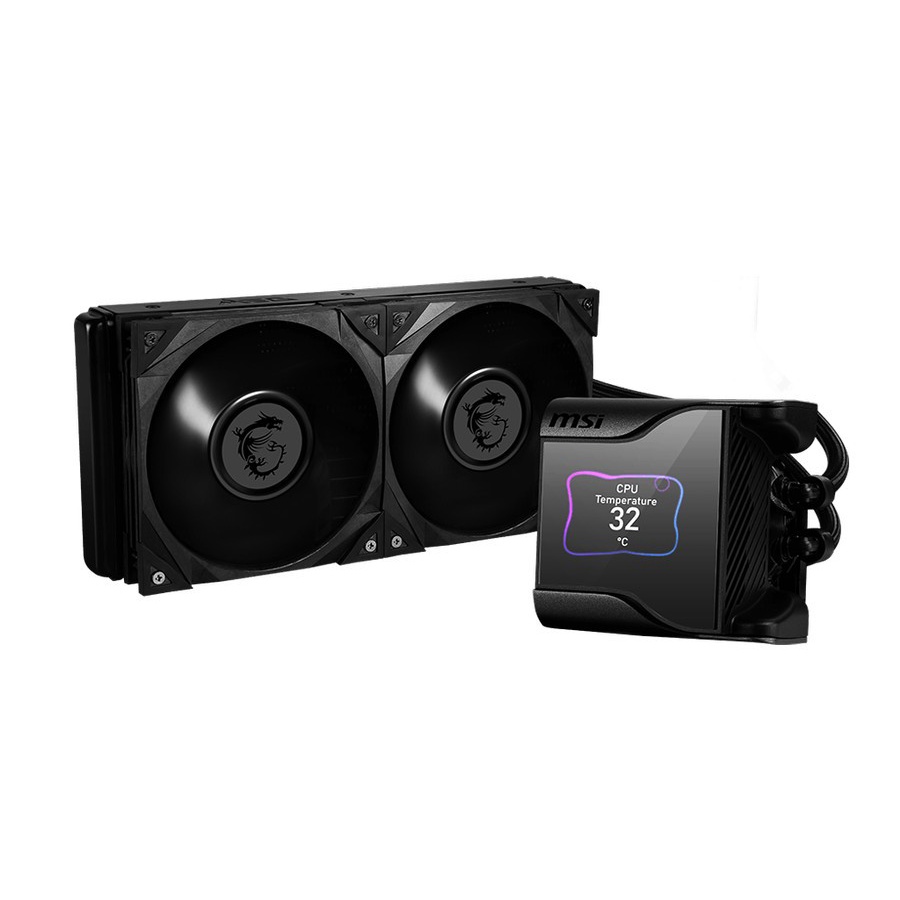

MEG CORELIQUID S280

MSI’S MEG SILENT GALE P14 provides sufficient airflow to the radiator for cooling while maintaining low noise levels.
A 60mm fan is placed within the water block to help dissipate heat for the M.2 SSD, CPU VRMs, and surrounding components.
The MEG SILENT GALE P14 and the water block fan support 0% RPM to ensure zero noise under low temperatures.
The MEG CORELIQUID S Series comes with a 2.4” IPS display capable of displaying hardware information, GIF, MP4, photos, texts, and live weather information.
The MEG CORELIQUID S Series liquid cooler provides out of box support for LGA 1700.

Fan info
Number of Fans 2
Fan Dimensions 140 x 140 x 25mm / 5.51 x 5.51 x 0.98 inches
Fan Speed 0 ~ 1800 RPM
Fan Lighting NA
Fan Air Flow 82.27 CFM
Fan Noise Level 24.9 dBA
Fan Air Pressure 2.2 mm-H2O
Fan Bearing Hydro-Dynamic Bearing (HDB)
Fan Life Expectancy 50,000 hours, 40oC
Fan Rated Current 0.5 A (Max)
Fan Power Consumption 6 W (Max)
PWM Mode Yes
Cable Length (PWM cable) 350mm; 13.78 inches
ARGB Cable Connector NA

Radiator Info
Radiator Material Aluminum
Radiator Dimensions (W x D x H) 314.8 x 140 x 27mm / 12.39 x 5.51 x 1.06 inches
Cold Plate Material Copper
Water Cooling Pipe Material Black Rubber + Mesh
Water Cooling Pipe Length 400mm / 15.75 inches

Pump/Block Info
Block Dimensions (W x D x H) 95 x 95 x 54 mm
Panel Size 2.4”
Panel Type IPS
Panel Resolution 320 x 240
Panel Color bit 16 bits
Panel Brightness 500 nits
Pump Life Expectancy 50,000 hours
Pump Noise Level 21.2 dBA
Pump Load Current 0.33 A
Pump Power Consumption 4 W
Pump Speed PWM controlled; 100% duty cycle w/ 2800 +/-300 RPM
SATA Power Cable 650mm x 1
USB 2.0 Cable 750mm x 1
Radiator Fan Cable 400mm x 1
Pump / CPU Fan Cable 400mm x 1

Socket Info
Intel Socket LGA 1150/1151/1155/1156/1200/1700
LGA 2011/2011-3/2066
AMD Socket AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/
