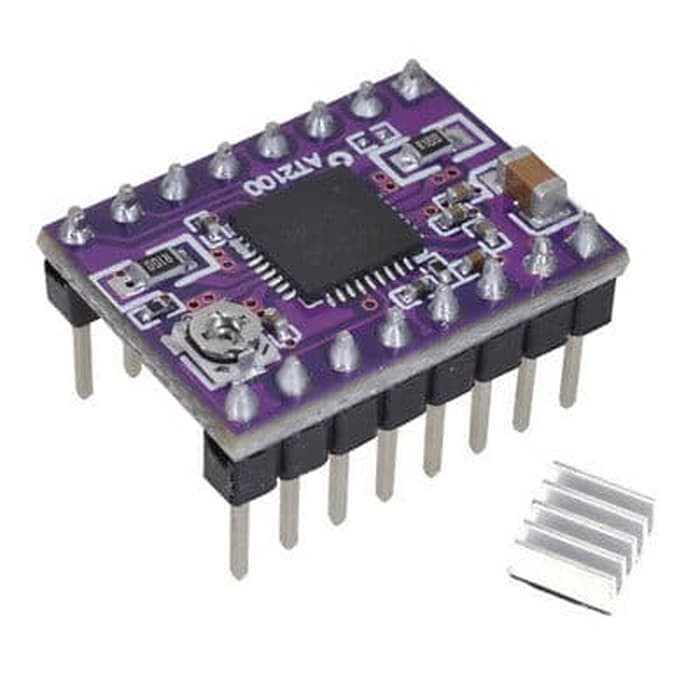

AT2100 Stepper Motor Driver Module 3D Printer CNC Competible TMC2208

Detail AT2100 Stepper Motor Driver Module 3D Printer CNC Competible TMC2208

Include Heatsink

Features:
1. Two-phase four-wire bipolar stepper motor drive
2. Low on-resistance RDS(ON), 2.5A peaks current output
3. Simple STEP/DIR interface, up to 16 segments
4. Support insert subdivision function, automatic interpolation to 256 subdivision
5. Support voltage attenuation, ultra-quiet work, more rounded motion
6. Support mixed current attenuation, high torque output
7. Support built-in current detection function, eliminating external current-sense resistor
8. Support semi-flow locking function
9. Compatible with 3.3V and 5V logic levels
10. Support thermal shutdown function
11. Support output overcurrent protection

1.AT2100 is an easy-to-use intelligent stepper motor driver with integrated decoder. Its output drive capability is up to 32V ±2.5A, it supports up to 16 subdivisions, and supports interpolation subdivision work function. AT2100 supports voltage Attenuation, making it completely silent, while supporting mixed current attenuation, providing high torque output.
2. The decoder is the key to the easy implementation of the AT2100. By simply inputting a pulse through STEP, the motor can be stepped once, eliminating the phase sequence table, high frequency control line and complex programming interface. This makes it more suitable. In the absence of a complicated microprocessor or microprocessor overburdened.
5. Internal protection circuit includes: with hysteresis overheat protection, undervoltage lockout and overcurrent protection.

Applications:
1. Automated office equipment such as printers and scanners
2.3D printer
3. Game machines, robots, medical equipment
4. Security, ATM
