Motherboard Hose Stone H110 DDR4 Socket LGA 1151

Detail Motherboard Hose Stone H110 DDR4 Socket LGA 1151

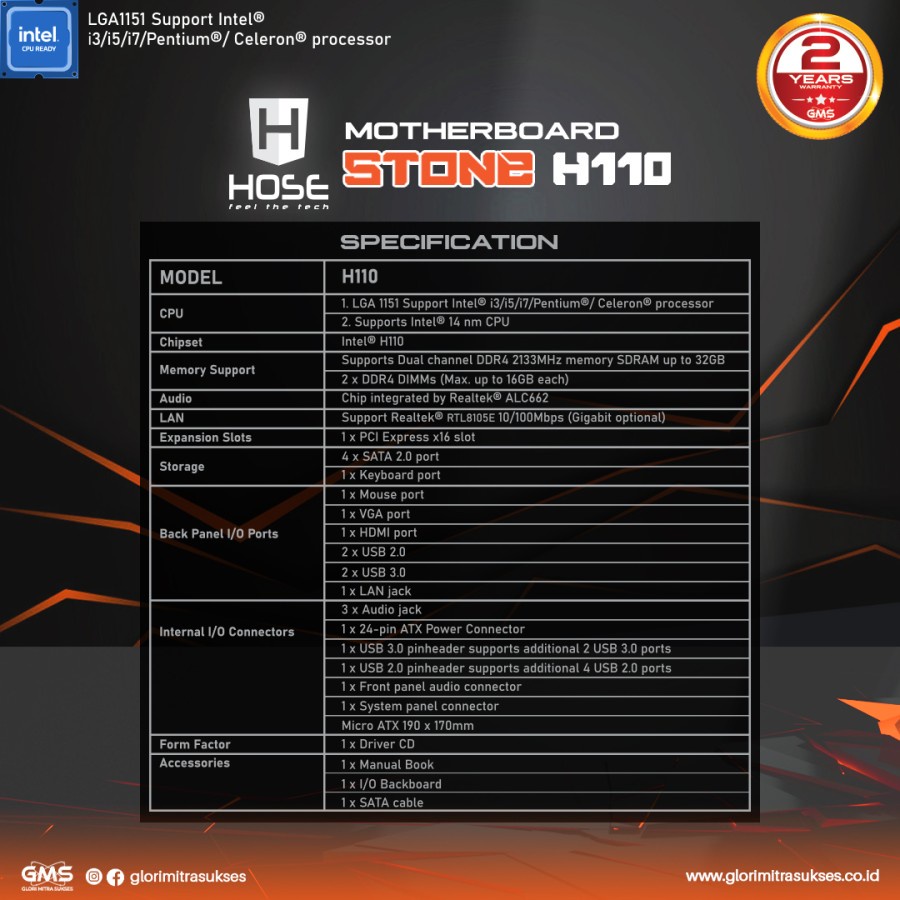

Motherboard Hose Stone H110 DDR4 Socket LGA 1151
CPU
1.LGA 1151 Support Intel® i3/i5/i7/Pentium®/Celeron® processor
2.Supports Intel® 14 nm CPU

Chipset
Intel® H110

Memory Support
Supports Dual channel DDR4 2133MHz memory SDRAM up to 32GB
2 x DDR4 DIMMs (Max. up to 16GB each)

Audio
Chip integrated by Realtek@ ALC662

LAN
Support Realtek® RTL8105E 10/100Mbps (Gigabit optional).

Expansion Slots
1x PCI Express x16 slot

Storage
4 x SATA 2.0 port
1x Keyboard port


Back Panel 1/0 Ports
1x Mouse port
1xVGA port
1x HDMI port
2x USB 2.0
2x USB 3.0
1x LAN jack


Internal 1/0 Connectors
3 x Audio jack
1x 24-pin ATX Power Connector
1 x USB 3.0 pinheader supports additional 2 USB 3.0 ports
1x USB 2.0 pinheader supports additional 4 USB 2.0 ports
1 x Front panel audio connector
1x System panel connector
Micro ATX 190 x170mm

Form Factor
1x Driver CD

Accessories
1x Manual Book
1x 1/0 Backboard
1x SATA cable

Gambar produk
