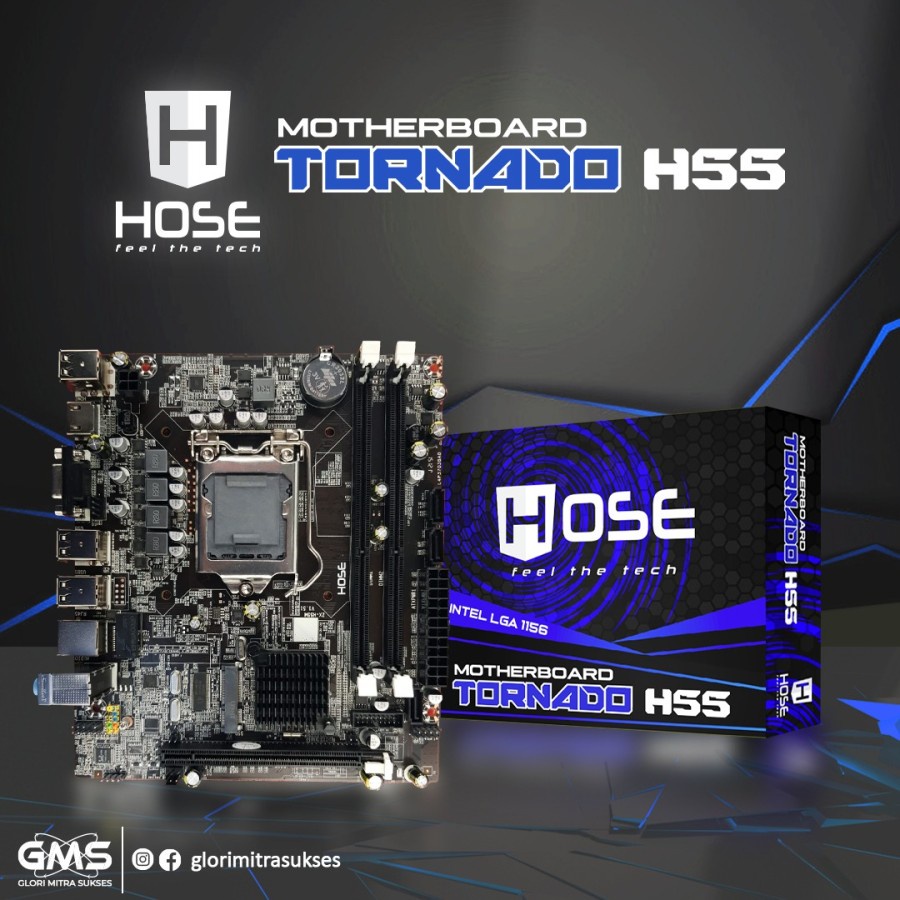

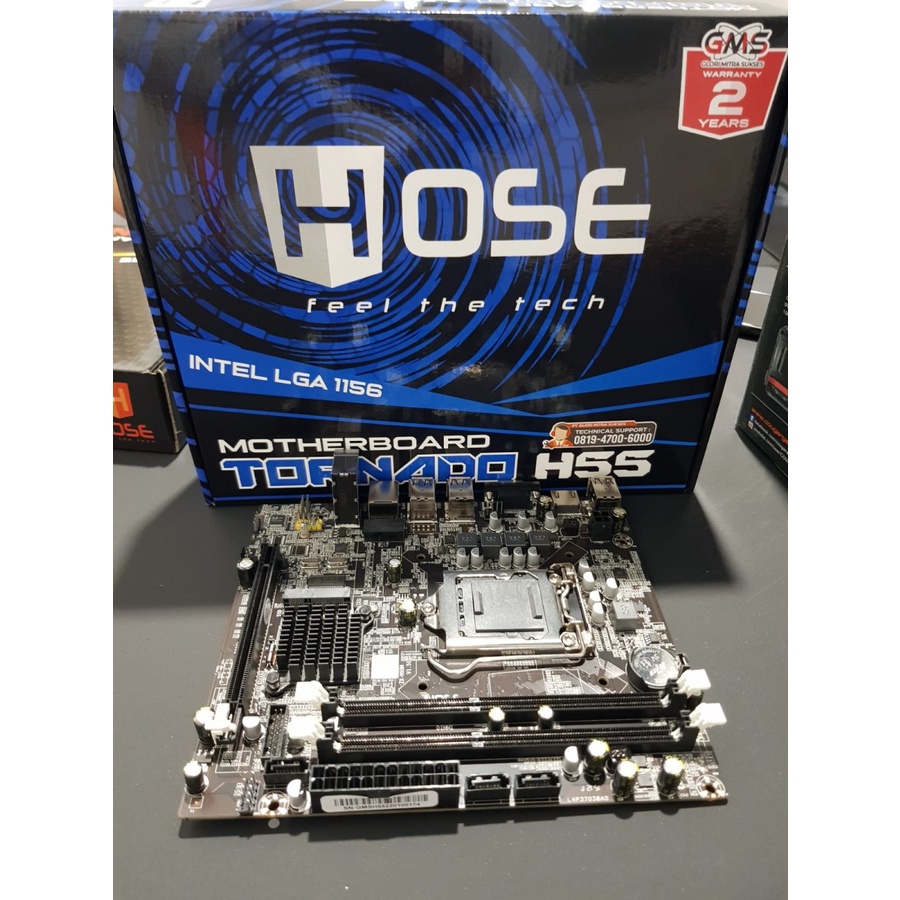

Motherboard Hose H55 / Mainboard H55 / Motherboard H55

Detail Motherboard Hose H55 / Mainboard H55 / Motherboard H55

Garansi Resmi GMS selama 2 tahun

Details
Chipset Intel H55
CPU SUPPORT Intel® Core™ i7 LGA 1156
Processor:
Intel® Core™ i5 LGA 1156 Processor
Intel® Core™ i3 LGA 1156 Processor
Intel® Pentium® LGA 1156 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY Support Dual Channel DDR3 1600(OC)/1333/1066/800 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 8GB Memory
INTEGRATED VIDEO By CPU model
STORAGE 4 x SATA II Connector
1 x IDE Connector
LAN Realtek RTL8111DL - 10/100/1000 Controller
AUDIO CODECRealtek ALC662 6-Channel HD Audio
USB4 x USB 2.0 Port
2 x USB 2.0 Header
EXPANSION SLOT1 x PCI-E 2.0 x16 Slot
1 x PCI-E 2.0 x1 Slot
2 x PCI Slot
REAR I/O1 x PS/2 Keyboard
4 x USB 2.0 Port
1 x HDMI Connector
1 x DVI Connector
1 x VGA Port
1 x LAN Port
3 x Audio Jacks
INTERNAL I/O2 x USB 2.0 Header
4 x SATA II Connector (3Gb/s )
1 x IDE Connector
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-Out Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x CIR Header
1 x COM Port Header
1 x Printer Port Header

DIMENSION Micro ATX Form Factor Dimension: 24.4cm X 20cm ( W x L )
OS SUPPORTSupports Windows 2000 / XP / Vista / 7
BUNDLE SOFTWAREBIO-Remote

ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x Fully Setup Driver CD
1 x Quick Guide

Gambar produk
