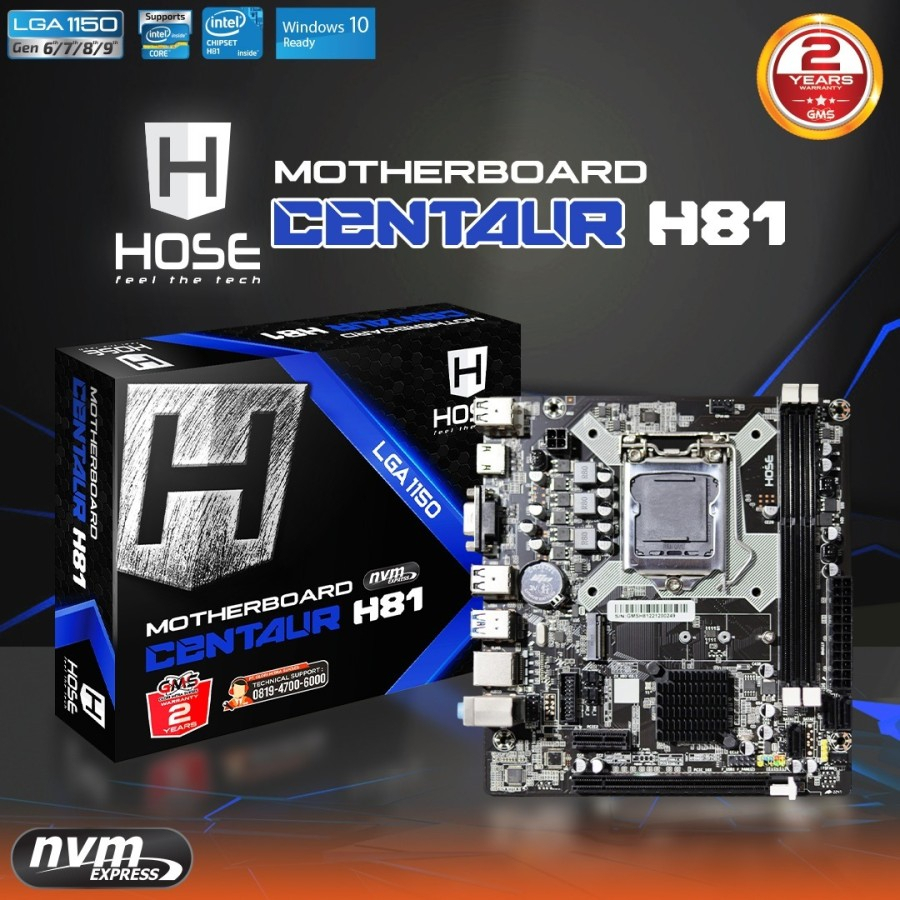

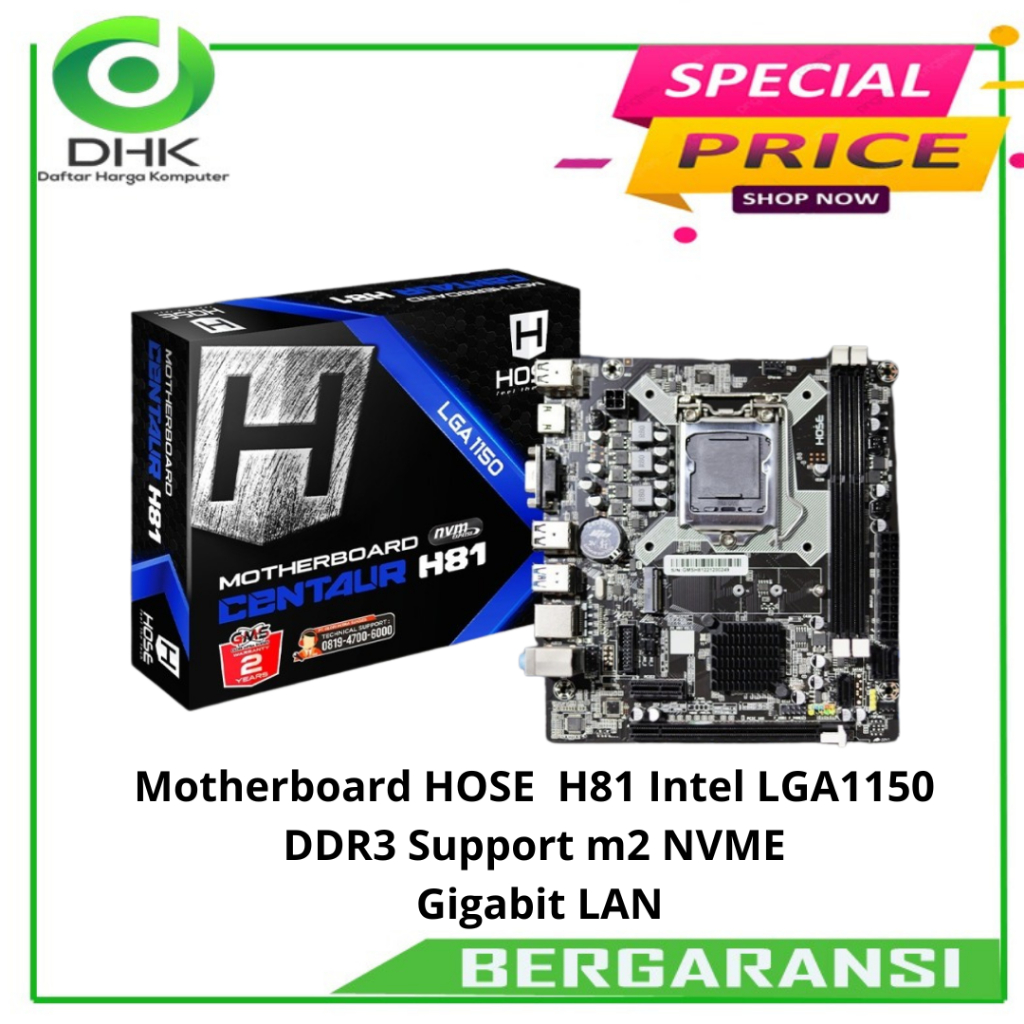

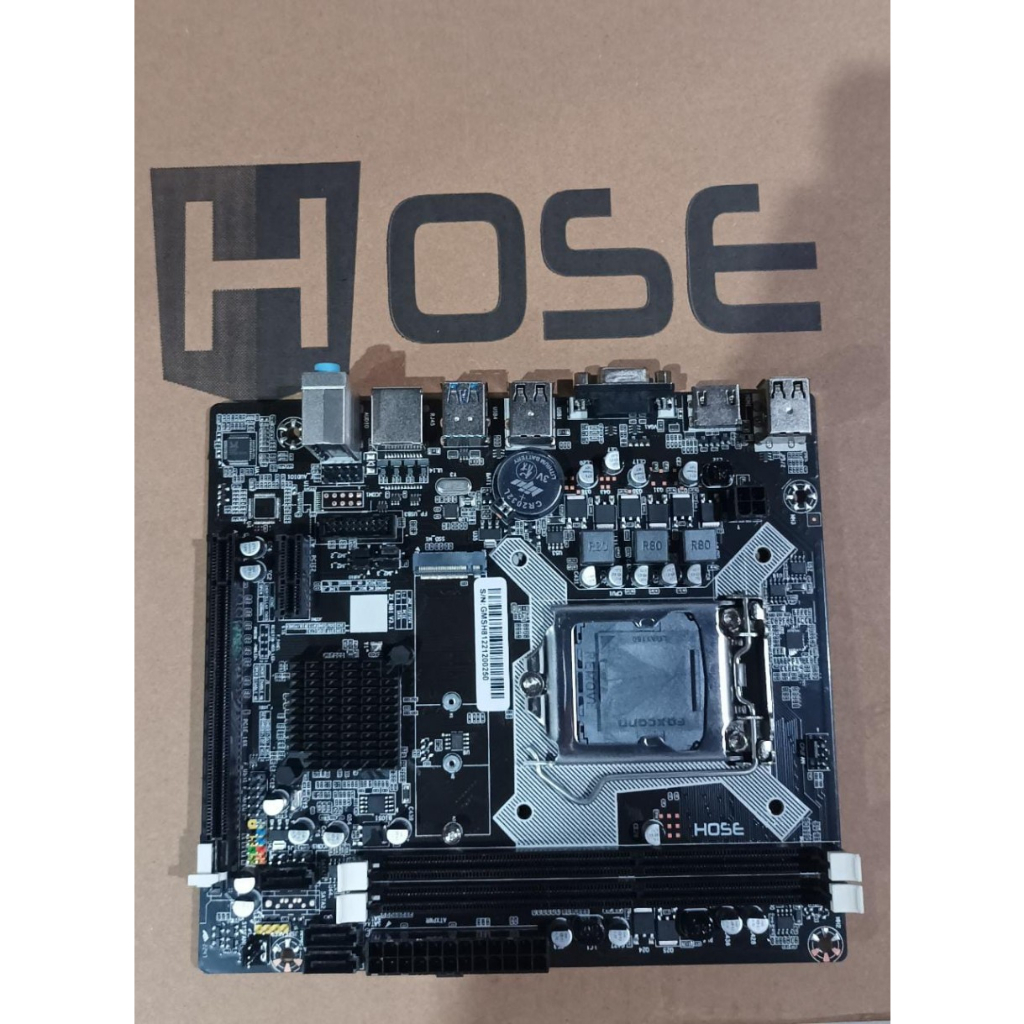

Motherboard HOSE H81 Intel LGA1150 DDR3 Support M2 NVME Gigabit LAN

Detail Motherboard HOSE H81 Intel LGA1150 DDR3 Support M2 NVME Gigabit LAN

MODEL
H81

CPU
Intel® Socket 1150 Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports 1333 / 1066Mhz FSB

Chipset
Intel® H81

Memory
Support dual channel DDR3 1333/ 1066 memory SDRAM 16GB (Max)
2x DDR3 DIMMs (Max up to 8GB each)

Audio
Realtek® ALC887

LAN
Realtek® 10/100Mbps (Gigabit Optional)

Expansion Slots
1x PCI Express x16 Slot

Storage
2 x SATA 2.0 port(s)
2 x SATA 3.0 port(s)

Back Panel I/O Ports
1 x USB keyboard
1 x USB mouse
1 x VGA port
1 x HDMI port
2 x USB 3.0
2 x USB 2.0

I/O Internal
1x RJ-45 Port
3x Audio jack
1x24 pin ATX Power Conecctor
1x4 pin ATX 12v Power Conecctor
1x USB 3.0 connector support additional 2 USB 3.0 ports
1x front panel audio connector
1x system panel connector

Form Factor
Micro ATX 190 x 170mm

Accessories
1x Driver CD
1x Manual book
1x I/O Backboard
1x SATA Cable

Gambar produk
