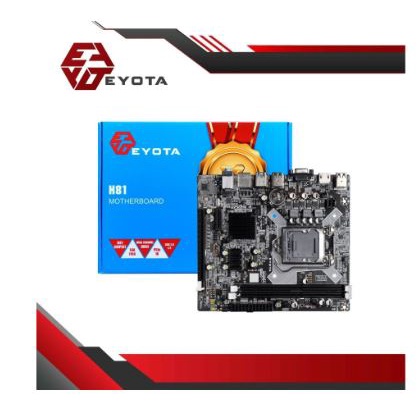

Motherboard eyota intel H81 lga 1150 ddr3 gen 4 5 micro atx hdmi vga usb 3.0 lan rj45 audio - Mainboard

Detail Motherboard eyota intel H81 lga 1150 ddr3 gen 4 5 micro atx hdmi vga usb 3.0 lan rj45 audio - Mainboard

Support Prosesor Intel Generasi 4 Soket LGA1150 (i3-4xxx, i5-4xxx, i7-4xxx)
pakai RAM tipe DDR3

TIPE: H81C
RAM MAX. 16GB DDR3 (8GB x2)
CPU supports LGA1150 Socket i3 / i5 / i7 series CPU
Chipset: Intel H81
------------------------------------------------------------------------------------------------
Memory: 2 x 240-pin DDR3 slots
Up to 16 GB
Supports dual-channel DDR6/1333/1600MHz memory
------------------------------------------------------------------------------------------------
BIOS: EFI BIOS
------------------------------------------------------------------------------------------------

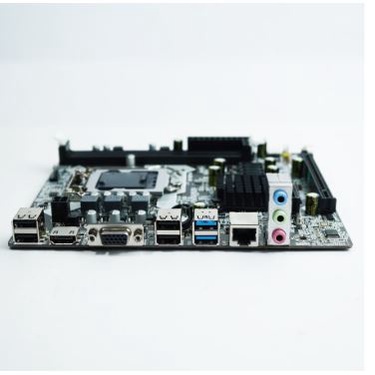

I/O Interface:
1 x VGA, 1x HDMI
4 x USB 2.0 (compatible with USB 1.1)
1 x RJ45
1 x 3-in-1 Audio port (Line-In / Line-Out/ MIC In)
------------------------------------------------------------------------------------------------
Onboard Interface: 1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
2 x USB connectors (can support 4 x USB 2.0)
1 x F_AUDIO connector
1 x F_PANEL connector
1 x SPEAKER connector
2 x FAN connectors
4 x Serial ATA connection port
------------------------------------------------------------------------------------------------
Integrated Sound: With 6-channel HD Audio Codec onboard
Provides front audio interface and front audio stereo mic interface
------------------------------------------------------------------------------------------------
Integrated LAN: with 10/100Mbps LAN onboard
------------------------------------------------------------------------------------------------
Expansion slot: 1 x PCI Express x16 slot
1 x PCIEXI slot
------------------------------------------------------------------------------------------------
Dimension: Micro ATX 17 x 19 cm


GARANSI 1 TAHUN

Ready Stock !

Gambar produk
