MOTHERBOARD EYOTA H61C SOKET 1155 GARANSI RESMI

Detail MOTHERBOARD EYOTA H61C SOKET 1155 GARANSI RESMI

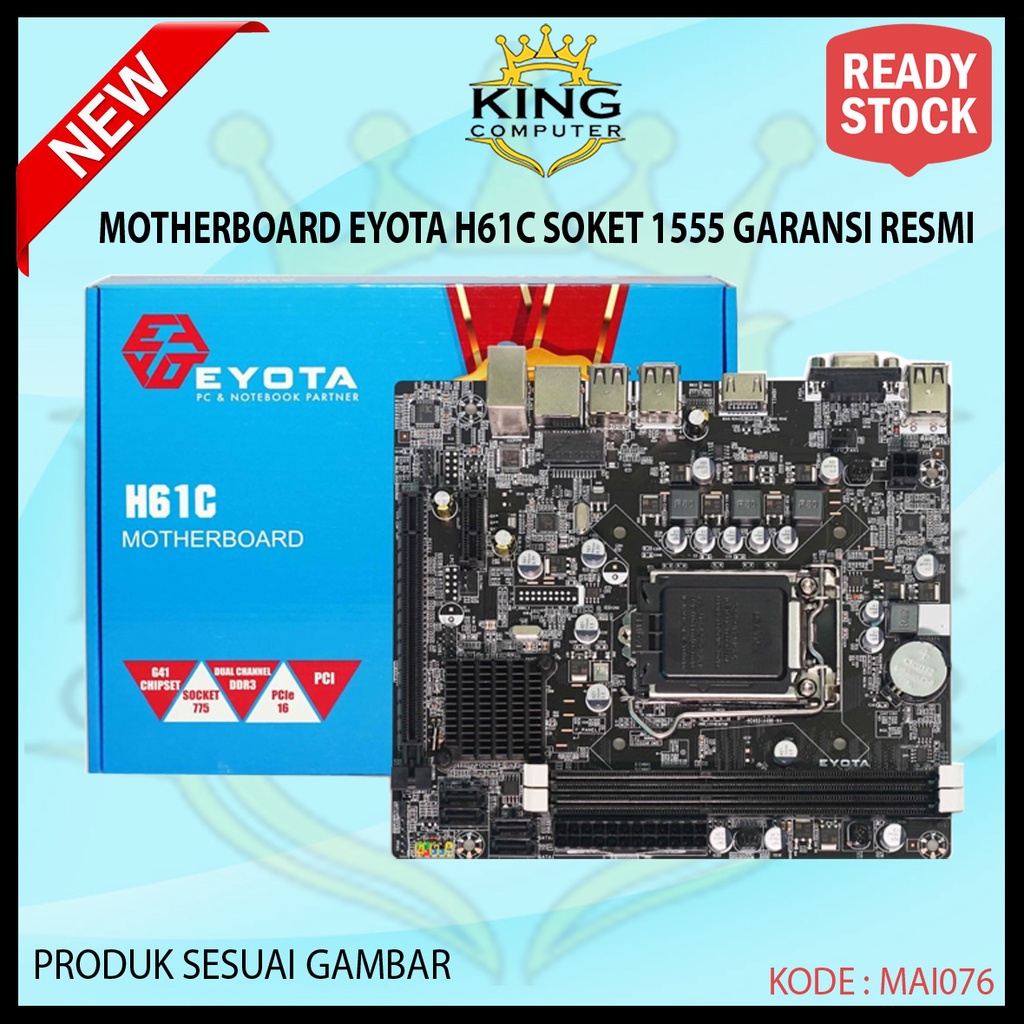

MOTHERBOARD EYOTA H61C

TIPE: H61C
RAM MAX. 16GB DDR3 (8GB x2)
CPU supports LGA1155 Socket i3 / i5 / i7 series CPU
Chipset: Intel H61

Memory: 2 x 240-pin DDR3 slots
Up to 16 GB
Supports dual-channel DDR3 1066/1333/1600MHz memory

BIOS: EFI BIOS

I/O Interface:
1 x VGA, 1x HDMI
4 x USB 2.0 (compatible with USB 1.1)
1 x RJ45
1 x 3-in-1 Audio port (Line-In / Line-Out/ MIC In)

Onboard Interface: 1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
2 x USB connectors (can support 4 x USB 2.0)
1 x FAUDIO connector
1 x FPANEL connector
1 x SPEAKER connector
2 x FAN connectors
4 x Serial ATA connection port

Integrated Sound: With 6-channel HD Audio Codec onboard
Provides front audio interface and front audio stereo mic interface

Integrated LAN: with 10/100Mbps LAN onboard

Expansion slot: 1 x PCI Express x16 slot
1 x PCIEXI slot

Dimension: 17 x 21 cm

Gambar produk
