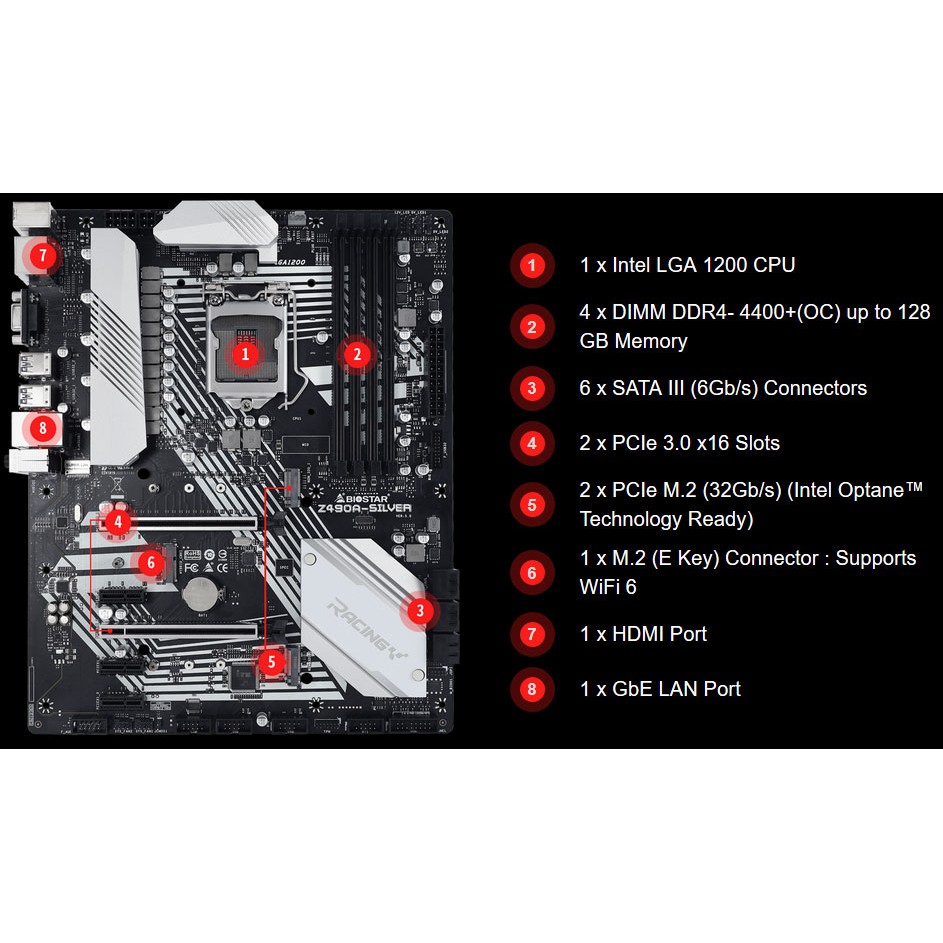

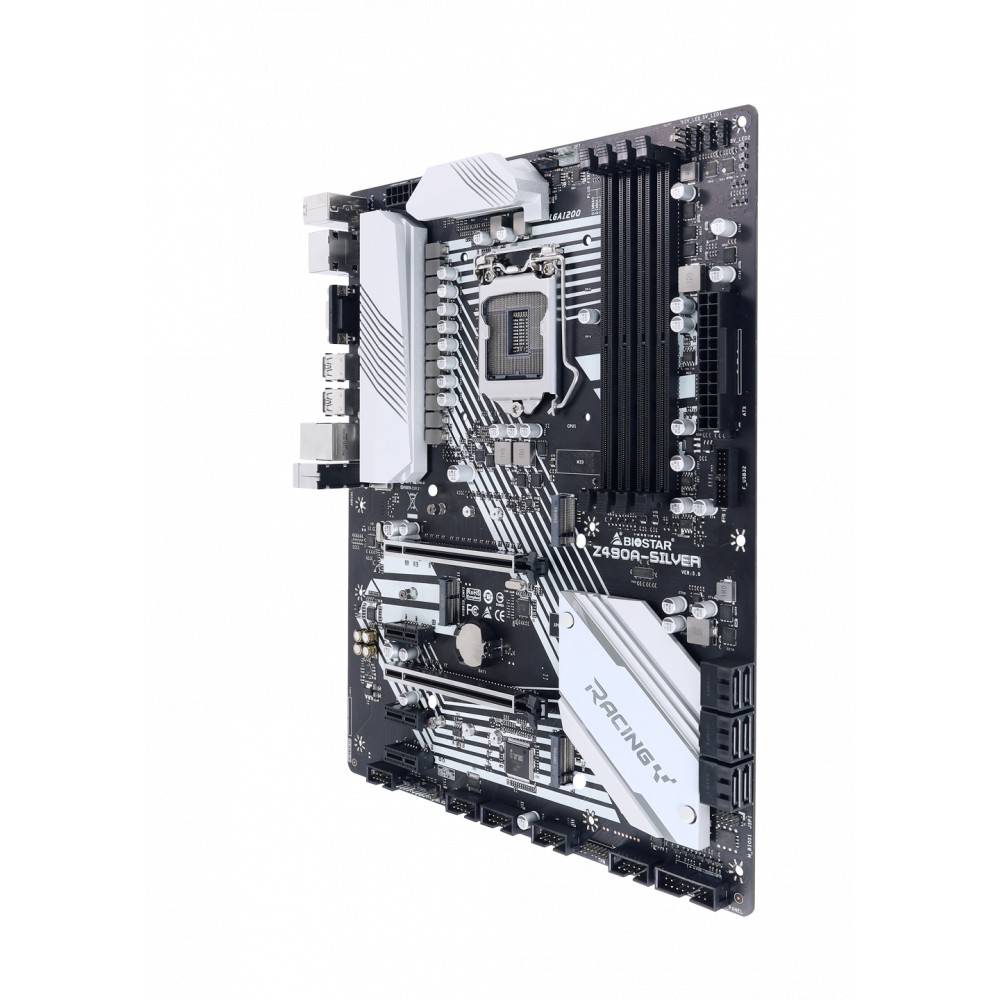

Motherboard Biostar racing Z490A Silver Lga1200 intel Z490 Atx DDR4 SATA3 usb 3.2 - Mainboard

Detail Motherboard Biostar racing Z490A Silver Lga1200 intel Z490 Atx DDR4 SATA3 usb 3.2 - Mainboard

CPU SUPPORT Support for 10th Generation
INTEGRATED VIDEO By CPU model
STORAGE Total supports 2 x M.2 slots and 6 x SATA III(6Gb/s ports)
1 x M2_32G_1 socket , with M key, type 2242/2260/2280/22110 storage devices support SATA & PCIE 3.0 x 4 mode/Intel Optane Technology
1 x M2_32G_2 socket , with M key, type 2242/2260/2280/22110 storage devices support SATA & PCIE 3.0 x 4 mode/Intel Optane Technology
6 x SATA III (6Gb/s) : Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology
* When using SATA SSD module on M2M_32G_1 slot, the SATA_3U connector will be disabled.
* When using SATA SSD module on M2M_32G_2 slot, the SATA_3L connector will be disabled.
LAN Intel i219V; 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Supports Super LAN Surge Protection
AUDIO CODEC ALC1150
7.1 Channels, High Definition Audio
USB 6 x USB 3.2 (Gen1) ports (4 on rear I/Os and 2 via internal header)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal header)
EXPANSION SLOT 3 x PCIe 3.0 x 1 Slots
2 x PCIe 3.0 x 16 Slots(x 16 or x 8 + x 8)
REAR I/O 2 x WIFI Antenna Ports


ready yah !!
