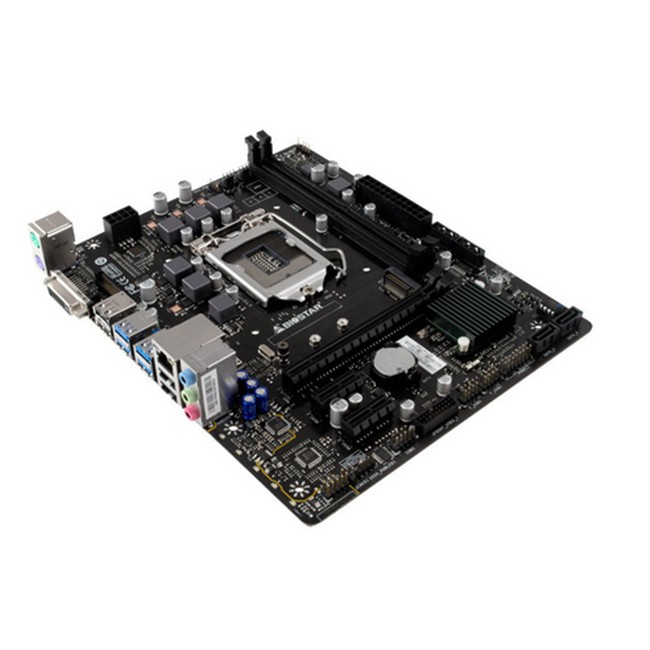

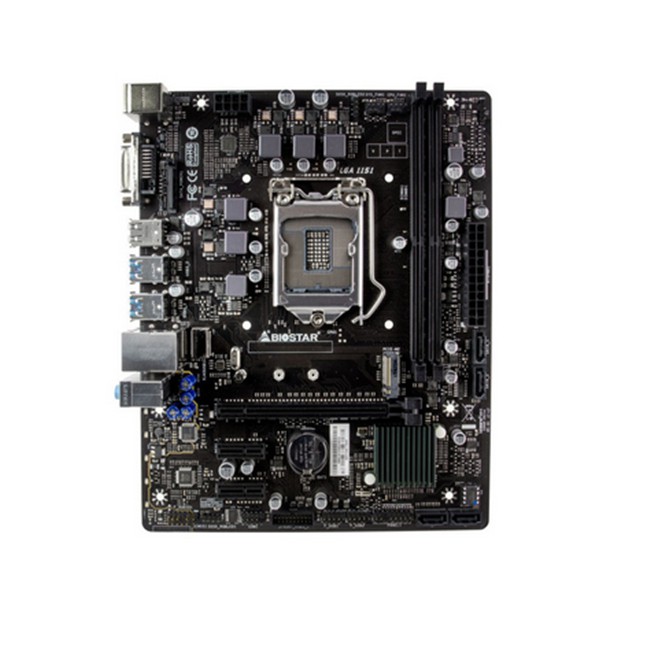

Motherboard Biostar RACING B250ET2 Socket 1151

Detail Motherboard Biostar RACING B250ET2 Socket 1151

FEATURES
5050 LED FUN ZONE
Supports PURO Hi-Fi
Supports 100% Solid capacitor
Supports Charger Booster
Supports BIOS Online Update

TECH SPECS
Chipset: Intel B250
CPU SUPPORT: 7th & 6th Gen Intel® LGA 1151 Processor, Maximum CPU TDP (Thermal Design Power): 95Watt
MEMORY: Support Dual Channel DDR4 2400/ 2133/ 1866 MHz; 2 x DDR4 DIMM Memory Slot; Max. Supports up to 32GB Memory
EXPANSION SLOT: 1 x PCI-E 3.0 x16 Slot, 2 x PCI-E 3.0 x1 Slot
STORAGE: 4 x SATA3 Connector, 1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCIe Storage
USB: 4 x USB 3.0 Port, 1 x USB 3.0 Header, 2 x USB 2.0 Port, 2 x USB 2.0 Port(only 5V power, up to 1.5A), 2 x USB 2.0 Header
LAN: Realtek RTL8111H - 10/100/1000 Controller
CODEC: Realtek ALC887 8-Channel HD Audio
REAR I/O: 1 x PS/2 Mouse, 1 x PS/2 Keyboard, 4 x USB 3.0 Port, 2 x USB 2.0 Port, 2 x USB 2.0 Port(only 5V power, up to 1.5A), 1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz, 1 x RJ-45 Port, 3 x Audio Connector
INTERNAL I/O: 1 x USB 3.0 Header, 2 x USB 2.0 Header, 4 x SATA3 6Gb/s Connector, 1 x SATA Power Connector(for rear USB power enhancement), 1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCIe Storage, 1 x Front Audio Header, 1 x Front Panel Header, 1 x CPU Fan Header, 1 x System Fan Header, 1 x Serial Header, 2 x 5050 LED Header
DIMENSION: Micro ATX Form Factor Dimension: 22.6cm x 18.7cm ( W x L )
ACCESSORIES: 2 x SATA Cable, 1 x I/O Shield, 1 x DVD Driver, 1 x Quick Guide
