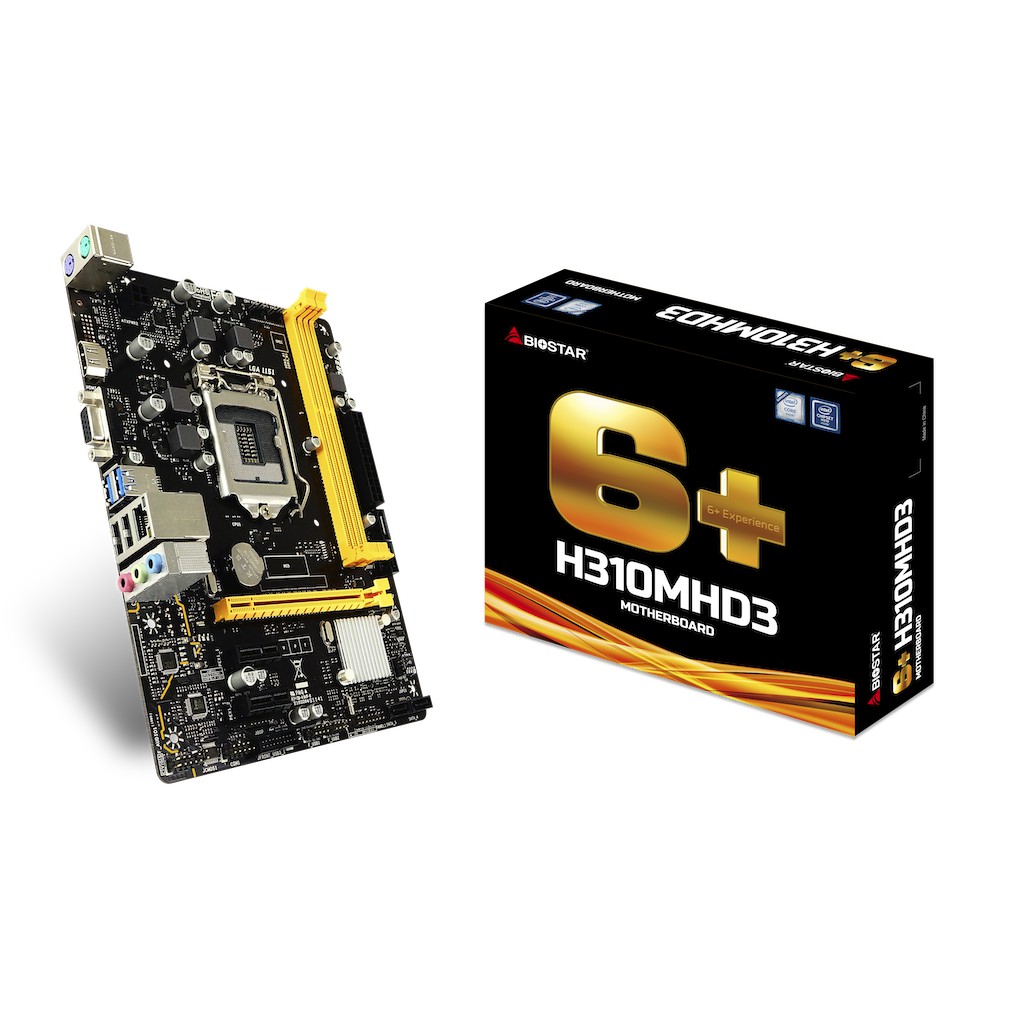

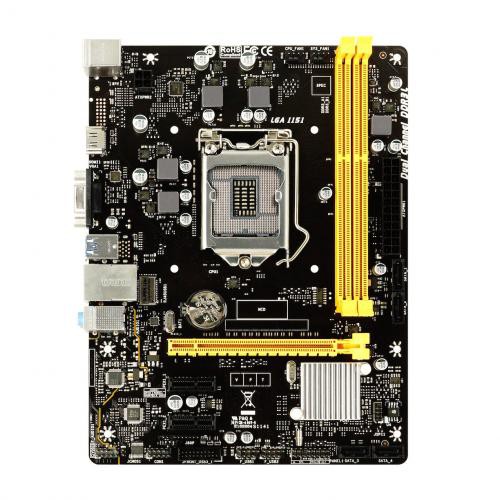

Motherboard Biostar Micro atx h310mhd3 ddr3 lga 1151 intel gen 8 9 h310 sata 3.0 gigabit usb3.1 4k 2k - Mainboard Lga1151

Detail Motherboard Biostar Micro atx h310mhd3 ddr3 lga 1151 intel gen 8 9 h310 sata 3.0 gigabit usb3.1 4k 2k - Mainboard Lga1151

- Chipset
Intel H310

- CPU SUPPORT
9th Gen Intel® Core™ i9 LGA 1151 Processor
9th Gen Intel® Core™ i7 LGA 1151 Processor
9th Gen Intel® Core™ i5 LGA 1151 Processor
9th Gen Intel® Core™ i3 LGA 1151 Processor
8th Gen Intel® Core™ i7 LGA 1151 Processor
8th Gen Intel® Core™ i5 LGA 1151 Processor
8th Gen Intel® Core™ i3 LGA 1151 Processor
8th Gen Intel® Pentium® LGA 1151 Processor
8th Gen Intel® Celeron® LGA 1151 Processor

- MEMORY
Support DDR3L 1333/1600/1866/2400 MHz
2x DDR3L DIMM Memory Slots
Max. Supports up to 32 GB Memory
Each DIMM supports non-ECC 4/8/16GB DDR3L module

- INTEGRATED VIDEO
By CPU model
Supports DX12
Supports HDCP

- STORAGE
4 x SATA III Connectors (6Gb/s)

- LAN
Realtek RTL8111H GbE LAN - 10/100/1000Mb/s Controller
Support Super LAN Surge Protection

- AUDIO CODEC
Realtek ALC887 8-Channel HD Audio

- USB
4 x USB 3.1 Gen1 Port (2 on rear I/Os and 2 via internal header)
6 x USB 2.0 Port(2 on rear I/Os and 4 via internal header)

- EXPANSION SLOT
1 x PCI-E 3.0 x16 Slot
2 x PCI-E 2.0 x1 Slot

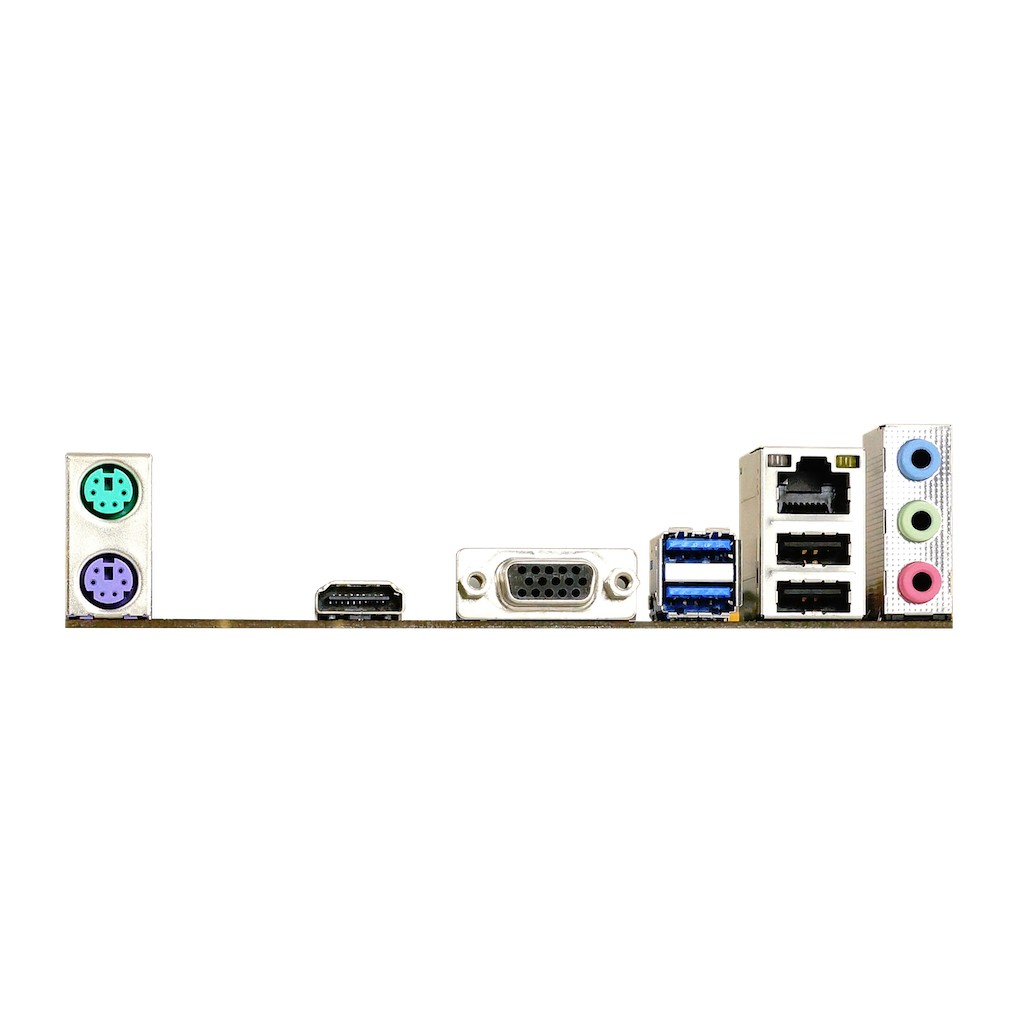

- REAR I/O
1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.1 Gen1 Ports
2 x USB 2.0 Port
1 x HDMI Connector ,resolution up to 4096 x 2160@24Hz, compliant with HDMI 1.4
1 x VGA Port,resolution up to 1920 x 1200 @60Hz
1 x LAN Port
3 x Audio Jacks

- INTERNAL I/O
1 x USB 3.1 Gen1 Header (each header supports 2 USB 3.1 Gen1 ports)
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
4 x SATA III Connector (6Gb/s)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x Clear CMOS Header
1 x COM Port Header

- H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring

- DIMENSION
Micro ATX Form Factor Dimension: 22.6 cm x 17.1 cm ( W x L )

- ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide

OS SUPPORT
Supports Windows 10(64bit)


ready!
