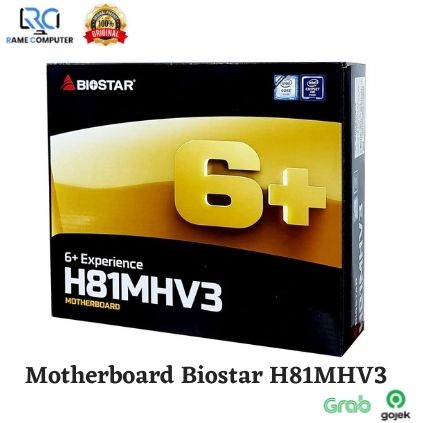

Motherboard Biostar H81MHV3 Socket 1150

Detail Motherboard Biostar H81MHV3 Socket 1150

Chipset Intel H81
CPU SUPPORT Intel" Core' i7 LGA 1150 Processor
Intel" Core' i5 LGA 1150 Processor
Intel" Core' i3 LGA 1150 Processor
Intel" Pentium" LGA 1150 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY Support Dual Channel DDR3 1600/1333/1066 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 16GB Memory
EXPANSION SLOT 1 x PCI-E x16 2.0 Slot
1 x PCI-E x1 2.0 Slot
STORAGE 2 x SATA3 Connector
2 x SATA2 Connector
USB 2 x USB 3.0 Port
2 x USB 2.0 Port
2 x USB 2.0 Header
LAN Realtek RTL8111G - Controller
INTEGRATED VIDEO By CPU model
Supports DX11.1
CODEC Realtek ALC662 6-Channel HD Audio
REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x HDMI Connector
1 x VGA Port
1 x RJ-45 Port
3 x Audio Connector
