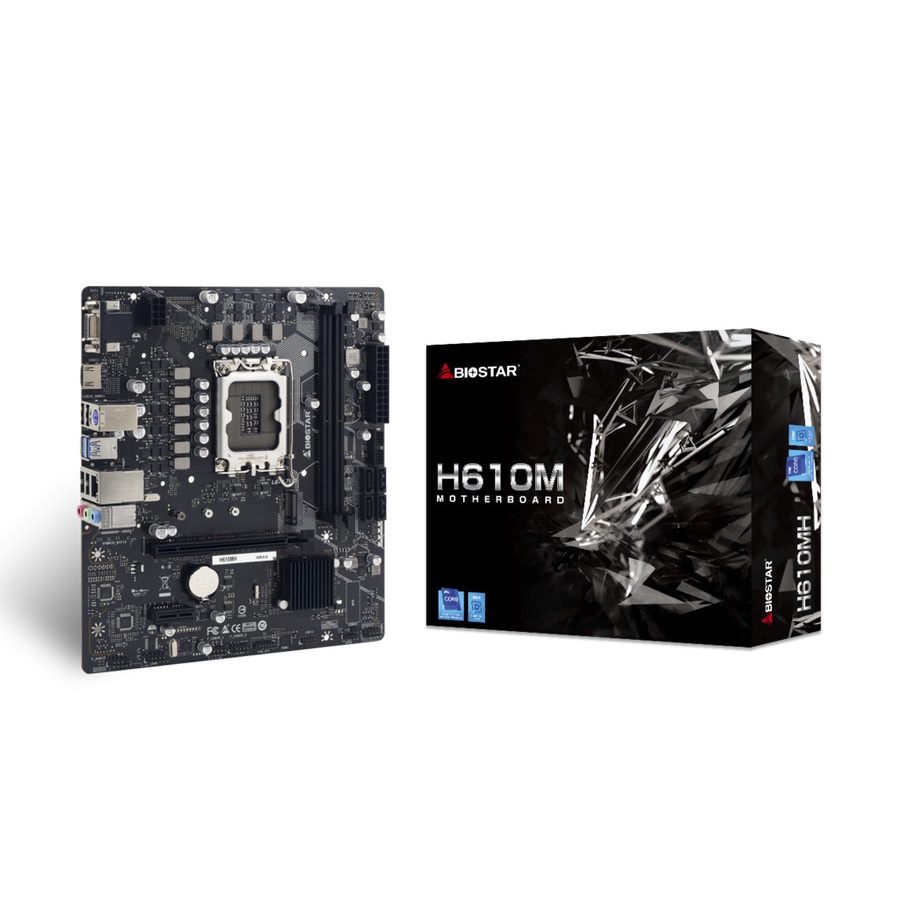

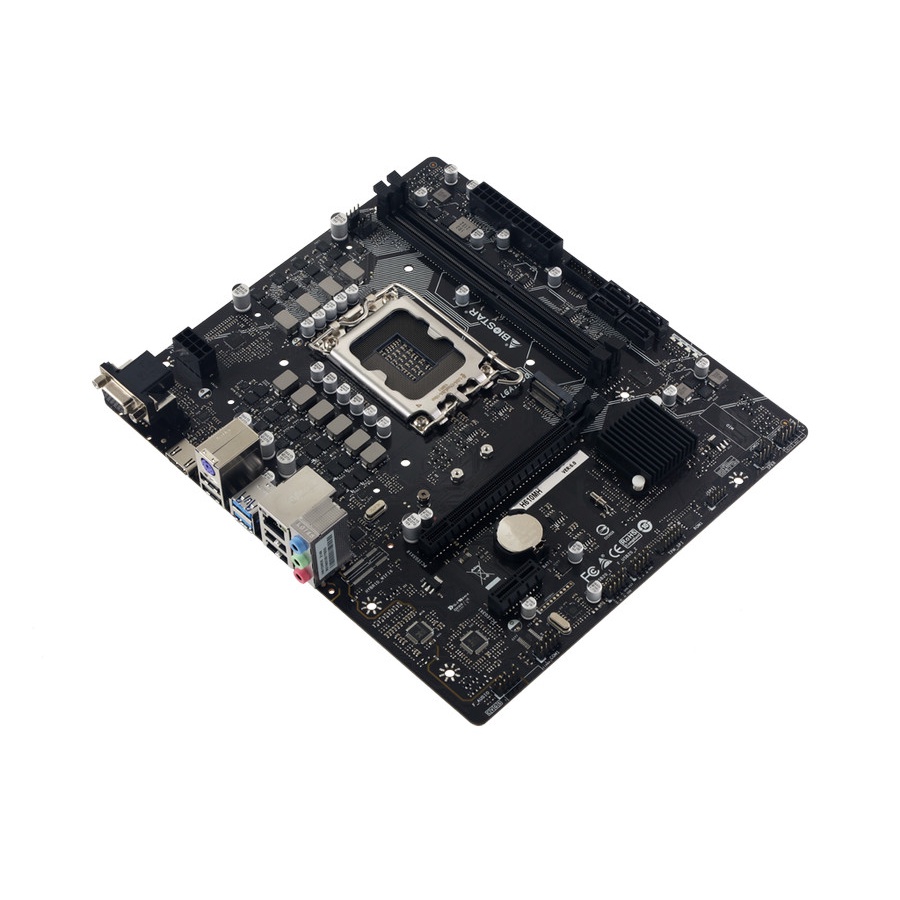

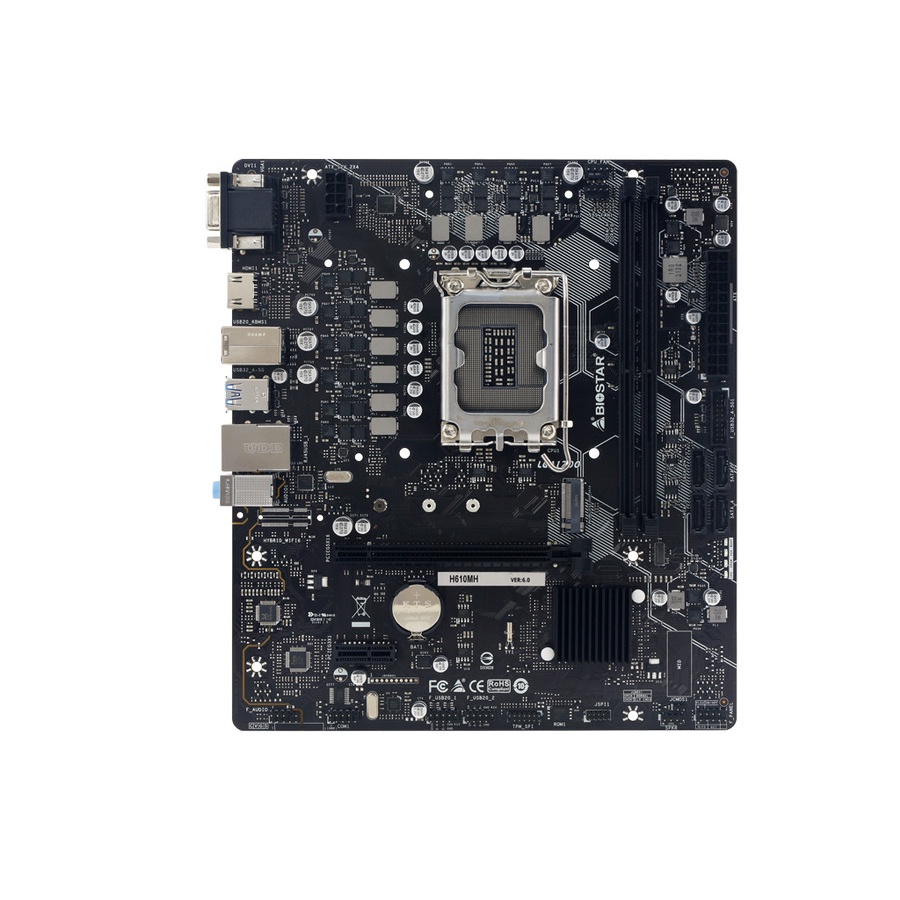

Motherboard BIOSTAR H610MH Intel H610 LGA 1700 DDR4 Micro ATX

Detail Motherboard BIOSTAR H610MH Intel H610 LGA 1700 DDR4 Micro ATX

Motherboard BIOSTAR H610MH Intel H610 LGA 1700 DDR4 Micro ATX
Socket : 1700
Supports 12th Generation Intel Core™ Processor
Intel H610 single chip architecture
Supports 2-DIMM DDR4- 1866/ 2133/ 2400/ 2666/ 2933/ 3200 up to 64 GB Memory
Supports PCIe 4.0
Supports PCIe M.2 3.0 (32Gb/s)
Supports HDMI 4K2K
Supports USB 3.2 Gen1

STORAGE : -- Total supports 1x M.2 socket and 4 x SATA III (6Gb/s) ports
4 x SATA III Connector (6Gb/s)
1 x M.2 (M Key) Socket (M2_PCIEG3_32G_ SATA):
Supports M.2 Type 2240 /2260 /2280 SSD module
Supports PCI-E 3.0 x4 (32Gb/s) & SATA SSD

EXPANSION SLOT : 1 x PCIe 3.0 x1 Slot
1 x PCle 3.0/4.0 x16 Slot

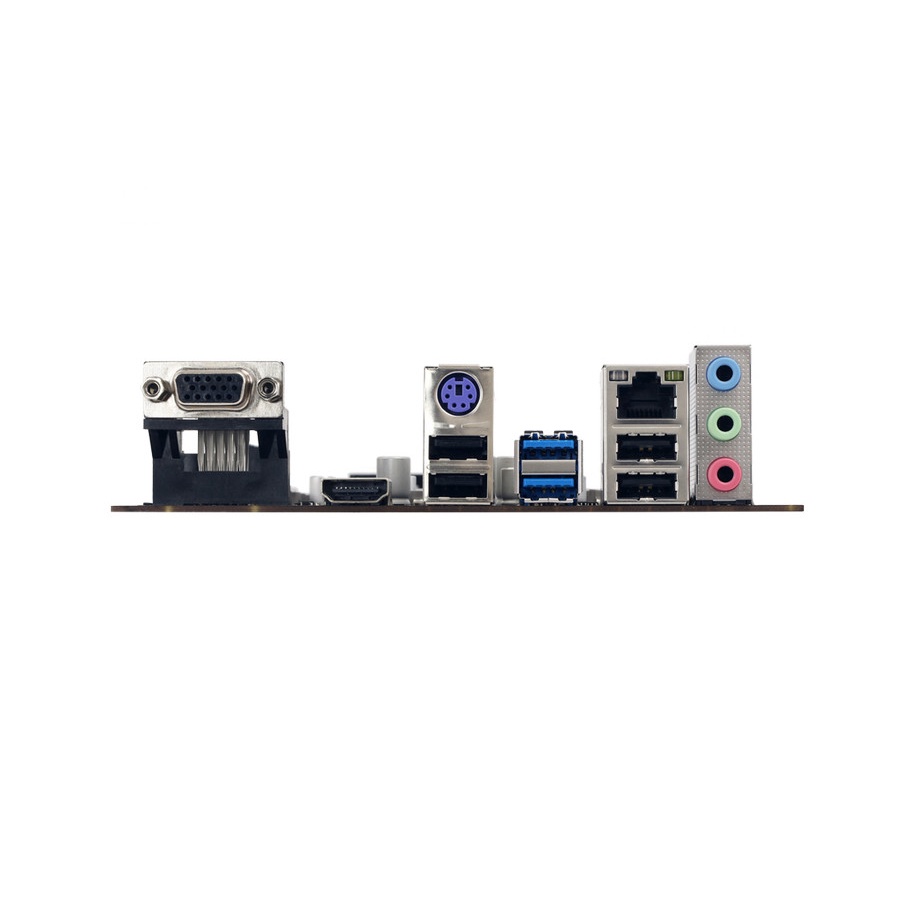

REAR I/O : 1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x HDMI Port
1 x VGA Port
2 x USB 3.2 (Gen1) Ports
4 x USB 2.0 Ports
1 x LAN port
3 x Audio Jack

INTERNAL I/O : 4 x SATA III Connectors (6Gb/s)
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
