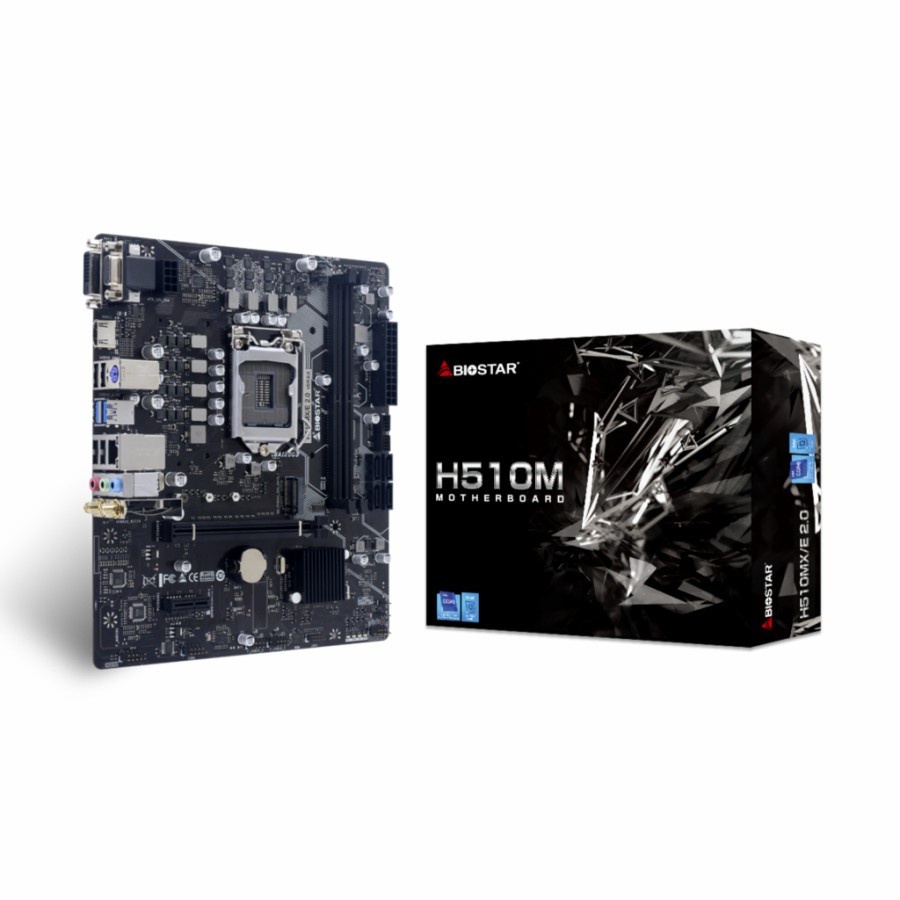

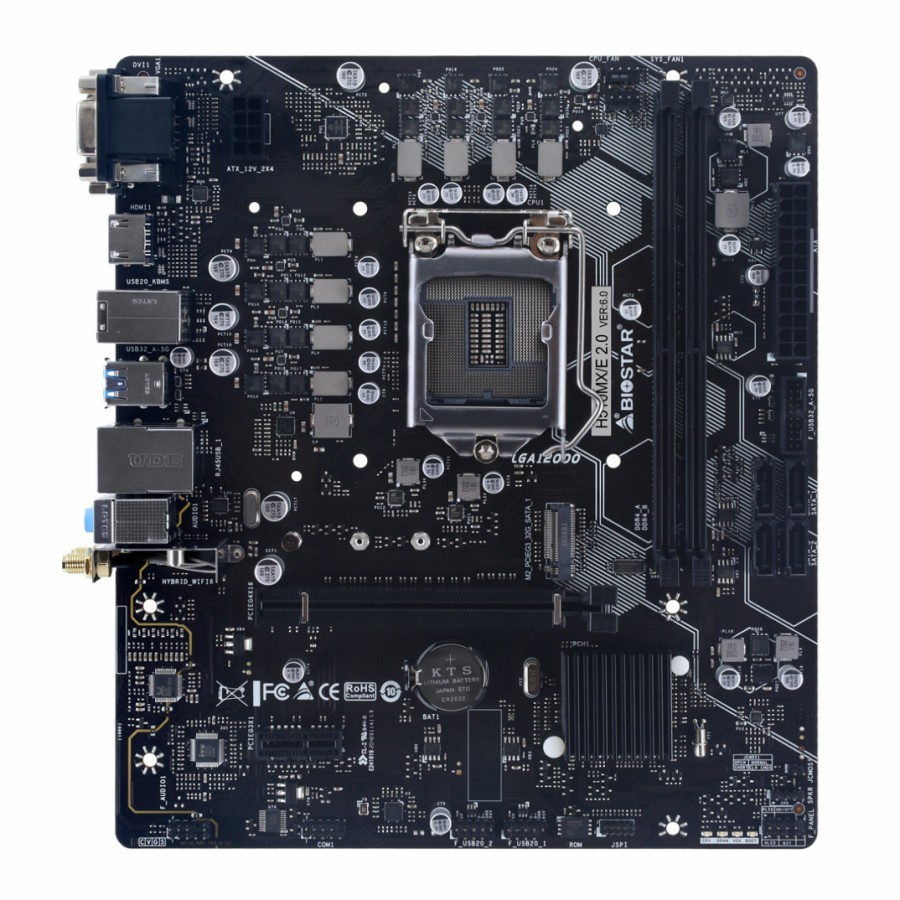

Motherboard BIOSTAR H510MX/E 2.0 Ver.6.0 Socket 1200

Detail Motherboard BIOSTAR H510MX/E 2.0 Ver.6.0 Socket 1200

Motherboard BIOSTAR H510MX/E 2.0 Ver.6.0 Socket 1200
Chipset Intel H510
CPU SUPPORT Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package

MEMORY Supports Dual Channel DDR4 3200/ 2933/ 2666/ 2400/ 2133/ 1866
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module

INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
STORAGE -- Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports
4 x SATA III Connectors (6Gb/s)
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module.
Supports PCIe 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD & SATA III (6Gb/s) SSD
* When using SATA SSD module on M.2 slot (M2_PCIEG3_32G_SATA_1), the SATA_1 connector will be disabled.
LAN Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC ALC897
7.1 Channels, High Definition Audio
USB 4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)
EXPANSION SLOT 1 x PCIe 3.0 x1 Slot
1 x PCIe 3.0/ 4.0 x16 Slot (x16 mode)
* The PCIe 4.0 only depends on Rocket Lake CPUs.

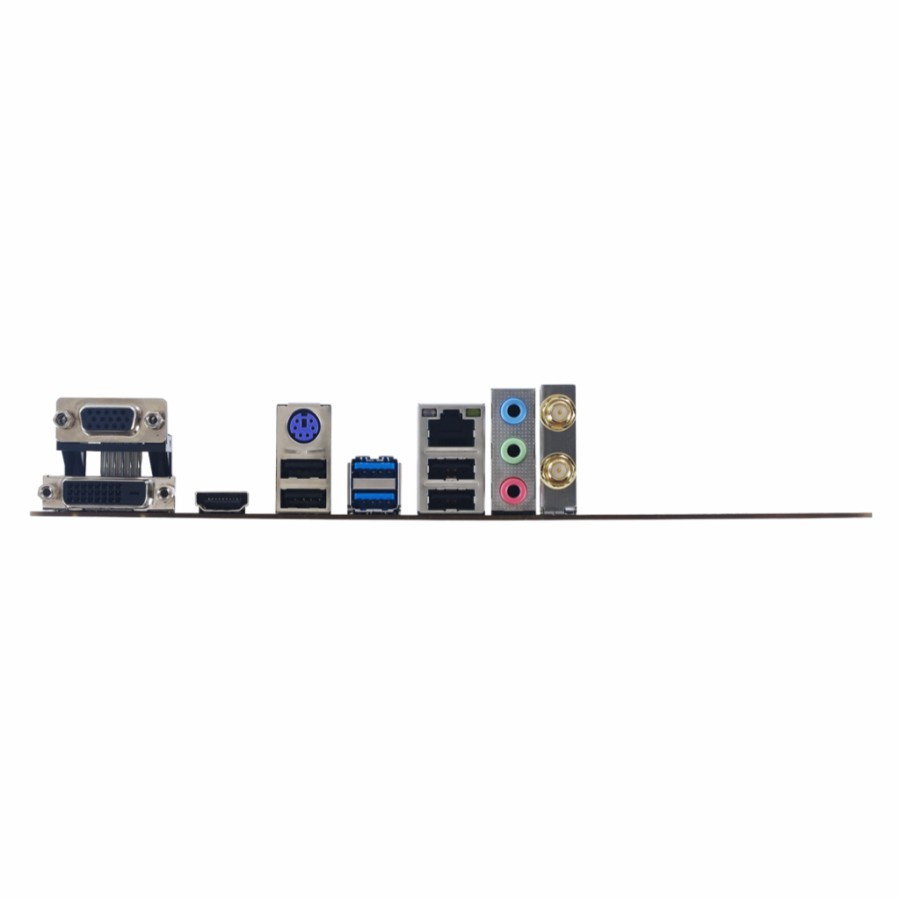

REAR I/O 2 x WIFI Antenna Ports
1 x PS/2 Keyboard / Mouse
1 x HDMI Port
1 x VGA Port
1 x DVI-D Port
2 x USB 3.2 (Gen1) Ports
4 x USB 2.0 Port
1 x LAN port
3 x Audio Jack
INTERNAL I/O 4 x SATA III Connectors (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
* M.2 (E key
