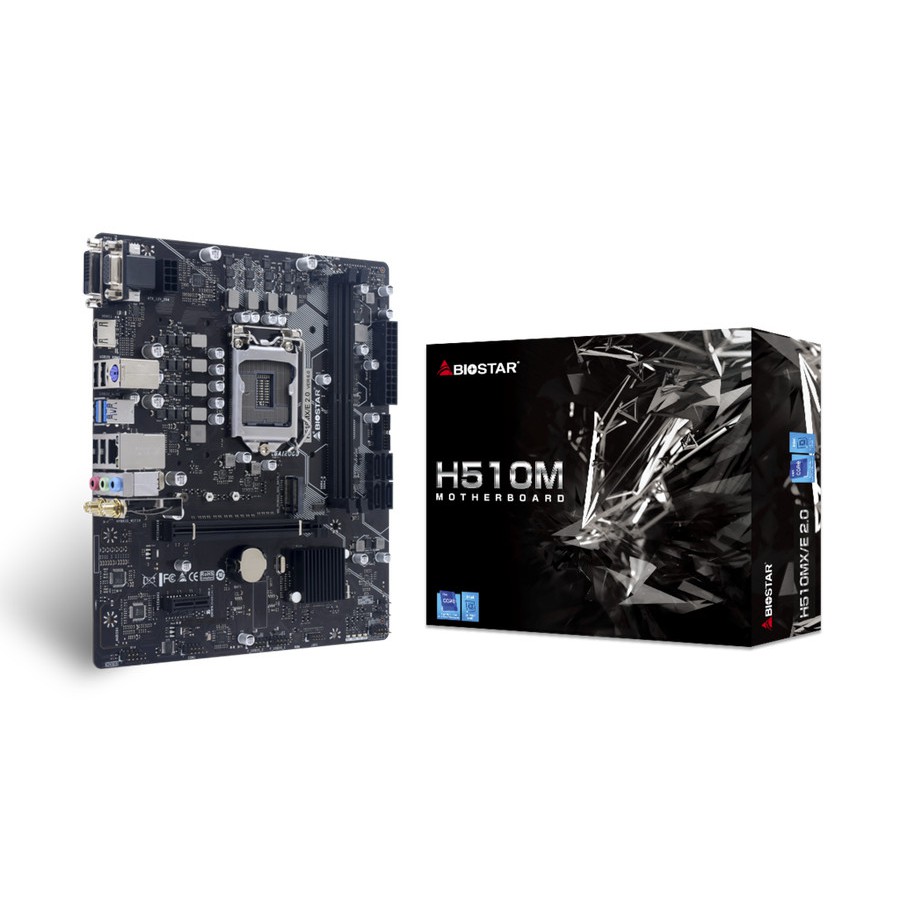

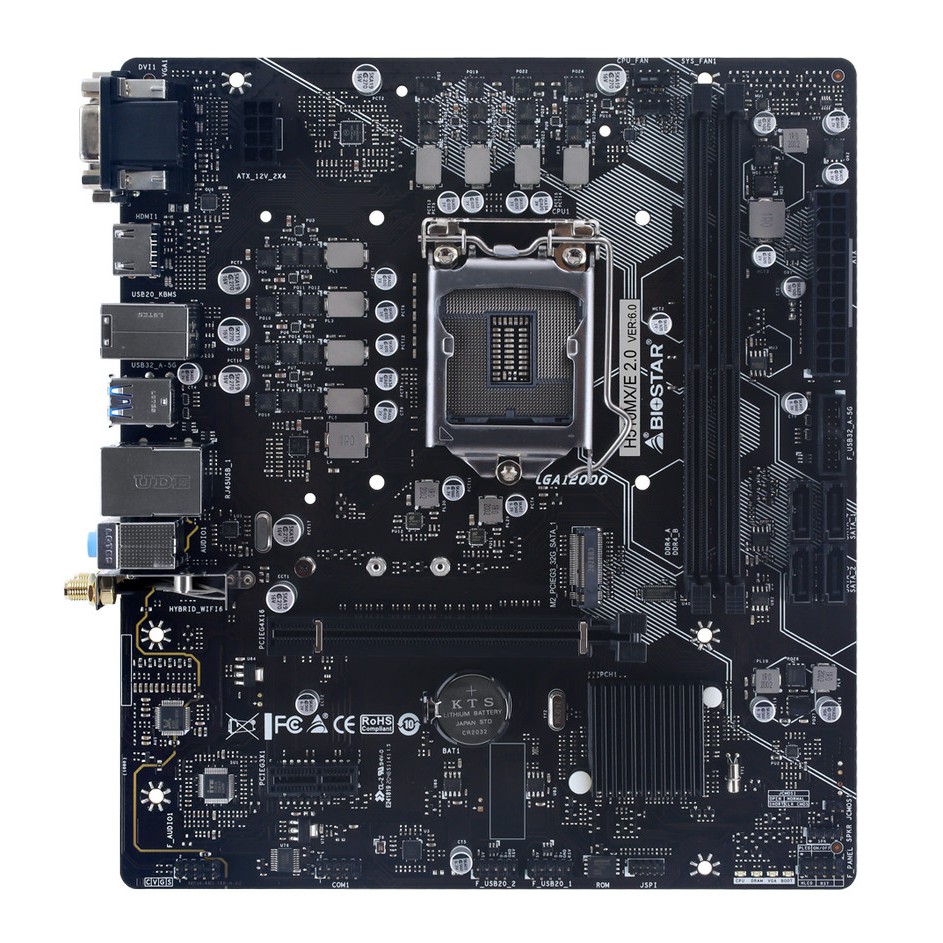

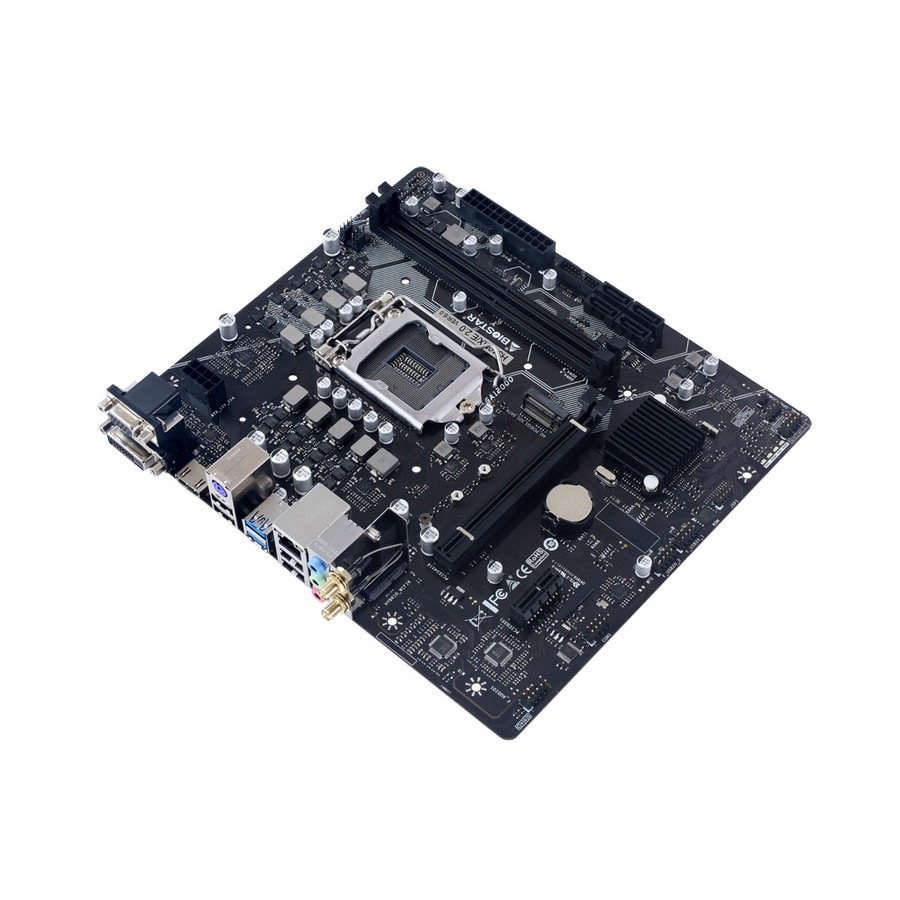

MOTHERBOARD BIOSTAR H510MX/E 2.0 DDR4 LGA 1200 INTEL H510 GEN 10/11 USB3.2 SATA3 WIFI M2 B M-KEY GIGABIT

Detail MOTHERBOARD BIOSTAR H510MX/E 2.0 DDR4 LGA 1200 INTEL H510 GEN 10/11 USB3.2 SATA3 WIFI M2 B M-KEY GIGABIT

FEATURES
Supports 10th/11th Generation Intel Core™ Processor
Intel H510 single chip architecture
Supports 2-DIMM DDR4- 3200/ 2933/ 2666/ 2400/2133/ 1866 up to 64 GB Memory
Supports PCIe 4.0
Supports PCIe M.2 3.0 (32Gb/s)
Supports USB 3.2 Gen1
Supports WiFi 6 module (No WiFi 6 card included)

TECH SPECS
Chipset: Intel H510

CPU SUPPORT: Support for 10th/ 11th Generation Intel Core and Intel Pentium processors/ Intel Celeron LGA1200

MEMORY: Supports Dual Channel DDR4 3200/ 2933/ 2666/ 2400/ 2133/ 1866
2 x DDR4 DIMM Memory Slot, up to 64 GB

INTEGRATED VIDEO:
By CPU model
Supports DX12
Supports HDCP

STORAGE:
Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports
4 x SATA III Connectors (6Gb/s)
1 x M.2 (M Key) Socket:

LAN:
Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC: ALC897 7.1 Channels, High Definition Audio

USB :
4 x USB 3.2(Gen1) ports
8 x USB 2.0 ports

EXPANSION SLOT:
1 x PCIe 3.0 x1 Slot
1 x PCIe 3.0/ 4.0 x16 Slot (x16 mode)
REAR I/O: 2 x WIFI Antenna Ports
1 x PS/2 Keyboard / Mouse
1 x HDMI Port
1 x VGA Port
1 x DVI-D Port
2 x USB 3.2 (Gen1) Ports
4 x USB 2.0 Port
1 x LAN port
3 x Audio Jack

INTERNAL I/O :
4 x SATA III Connectors (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header

H/W MONITORING:
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring

ACCESSORIES:
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
1 x WiFi accessories

Ready !
