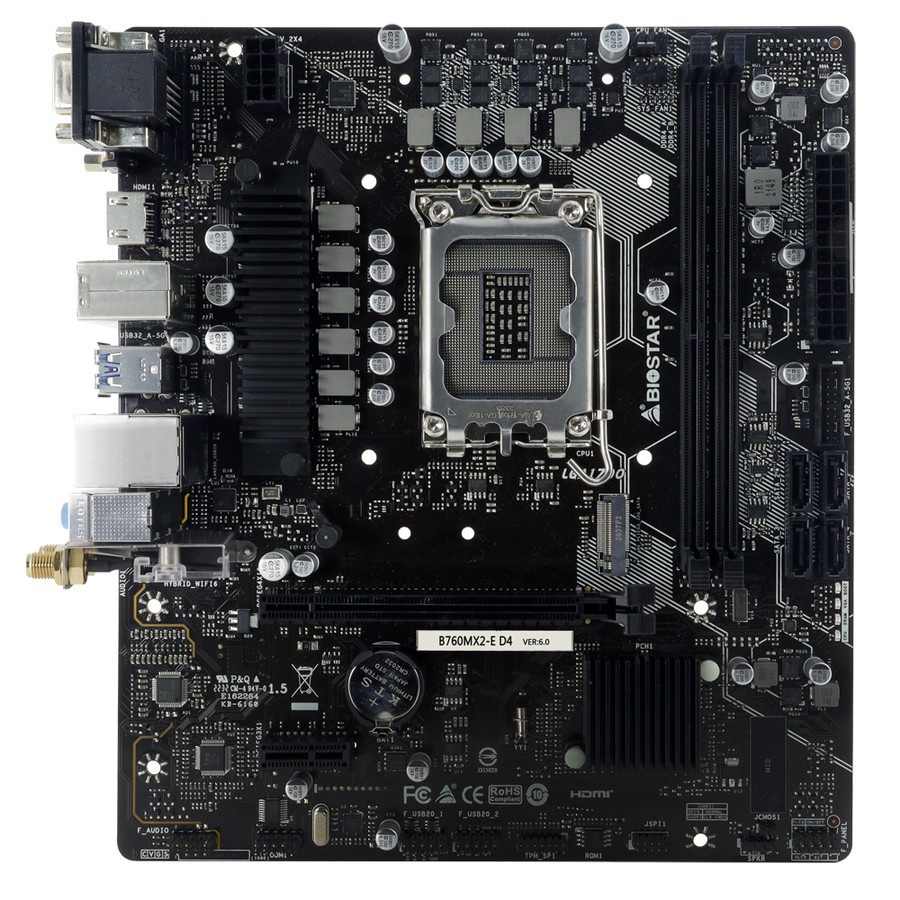

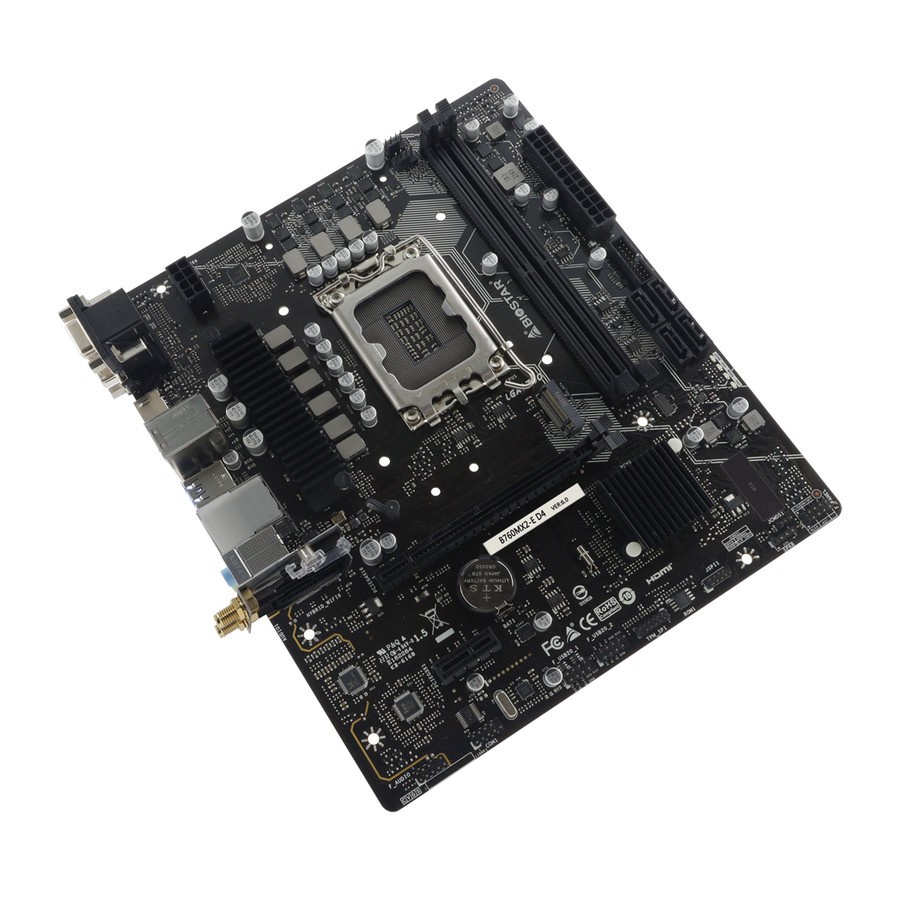

Motherboard Biostar B760MX2-E D4 - LGA1700 Micro ATX 2xDDR4

Detail Motherboard Biostar B760MX2-E D4 - LGA1700 Micro ATX 2xDDR4

Features

Supports 12th/ 13th Generation Intel Core™ Processor
Intel B760 single chip architecture
Supports 2-DIMM DDR4- 1866/ 2133/ 2400/ 2666/ 2933/ 3200/ 3600(OC)/ 3800(OC)/ 4000(OC)/ +4400(OC) up to 64 GB Memory
Supports PCIe 4.0
Supports PCIe M.2 3.0 (32Gb/s)
Supports HDMI 4K2K
Supports USB 3.2 Gen1
Support WiFi 6 & 6E module (No WiFi card included)
Supports 2.5G LAN


Specification

Chipset
Intel B760

CPU SUPPORT
Support for 12th/13th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package

MEMORY
Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200/ 3600(OC)/ 3800(OC)/ 4000(OC)/ +4400(OC)
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Support Intel® Extreme Memory Profile (XMP) memory modules

INTEGRATED VIDEO
Supports DX12
Supports HDCP

STORAGE
Total supports 1x M.2 socket and 4x SATA III (6Gb/s) ports

LAN
RTL8125B
10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC
ALC897
7.1 Channels, High Definition Audio

USB
4 x USB 3.2 (Gen1) port (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 port (4 on rear I/Os and 4 via internal headers)

EXPANSION SLOT
1 x PCIe 3.0 x1 Slot
1 x PCIe 4.0 x16 Slot

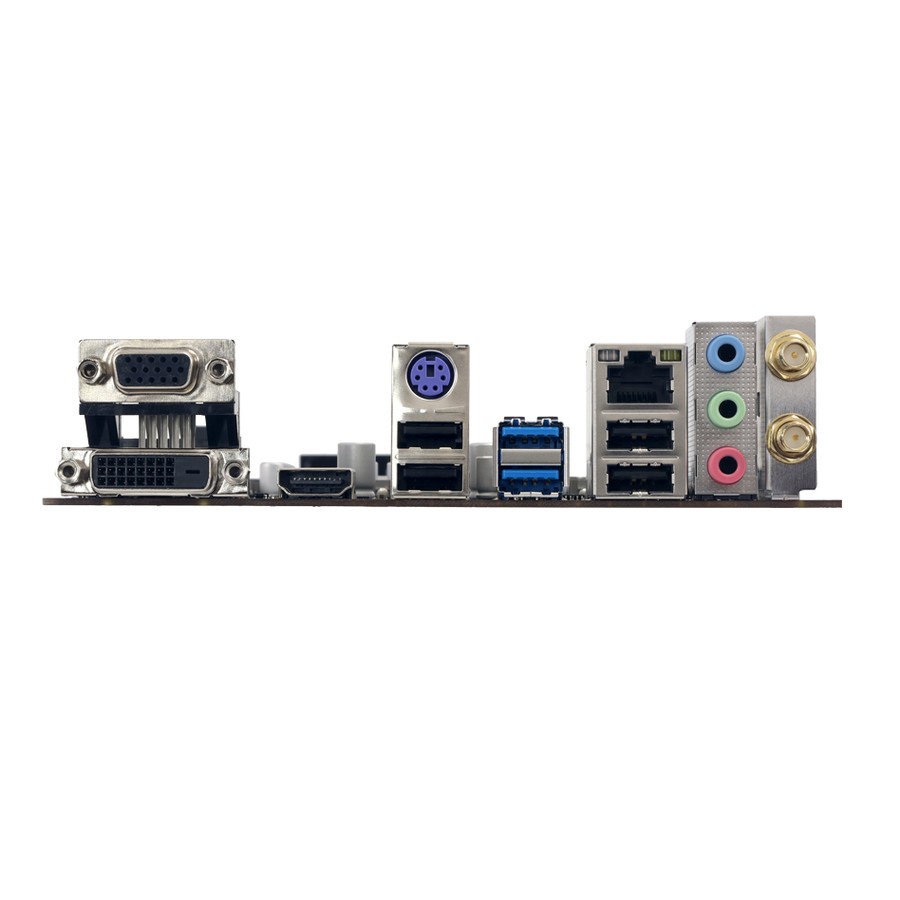

REAR I/O
1 x WIFI Antenna Port
1 x PS/2 Keyboard/ Mouse Port
1 x HDMI
1 x VGA+DVI Port
2 x USB 3.2 (Gen1) port
4 x USB 2.0 port
1 x LAN port
3 x Audio Jack

H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring

DIMENSION
Micro ATX Form Factor Dimension: 23.6cm x 20.8cm ( W x L )

OS SUPPORT
Supports Windows 10 (64bit) / 11(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE
BullGuard

ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
1 x Others
