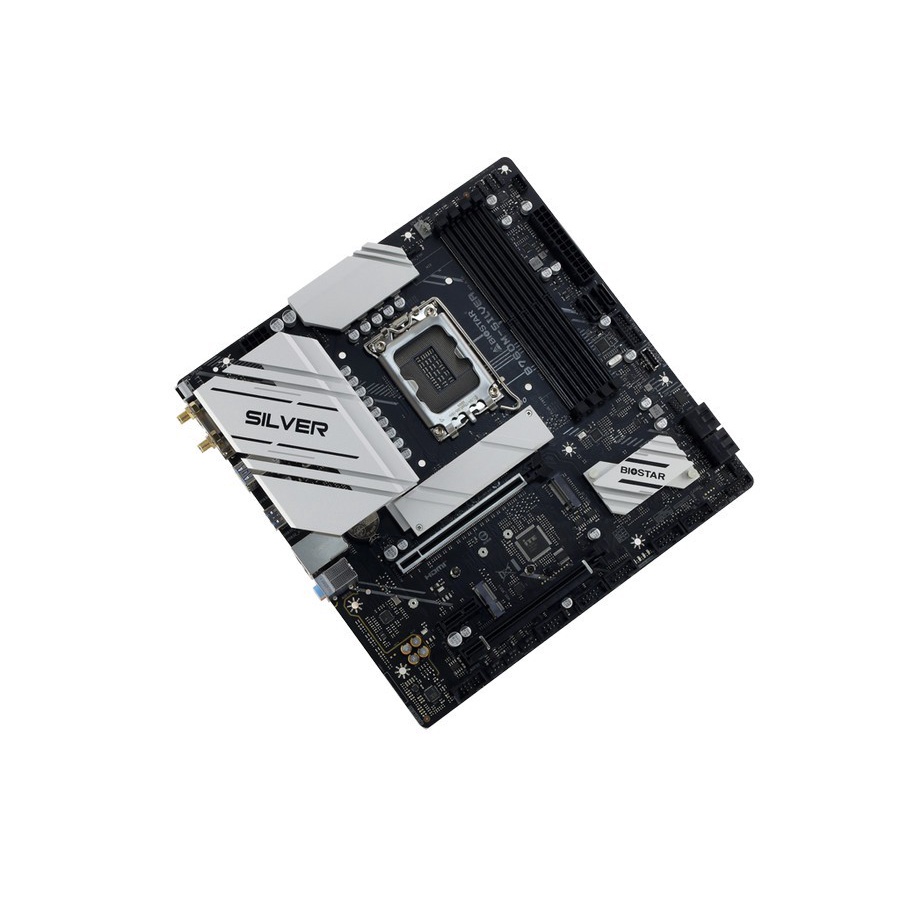

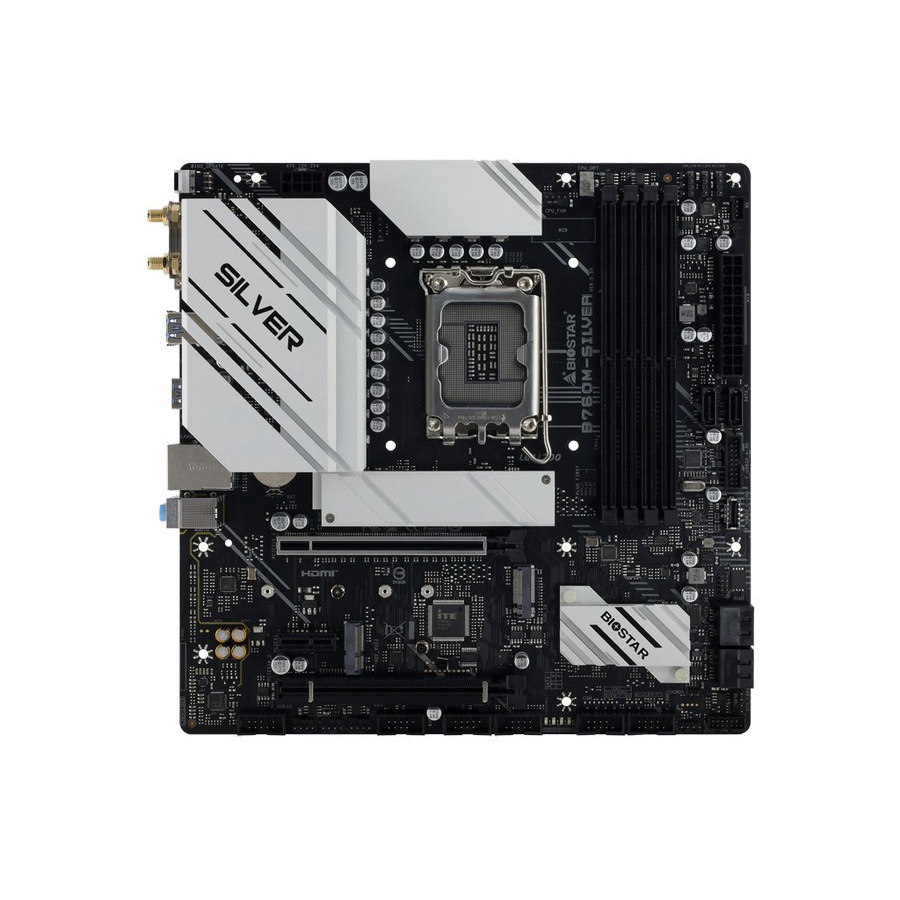

MOTHERBOARD BIOSTAR B760M-SILVER DDR5 (Intel LGA 1700, Gen12, Gen13)

Detail MOTHERBOARD BIOSTAR B760M-SILVER DDR5 (Intel LGA 1700, Gen12, Gen13)

Chipset Intel B760
CPU SUPPORT Support for 12th / 13th Generation Intel® Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package

MEMORY Supports Dual Channel DDR5- 6000+(OC) / 6000(OC) /5800(OC) / 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800
4 x DDR5 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Each DIMM supports non-ECC 8/16/32GB DDR5 module
Support Intel Extreme Memory Profile (XMP) memory modules
INTEGRATED VIDEO Supports DX12
Supports HDCP
STORAGE -- Total supports 2x M.2 socket and 6x SATA III (6Gb/s) ports
6 x SATA III Connector (6Gb/s) : Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology
1 x M.2 (M Key) Socket (M2M_CPU):
Supports M.2 Type 2280 SSD module
Supports PCI-E 4.0 x4 (64Gb/s) - NVMe SSD
1 x M.2 (M Key) Socket (M2M_SB):
Supports M.2 Type 2242/ 2260/ 2280/ 22110 SSD module
Supports PCI-E 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD & SATA lll (6Gb/s)SSD
LAN Realtek RTL8125B
10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC ALC1220
7.1 Channels, High Definition Audio, Hi-Fi(Front)
USB 2 x USB 3.2 (Gen2) Type-C port (1 on rear I/O and 1 via internal headers)
5 x USB 3.2 (Gen2) port (5 on rear I/Os)
2 x USB 3.2(Gen1) port (2 via internal headers)
6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers)
EXPANSION SLOT 1 x PCIe 3.0 x1 Slot
1 x PCIe 5.0 x16 Slot (x16 mode)
1 x PCIe 4.0 x16 Slot (x4 mode)

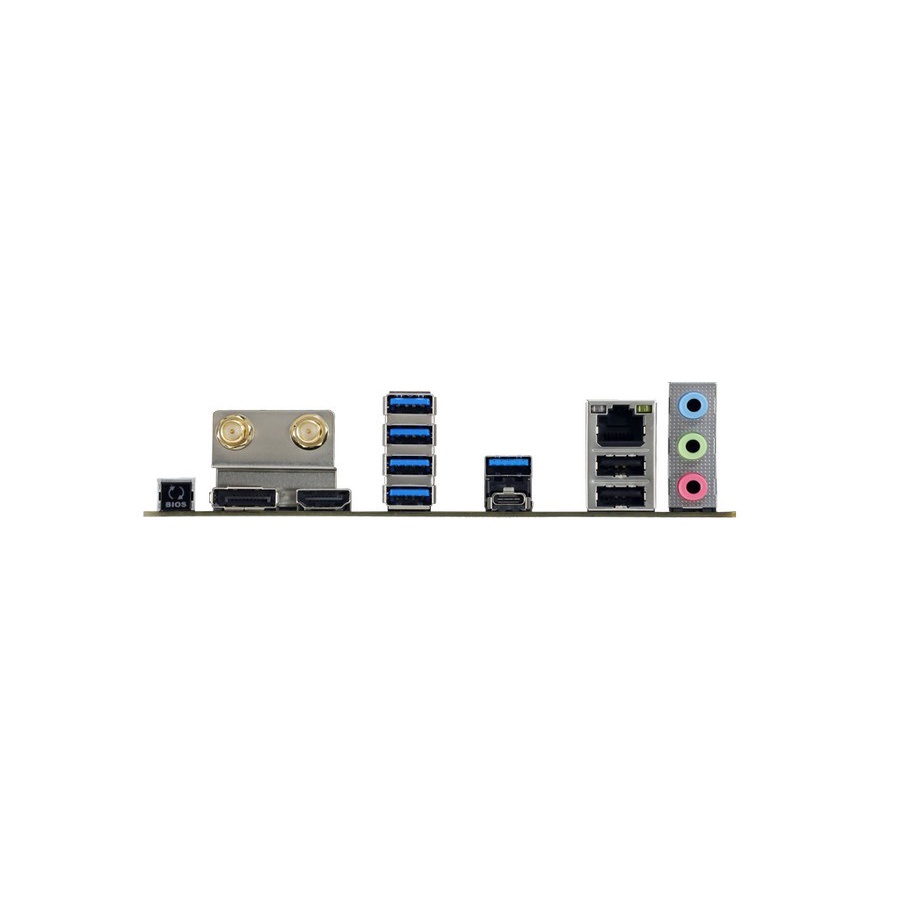

REAR I/O 2 x WIFI Antenna Port
1 x HDMI Port (HDMI2.1)
1 x DP Port (DP1.2)
1 x USB 3.2 (Gen2) Type-C Port
5 x USB 3.2 (Gen2) Port
2 x USB 2.0 port
1 x LAN port
3 x Audio Jack
1 x SMART BIOS UPDATE Button
1 x SMART BIOS USB Port
INTERNAL I/O 6 x SATA III Connector (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth

Gambar produk
