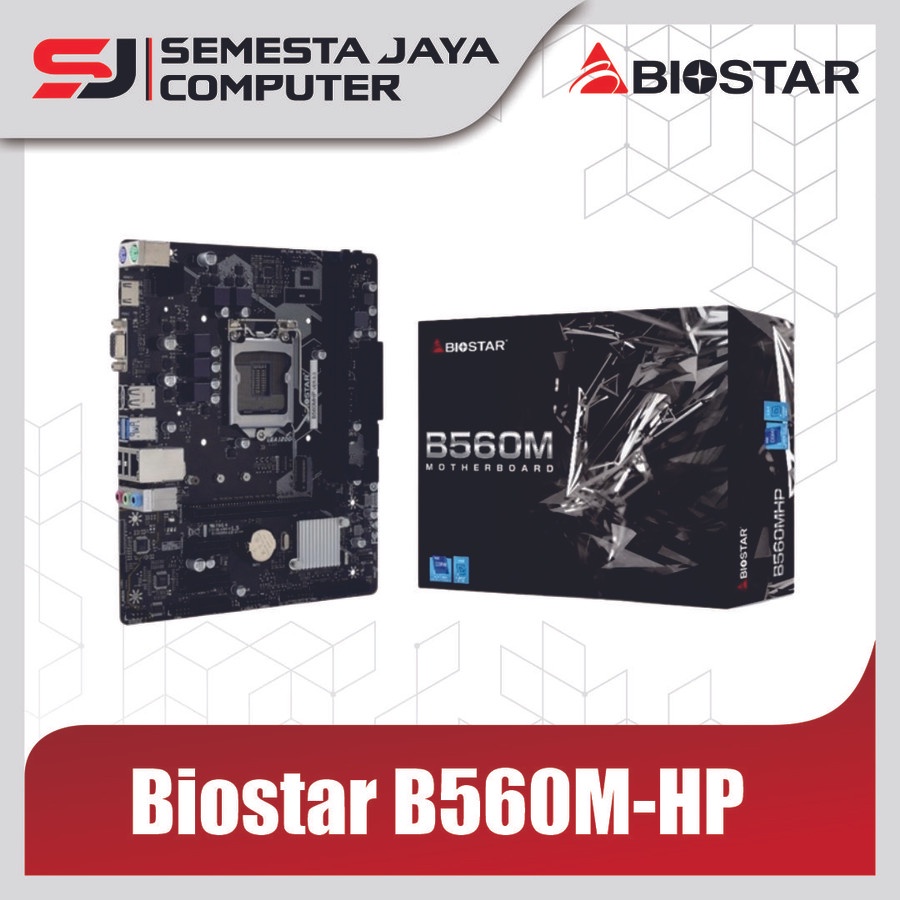

Motherboard Biostar B560MHP - [ LGA 1200, B560, DDR4, Gen10/11 ]

Detail Motherboard Biostar B560MHP - [ LGA 1200, B560, DDR4, Gen10/11 ]

Spesifikasi :
Chipset Intel B560

CPU SUPPORT Socket 1200 for 10th / 11th Gen Intel Core™, Pentium and Celeron processors

MEMORY Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
* Please refer to www.biostar.com.tw for Memory support list.

INTEGRATED VIDEO Supports DX12
Supports HDCP

STORAGE 4 x SATA III Connector (6Gb/s)
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module.
Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6Gb/s) SSD
* When using SATA SSD module on PCIE-M2_1 slot, the SATA_1 connector will be disabled.

LAN Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC Realtek ALC887
7.1 Channels, High Definition Audio

USB 4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers)
6 x USB 2.0 ports (4 on rear I/Os and 2 via internal headers)

DIMENSION Micro ATX Form Factor Dimension: 18.5cm x 22.6cm ( W x L )

OS SUPPORT Supports Windows 10 (64bit) / 11(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE BullGuard

ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide

Gambar produk
