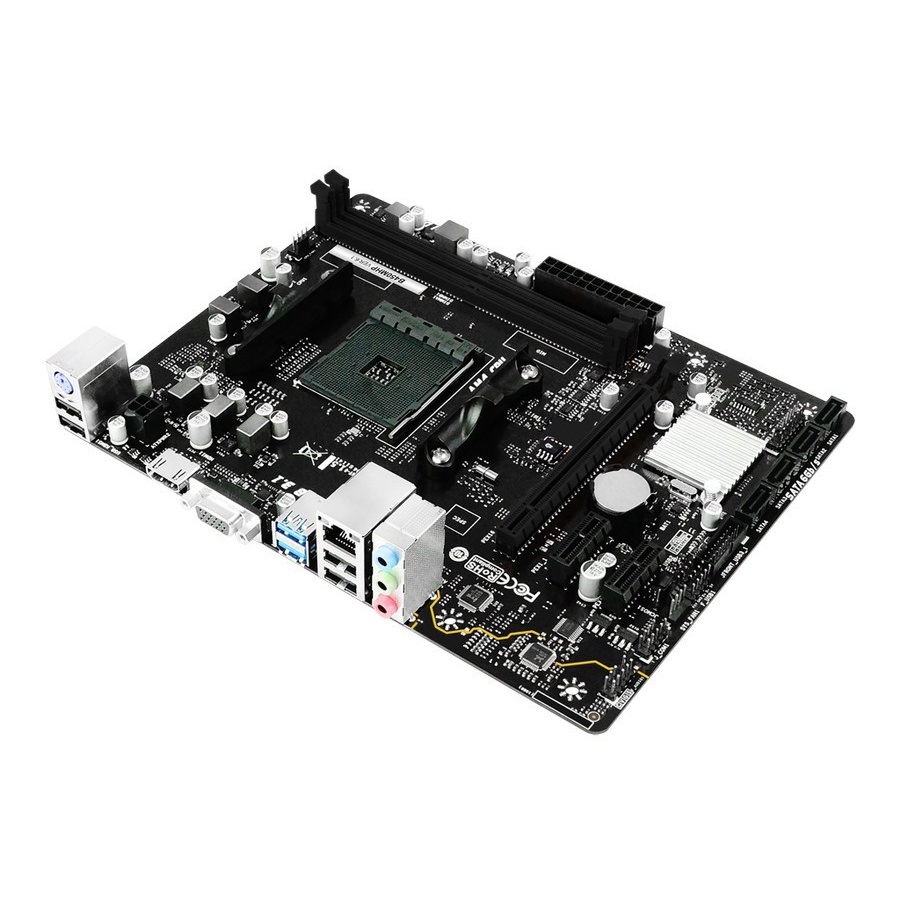

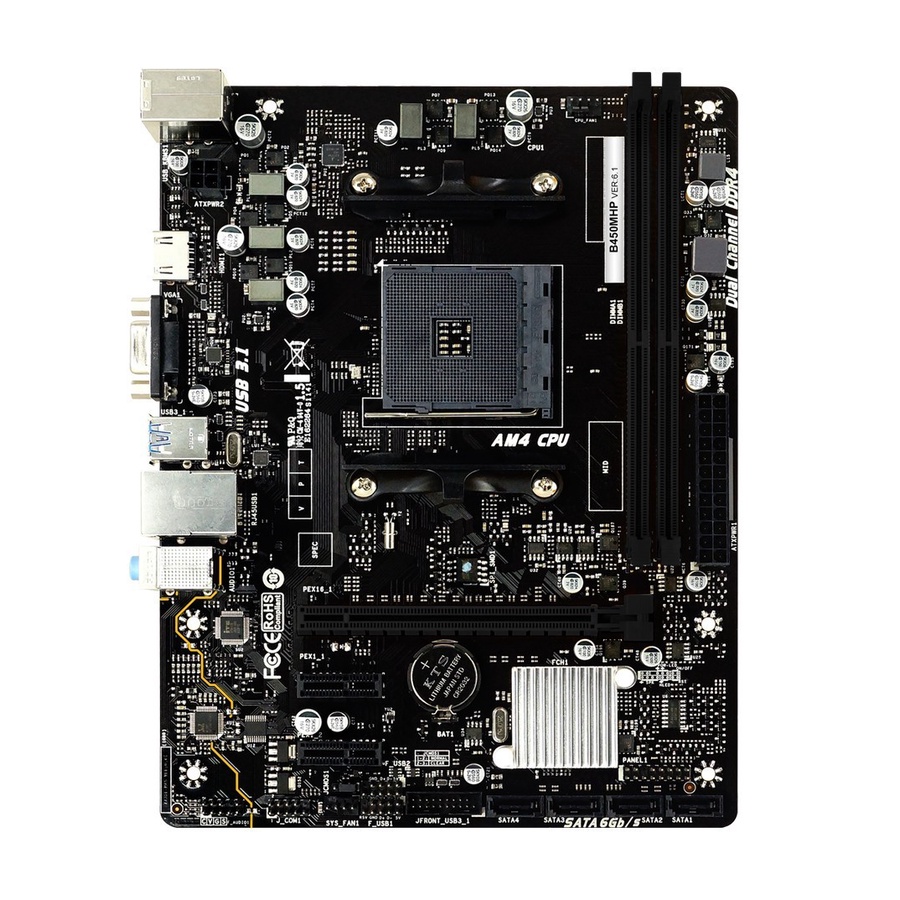

Motherboard BIOSTAR B450MHP - AMD AM4 DDR4 MicroATX Biostar B450M-HP

Detail Motherboard BIOSTAR B450MHP - AMD AM4 DDR4 MicroATX Biostar B450M-HP

Chipset AMD B450
CPU SUPPORT Socket AM4 supports AMD A-series APU, Ryzen APU / Ryzen CPU
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY Supports Dual Channel DDR4 1866/2133/2400/2666/2933/3200+(OC)
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 8/16/32 GB DDR4 module
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
STORAGE 4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10
LAN Realtek RTL8111H-VB
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC ALC897
7.1 Channels, High Definition Audio
USB 4 x USB 3.2 (Gen1) port (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 port (4 on rear I/Os and 4 via internal headers)
EXPANSION SLOT 2 x PCIe 2.0 x1 Slot
1 x PCIe 3.0 x16 Slot (The bandwidth is depended on CPU)
REAR I/O 1 x PS/2 Keyboard/ Mouse
1 x VGA Port
1 x HDMI Port
1 x LAN port
2 x USB 3.2 (Gen1) Ports
4 x USB 2.0 Ports
3 x Audio Jack
INTERNAL I/O 4 x SATA III 6.0Gb/s Connectors
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x COM Serial Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 17.4cm x 22.6cm ( W x L )
OS SUPPORT Supports Windows 7(64bit) / 10(64bit) / 11(64bit)
※BIOSTAR reserves the right to add or remove support for any OS with or without notice
BUNDLE SOFTWARE BullGuard
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES Supports 100%
