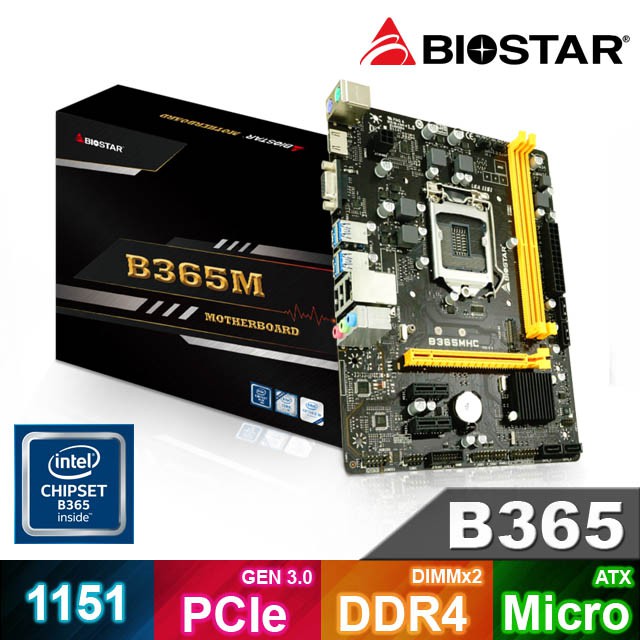

Motherboard Biostar b365mhc Micro Atx lga 1151 Intel b365 gen 8 9 ddr4 m.2 sata3 usb 3.1 - Mainboard Lga1151

Detail Motherboard Biostar b365mhc Micro Atx lga 1151 Intel b365 gen 8 9 ddr4 m.2 sata3 usb 3.1 - Mainboard Lga1151

-Chipset
Intel B365

-CPU SUPPORT
Socket 1151 for 9th and 8th Gen Intel Core, Pentium and Celeron processors
Maximum CPU TDP (Thermal Design Power): 95 Watt
*9th & 8th Generation Intel® CoreTM Processor Family only support 300-Series.

-MEMORY
Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666 MHz
2 x DDR4 DIMM Memory Slots
Max. Supports up to 32GB Memory
Each DIMM supports non-ECC 4/8/16GB DDR4 module

-INTEGRATED VIDEO
By CPU model
Supports DX12
Supports HDCP

-STORAGE
4 x SATA3 Connectors (6Gb/s)
1 x M.2 Key M 32Gb/s Connector: Supports PCI-E & SATA SSD, Intel Optane Technology

-LAN
Realtek RTL8111H - 10/100/1000Mb/s Controller

-CODEC
Realtek ALC887 8-Channel HD Audio
Supports HD Audio

-USB
6 x USB 3.1 Gen1 Ports (4 on rear I/Os and 2 via internal headers)
6 x USB 2.0 Ports (2 on rear I/Os and 4 via internal headers)

-EXPANSION SLOT
1 x PCI-E 3.0 x16 Slot
2 x PCI-E 3.0 x1 Slots

-REAR I/O
1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 3.1 Gen1 Ports
2 x USB 2.0 Ports
1 x HDMI Connector
1 x VGA Port
1 x LAN port
3 x Audio Jacks

-INTERNAL I/O
1 x USB 3.1 Gen1 Header (each header supports 2 USB 3.1 Gen1 ports)
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
4 x SATA3 6Gb/s Connectors
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x Clear CMOS Header
1 x COM Port Header

-DIMENSION
Micro ATX Form Factor Dimension: 22.8cm x 17.7 cm ( W x L )

-ACCESSORIES
2 x SATA Cables
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide

-OS SUPPORT
Supports Windows 10(64bit)

Gambar produk
