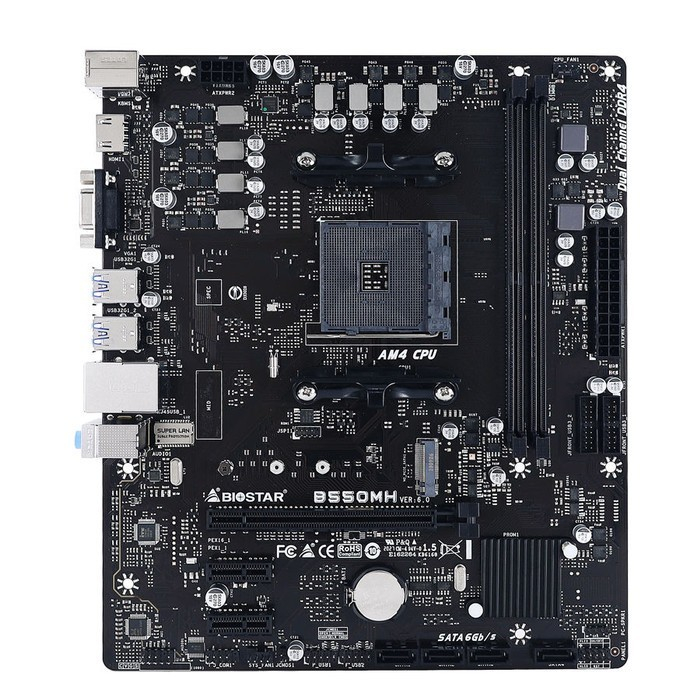

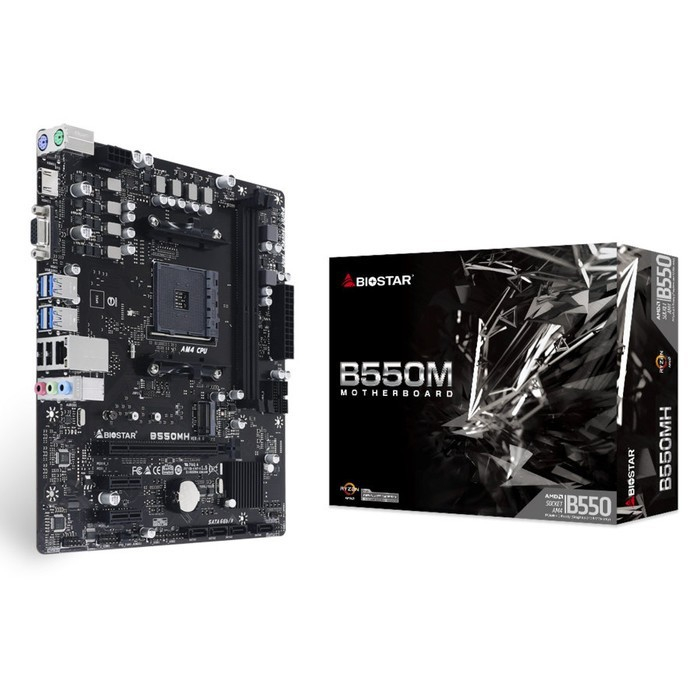

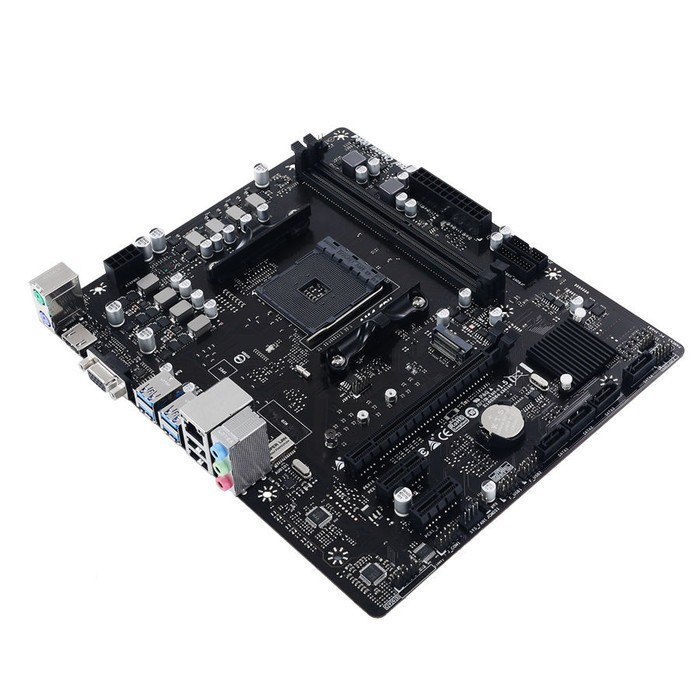

Motherboard Biostar AMD B550MH Socket AM4 DDR4 M-ATX

Detail Motherboard Biostar AMD B550MH Socket AM4 DDR4 M-ATX

GARANSI 3TAHUN
✔ Supports AMD Ryzen 3rd Gen (Matisse/ Renoir) and 4th Gen (Vermeer) processors
✔ AMD B550 single chip architecture
✔ Supports USB 3.2 Gen1
✔ Supports PCIe M.2 4.0 (64Gb/s)
✔ Supports HDMI 4K resolution

✔ Garansi Resmi NJT 3 Tahun

Chipset : AMD B550

CPU SUPPORT
Socket AM4 support AMD 3rd Gen Ryzen™ (Matisse/ Renoir) processors and Ryzen™ 4th Gen (Vermeer) processors
Support for future AMD Ryzen processors with BIOS update

MEMORY
4th Gen AMD Ryzen Processors (Vermeer CPUs/ Future APUs): Supports Dual Channel DDR4 4400+~3600(OC)/3200/2933/2667/2400/2133
3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+~3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+~3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory


STORAGE
4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCIe 4.0 x 4 (64Gb/s)/ 3.0 x 4 (32Gb/s)
Supports SATA III (6.0Gb/s) SSD
* M.2 (M Key) Socket (M2_PCIe-SATA1):
The bandwidth is depended on CPU.
Supports PCIe 4.0 x 4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse.

LAN
Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Supports Super LAN Surge Protection

OS SUPPORT
Supports Windows 10(64bit) / 11(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice

DIMENSION
Micro ATX Form Factor Dimension: 24.4cm x 20.8cm(WxL)
