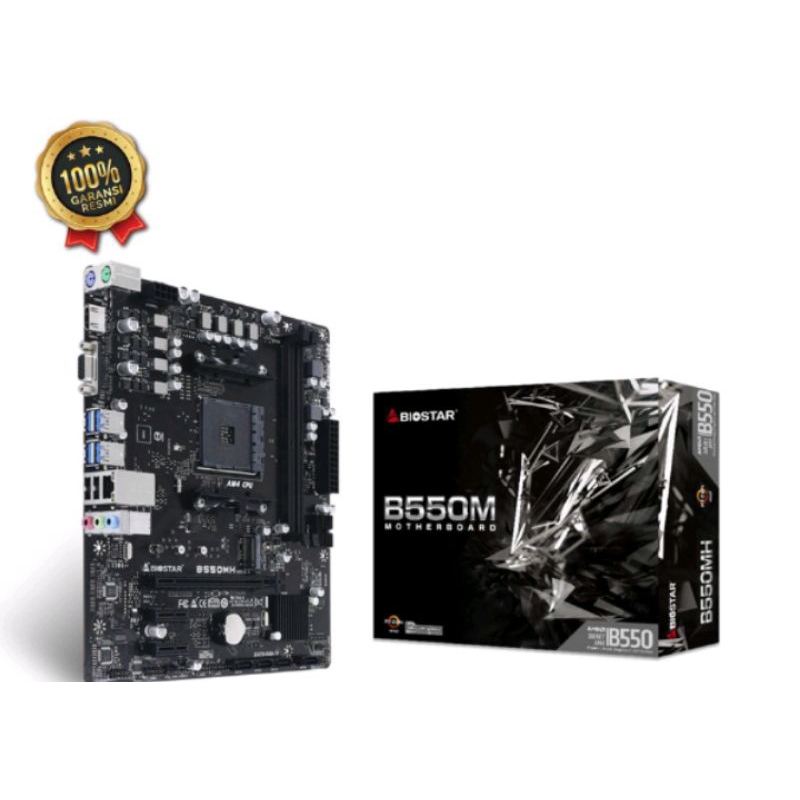

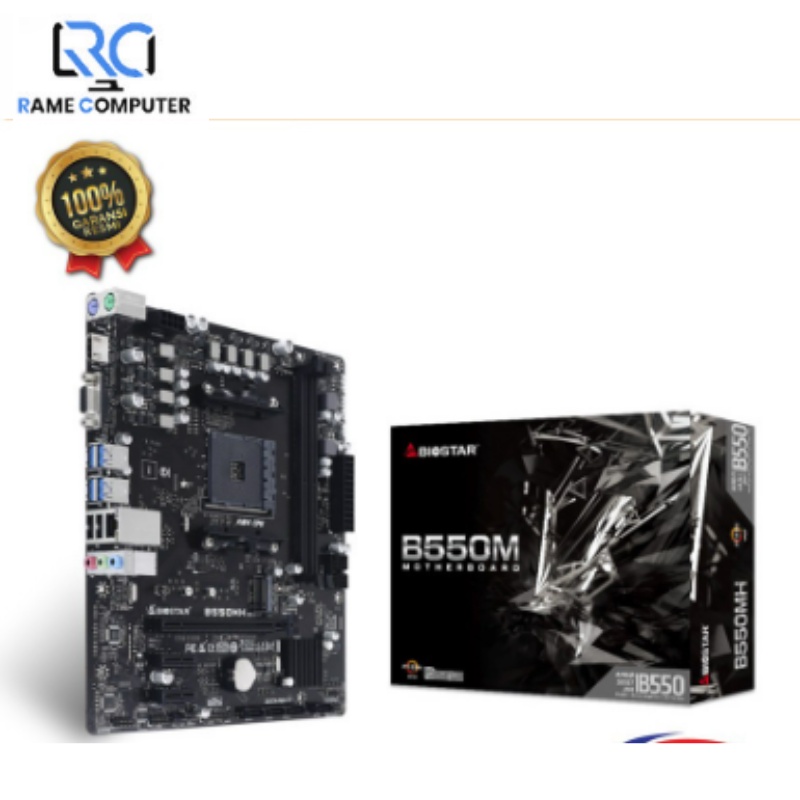

MOTHERBOARD BIOSTAR AMD B550MH Chipset AMD B550 Socket AM4 2 x DDR4 Micro ATX

Detail MOTHERBOARD BIOSTAR AMD B550MH Chipset AMD B550 Socket AM4 2 x DDR4 Micro ATX

Spesifikasi :
Chipset AMD B550

CPU SUPPORT Socket AM4 support AMD 3rd Gen Ryzen™ (Matisse/ Renoir) processors and Ryzen™ 4th Gen (Vermeer) processors
Support for future AMD Ryzen processors with BIOS update

MEMORY 4th Gen AMD Ryzen Processors (Vermeer CPUs/ Future APUs):
Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC and ECC Un-buffered 8/ 16/ 32 GB DDR4 module


INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP

STORAGE 4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCIe 4.0 x 4 (64Gb/s)/ 3.0 x 4 (32Gb/s)
Supports SATA III (6.0Gb/s) SSD
* M.2 (M Key) Socket (M2_PCIe-SATA1):
The bandwidth is depended on CPU.
Supports PCIe 4.0 x 4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse.

LAN Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Supports Super LAN Surge Protection

DIMENSION Micro ATX Form Factor Dimension: 24.4cm x 20.8cm ( W x L )

OS SUPPORT Supports Windows 10(64bit) / 11(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice

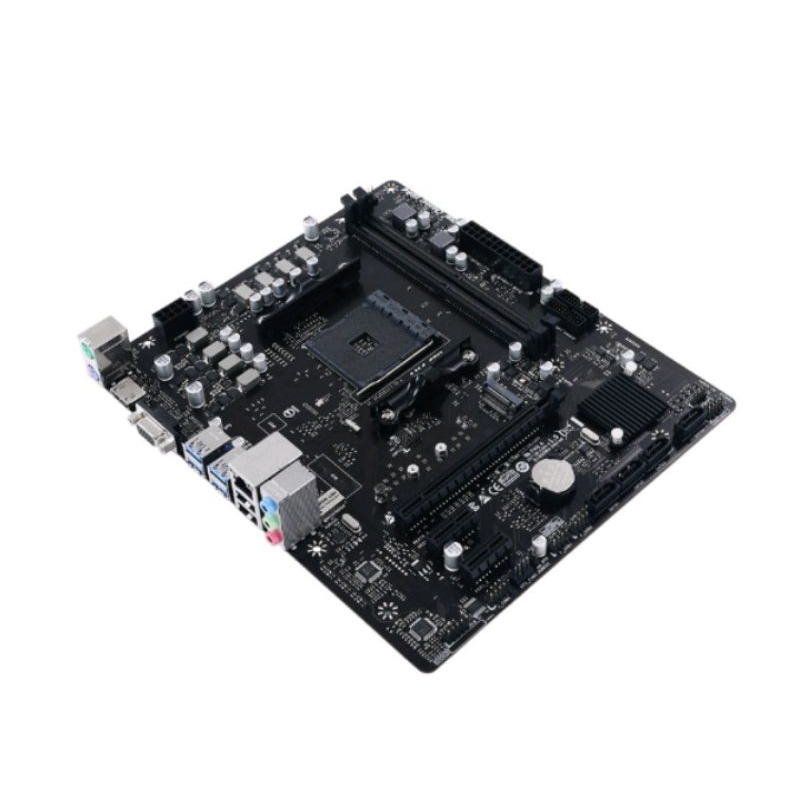

Gambar produk
