Motherboard Biostar AMD A520MH Socket AM4 DDR4 M-ATX

Merek: Biostar | Lihat selengkapnya produk Komputer & Aksesoris dari Biostar
Komputer & Aksesoris > Komponen Desktop & Laptop > Motherboard > Motherboard Biostar AMD A520MH Socket AM4 DDR4 M-ATX
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Motherboard Biostar AMD A520MH Socket AM4 DDR4 M-ATX

GARANSI 3TAHUN
Chipset AMD A520
CPU SUPPORT Socket AM4 support AMD 3rd Gen Ryzen™ (Matisse/ Renoir) processors and Ryzen™ 4th Gen (Vermeer) processors
Support for future AMD Ryzen processors with BIOS update

MEMORY 3rd Gen AMD Ryzen Processors (Matisse CPUs)
Supports for DDR4 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200/ 2933 / 2667 / 2400 / 2133 / 1866
3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs)
Supports for DDR4 4933+(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module
* DDR4 - 2667 only for Ryzen CPU.

INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
STORAGE 4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCIe 3.0 x 4 (32Gb/s) - NVMe/ AHCI SSD
Supports SATA III (6.0Gb/s) SSD
LAN Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Supports Super LAN Surge Protection
AUDIO CODEC ALC887
7.1 Channels, High Definition Audio, Hi-Fi (Front)
USB 6 x USB 3.2 (Gen1) ports (4 on rear I/Os and 2 via internal headers)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)
EXPANSION SLOT 1 x PCIe 3.0 x 16 Slot:
Supports PCIe 3.0 x 16 mode with AMD Ryzen™ processors. (Matisse only)
Supports PCIe 3.0 x 16 mode AMD Ryzen™ with Radeon Vega Graphics processors. (Renoir only)
2 x PCIe 3.0 x 1 Slots
* According to different CPUs will have different speeds.

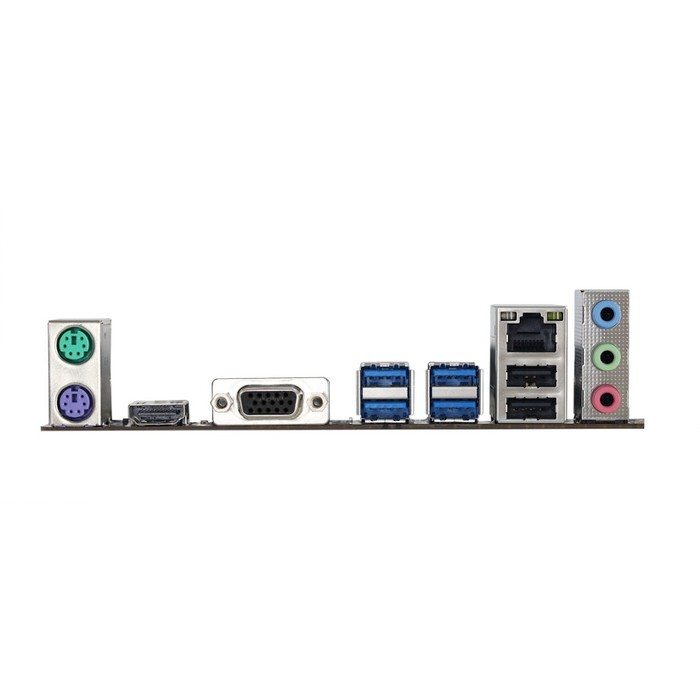

REAR I/O 1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x HDMI Port
1 x VGA Port
1 x LAN port
4 x USB 3.2 (Gen1) Ports
2 x USB 2.0 Ports
3 x Audio Jack

Gambar produk

Motherboard Biostar AMD A520MH Socket AM4 DDR4 M-ATX
Motherboard Biostar AMD A520MH Socket AM4 DDR4 M-ATX
Motherboard Biostar AMD A520MH Socket AM4 DDR4 M-ATX
Motherboard Biostar AMD A520MH Socket AM4 DDR4 M-ATX
Motherboard Biostar AMD A520MH Socket AM4 DDR4 M-ATX
Motherboard Biostar AMD A520MH Socket AM4 DDR4 M-ATX
Motherboard Biostar AMD A520MH Socket AM4 DDR4 M-ATX
Motherboard Biostar AMD A520MH Socket AM4 DDR4 M-ATX
