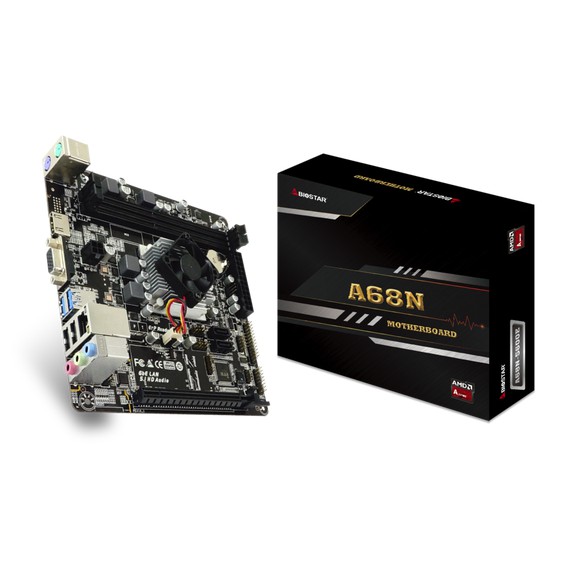

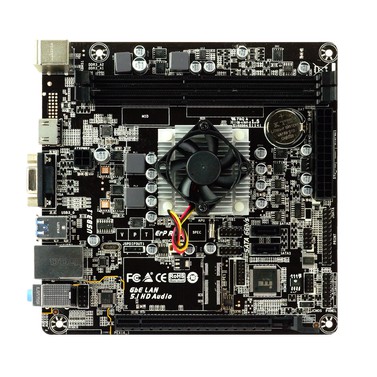

Motherboard Biostar A68N-5600E Built-up CPU AMD PRO A4-3350B Quad Core Carrizo-L sata3 ddr3 r4 radeon - mainboard

Detail Motherboard Biostar A68N-5600E Built-up CPU AMD PRO A4-3350B Quad Core Carrizo-L sata3 ddr3 r4 radeon - mainboard

- Chipset
Carrizo-L

- CPU
AMD PRO A4-3350B Processor
(Quad core 2.0GHz up to 2.4GHz, 15W)

- MEMORY
Supports Single Channel DDR3 800/1066/1333/1600 MHz DDR3L 800/1066/1333 MHz
2 x DDR3 & DDR3L DIMM Memory Slots
Max. Supports up to 16GB Memory
Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3 & DDR3L module

- INTEGRATED VIDEO
AMD Radeon™ R4 Graphics
Supports HDCP

- STORAGE
2 x SATA3 Connector (6Gb/s) : Supports AHCI

- LAN
Realtek RTL8111H – 10/100/1000Mb/s Controller

- CODEC
Realtek ALC887 5.1-Channel Audio
Support HD Audio
Support SPDIF_out

- USB
2 x USB 3.1 Gen1 Port (2 on rear I/Os)
6 x USB 2.0 Port (2 on rear I/Os and 4 via internal header)

- EXPANSION SLOT
1 x PCI-E 2.0 x16 Slot (x4)

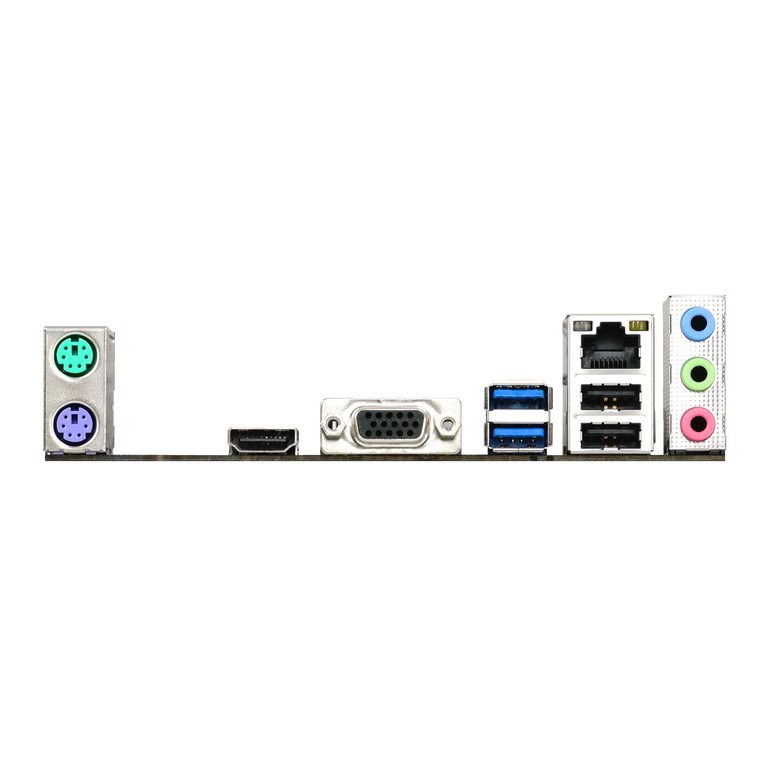

- REAR I/O
1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.1 Gen1 Ports
2 x USB 2.0 Ports
1 x HDMI Connector
1 x VGA Port
1 x LAN port
3 x Audio Jacks

- INTERNAL I/O
2 x USB 2.0 Header (each header support 2 USB 2.0 ports)
2 x SATA3 6Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-Out Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x TPM Header
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x Clear CMOS Header
1 x COM Port Header
1 x Printer Port Header

- DIMENSION
Mini ITX Form Factor Dimension: 17 cm x 17 cm ( W x L )

- OS SUPPORT
Support Windows 7 / 10

READY!
