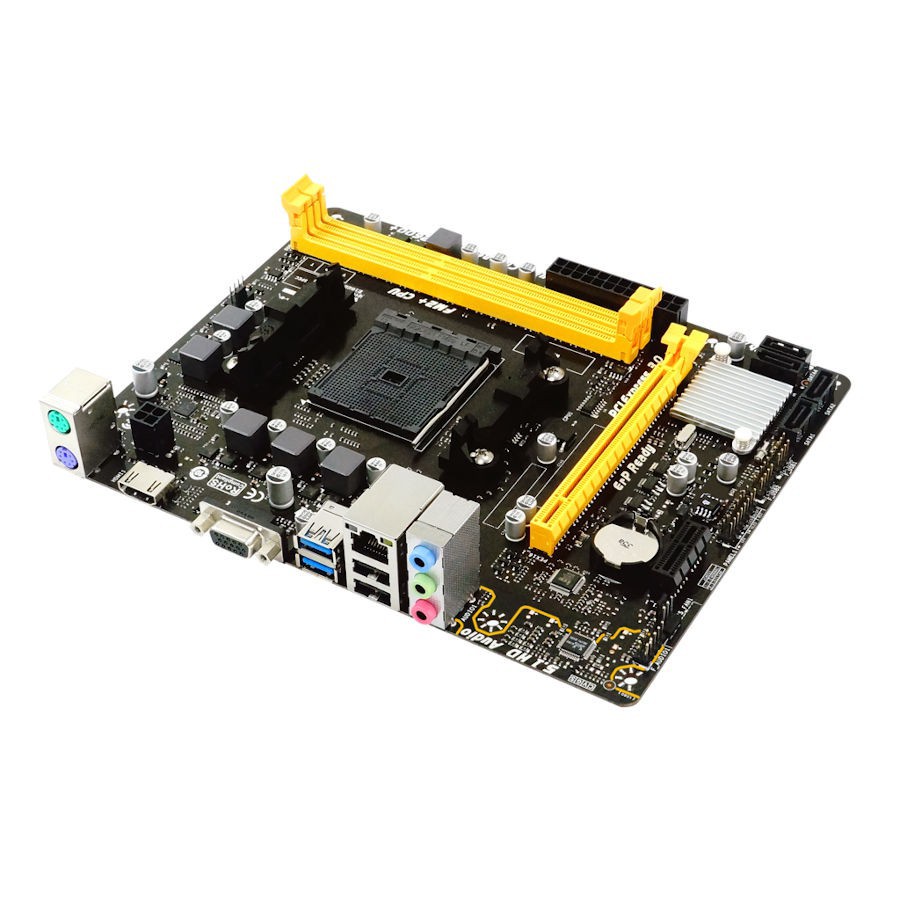

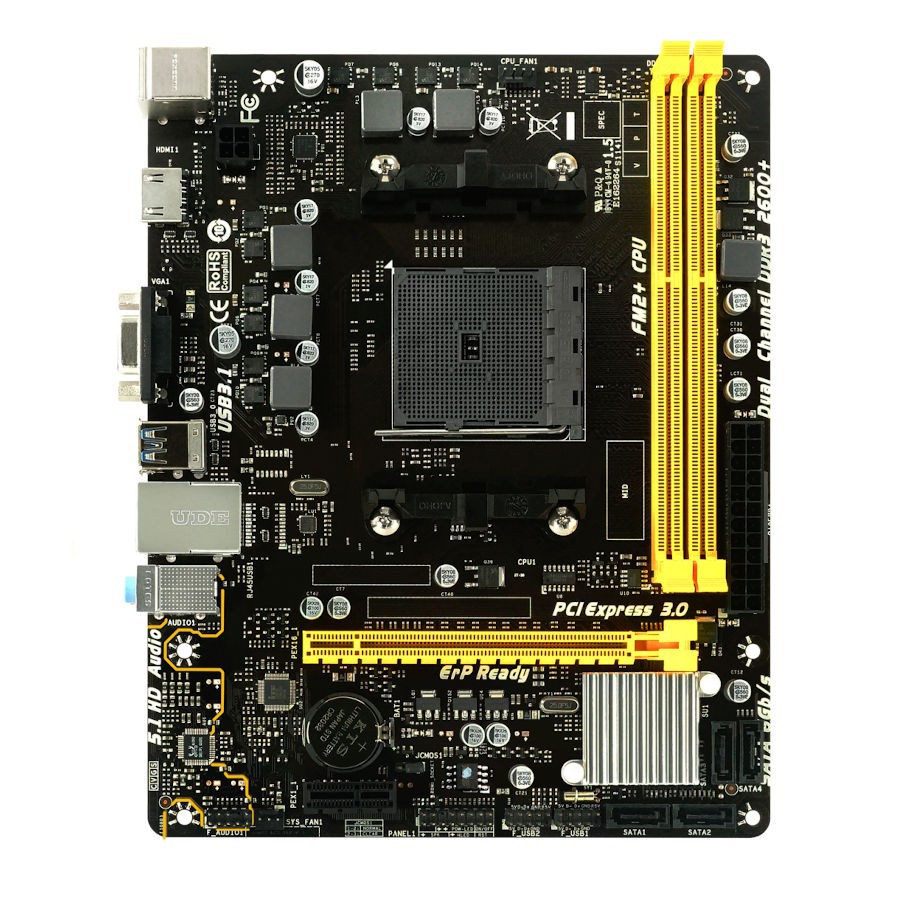

MOTHERBOARD BIOSTAR A68MHE AMD A68H FM2+ DDR3 Micro ATX

Detail MOTHERBOARD BIOSTAR A68MHE AMD A68H FM2+ DDR3 Micro ATX

FEATURES
Support AMD Socket FM2+ Athlon™/A- Series Processors
AMD AMD A68H Chipset
Support 2-DIMM DDR3-2600(OC) up to 32G maximum capacity
Support USB 3.1
Support HDMI
Support GbE LAN
AMD Dual Graphics Technology

TECH SPECS
Chipset: AMD A68H
CPU SUPPORT: AMD FM2+ A-series APU, Maximum CPU TDP (Thermal Design Power): 100Watt
MEMORY: Support Dual Channel DDR3 800/ 1066/ 1333/ 1600/ 1866/ 2133/ 2400(OC)/ 2600(OC) MHz; 2 x DDR3 DIMM Memory Slot; Max. Supports up to 32GB Memory
INTEGRATED VIDEO: By CPU model
STORAGE: 4 x SATA3 Connector; Support SATA RAID: 0,1,10
LAN: Realtek RTL8111G - 10/100/1000 Controller
CODEC: Realtek ALC662 6-Channel HD Audio
USB: 2 x USB 3.1 Gen1 Port (5Gb/s) (2 on rear I/Os), 6 x USB 2.0 Port(2 on rear I/Os and 4 via internal headers)
EXPANSION SLOT: 1 x PCI-E 3.0 x16 Slot, 1 x PCI-E 2.0 x1 Slot
REAR I/O: 1 x PS/2 Mouse, 1 x PS/2 Keyboard, 2 x USB 3.1 Gen1 (5Gb/s) Port, 2 x USB 2.0 Port, 1 x HDMI Connector, 1 x VGA Port, 1 x LAN Port, 3 x Audio Jacks
INTERNAL I/O: 2 x USB 2.0 Header(each header supports 2 USB 2.0 ports), 4 x SATA III Connector (6Gb/s), 1 x Front Audio Header, 1 x Front Panel Header, 1 x CPU Fan Connector, 1 x System Fan Connector, 1 x 4-Pin Power Connector, 1 x 24-Pin Power Connector, 1 x Clear CMOS Header
DIMENSION: Micro ATX Form Factor Dimension: 21.5 cm x 17 cm ( W x L )
BUNDLE SOFTWARE: BullGuard
