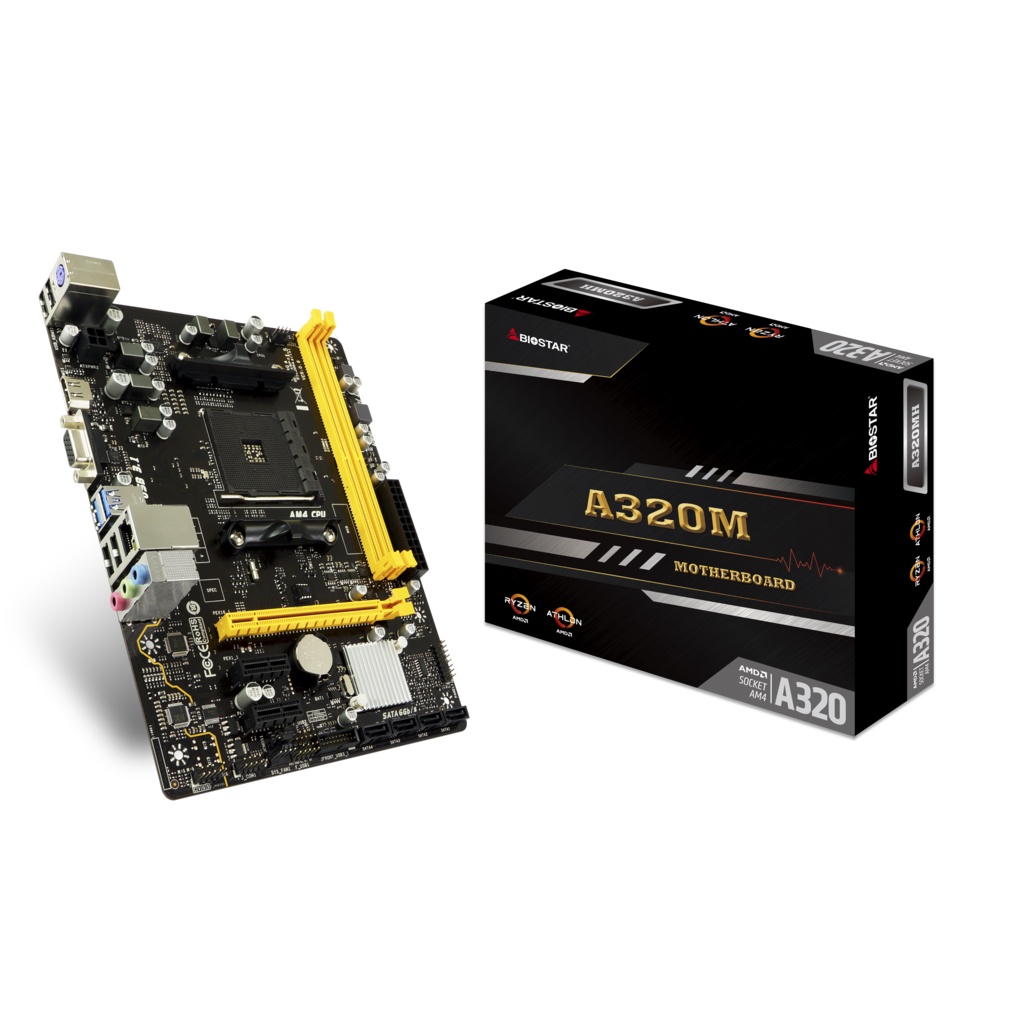

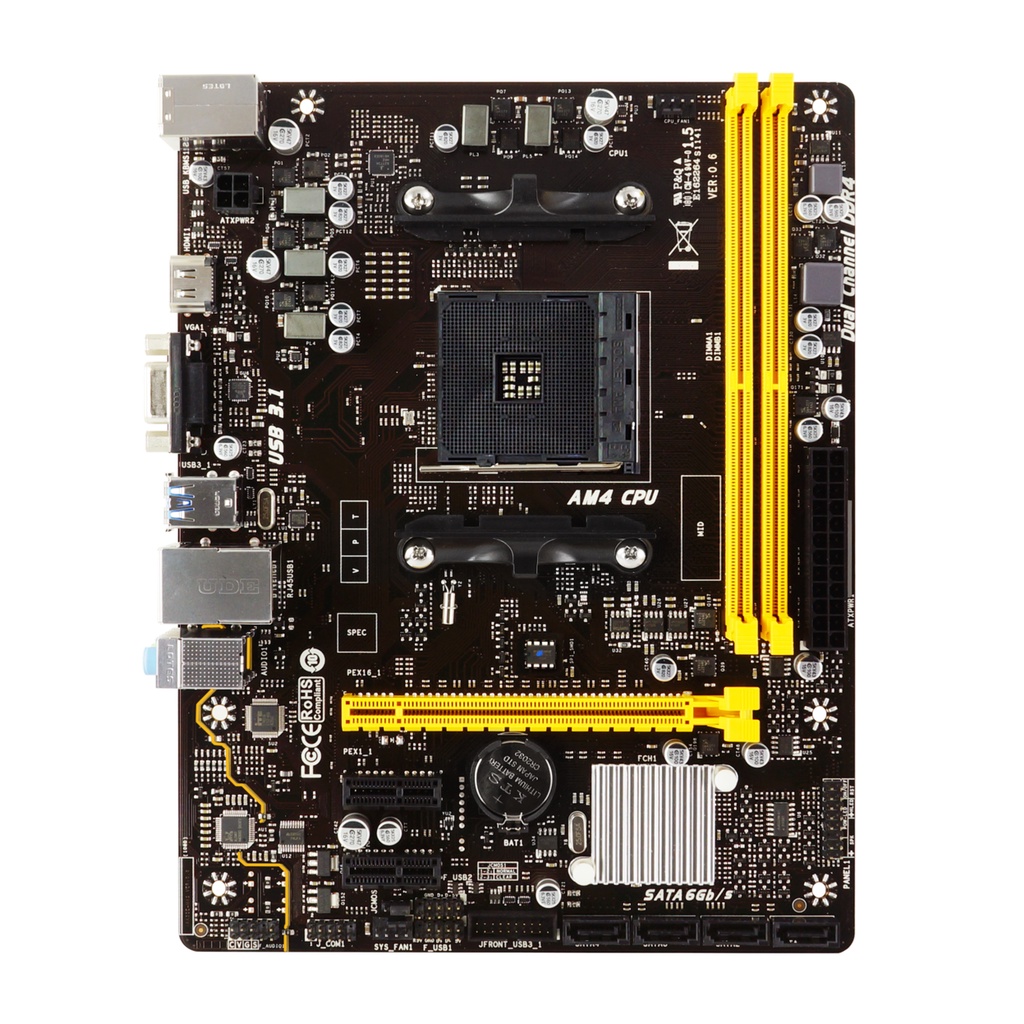

Motherboard Biostar A320MH Ver. 6.x

Detail Motherboard Biostar A320MH Ver. 6.x

A320MH Ver. 6.x
Socket : AM4

- Support AMD Ryzen CPU / APU
- AMD A320 single chip architecture
- Support 2-DIMM DDR4-2933/2667/2400/2133/1866 up to 32G maximum capacity
- Support HDMI
- Support USB 3.2 Gen1

Specification:
Chipset
AMD A320

CPU SUPPORT
Supports AMD AM4 Socket for 3rd, 2nd and 1st Gen Ryzen/2nd and 1st Gen Ryzen with Radeon Vega
Graphics/Athlon with Radeon Vega Graphics/7th Gen A-Series/Athlon X4 Processors

MEMORY
Support Dual Channel DDR4 2933/2667/2400/2133/1866 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
Each DIMM supports non-ECC 8/16 GB DDR4 module
※DDR4 - 2933 only for AMD Ryzen CPU
※DDR4 speed depends on CPU type
※Please refer to www.biostar.com.tw for Memory support list

INTEGRATED VIDEO
By CPU model
Supports DX12
Supports HDCP

STORAGE
4 x SATA III Connectors (6Gb/s)
Support SATA RAID: 0,1,10

LAN
Realtek RTL 8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC
Realtek ALC887
7.1 Channels, High Definition Audio

USB
4 x USB 3.2 Gen1 ports (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)

EXPANSION SLOT
2 x PCIe 2.0 x1 Slots
1 x PCIe 3.0 x16 Slot (When using APU, the bandwidth is x8 speed)

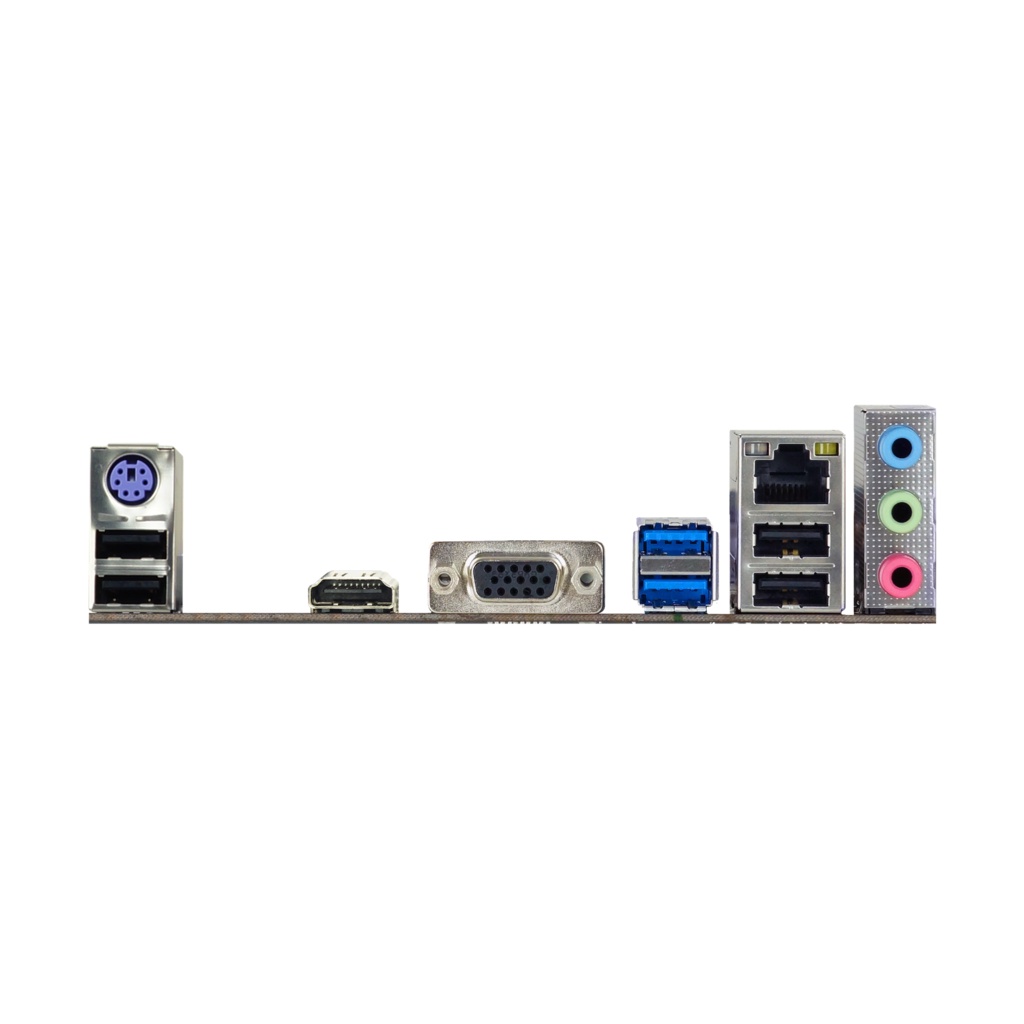

REAR I/O
1 x PS/2 Keyboard / Mouse
1 x VGA Port
1 x HDMI Port
1 x LAN port
2 x USB 3.2 Gen1 (5Gb/s) Ports
4 x USB 2.0 Ports
3 x Audio Jack

INTERNAL I/O
4 x SATA III 6Gb/s Connectors
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 (5Gb/s) Header (each header supports 2 USB 3.2 Gen1 ports)
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x COM Serial Header
1 x Clear CMOS Header

H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring

DIMENSION
Micro ATX Form Factor Dimension: 22.6cm x 17.4cm ( W x L )

OS SUPPORT
Supports Windows 7(64bit) for Bristol / Summit /Pinnacle Ridge only
※Supports Windows 10(64bit) / 11(64bit)
※BIOSTAR reserves the right to add or remove support for any OS with or without notice

BUNDLE SOFTWARE BullGuard
Smart Speed LAN(Windows 7 only)

ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide

FEATURES
Supports 100% Solid capacitor
BIO-FLASHER
Supports BIOS Online Update
