Moondrop Earphone IEM CHU High Perfomance Dynamic Driver - Garansi Resmi 1 Tahun Casei

Detail Moondrop Earphone IEM CHU High Perfomance Dynamic Driver - Garansi Resmi 1 Tahun Casei

Moondrop Earphone IEM CHU High Perfomance Dynamic Driver - Garansi Resmi 1 Tahun Casei
No Mic
Mic
-------------------

Garansi 12 Bulan Resmi

Isi Dalam kemasan:
1x Earphone

Fitur Utama:
Nano-Crystal Coating Composite Diaphragm
10mm Composite Cavity Dynamic Structure：Adopting the Aria's decentralized dynamic structure, the high-performance 10mm composite cavity with high-frequency phased waveguide leverages a N52 Nd magnet internal magnetic circuit and 0.035m ultra-thin imported CCAW sound coil to obtain high energy conversion efficiency, and deliver outstanding performance with full dynamic range and rich details.

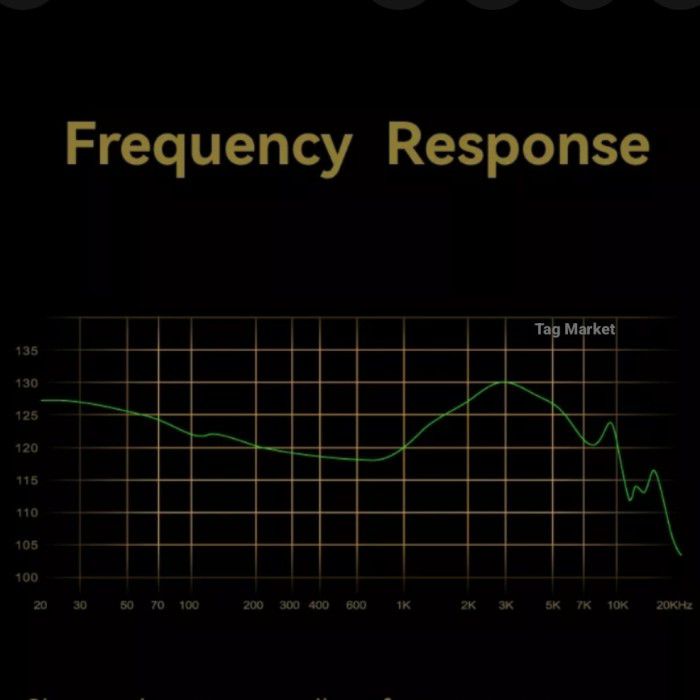

Accurate Calculatioof Acoustic Coupling Cavity：In order to match the frequency response as closely as possible to the VDSF Target Response, the acoustic coupling cavity needs to be carefully controlled. Through volume and dimension calculation, FEA finite element simulation and 3D printing experiment verification, an acoustic coupling cavity has been created which can accurately reproduce the ideal frequency response.
Alloy Casting External Cavity：The metal outer cavity is manufactured from alloy materials using melting and injection molding technology, thus creating a stable, precise, and esthetically pleasing cavity that is both durable and reliable.

Spesifikasi:
Model: Chu high-performance dynamic earphone
Material：Zinc alloy
Driver: 10mm high-performance dynamic driver
Diaphragm material: Titanium-coated
Sound coil: 0.035mm ultra-fine black CCAW
Magnetic circuit: N52 neodymium magnetic
high-performance internal magnetic circuit
Acoustic filter: Patented anti-blocking (anti-imbalanced) acoustic filter
Sensitivity: 120dB/Vrms @1KHz)
Impedance: 28Ω±15% (@1khz)
THD: THD@1 KHz≤1%
Frequency range: 10Hz-35kHz (EC61094, Free Field)

Gambar produk
