HSAirpo CP320 2.4Ghz Wireless Outdoor

Detail HSAirpo CP320 2.4Ghz Wireless Outdoor

WIRELESS OUTDOOR 2.4Ghz HARGA EKONOMIS, CHIPSET MENGGUNAKAN QUALCOM ATHEROS !!!

CP320 adalah WISP CPE Solution yang dirancang khusus untuk transmisi nirkabel jarak jauh. Dengan dua antena gain tinggi 14dBi internal dan arsitektur radio canggih, itu dapat membuat jangkauan transmisi sinyal radio lebih luas dengan koneksi nirkabel yang stabil dan memberikan kecepatan data hingga 300Mbps. Didukung oleh Pasif PoE, CP320 membuat penyebaran kabel lebih fleksibel.

Fetures :
- Complies with IEEE802.11n /g/b standards on 2.4G band.
- RF power up to 500mw.
- Supports DHCP/Static IP/ PPPoE(dual access)/PPTP(dual access) broadband functions.
- Two 14dBi internal antennas.
- 4 LED signal strength indications.
- Water-proof housing (IP65).
- Supports 64/128 bit WEP encryption and WPA, WPA2, WPA-Mixed security.
- Supports passive PoE power supply.
- Lightning protection design.

Specification :
Hardware
Chipset AR9341
flash Default 8MB SPI Nor Flash
Sdram Default 64MB SDRAM
Interface 2 *100BaseTX (Auto MDI/MDIX) LAN Port (Passive PoE Supported)
Power Supply 24V DC /0.5A (PoE)
Antenna 2 *14dBi internal antennas

Software
Wireless Mode AP Mode
Repeater Mode
Station Mode
Network LAN Setting
Static DHCP Setup
Wireless Basic Setting
Advanced Setting
Country Region
Band
Channel
DFS
TX/RX Chain
Distance
RF output power

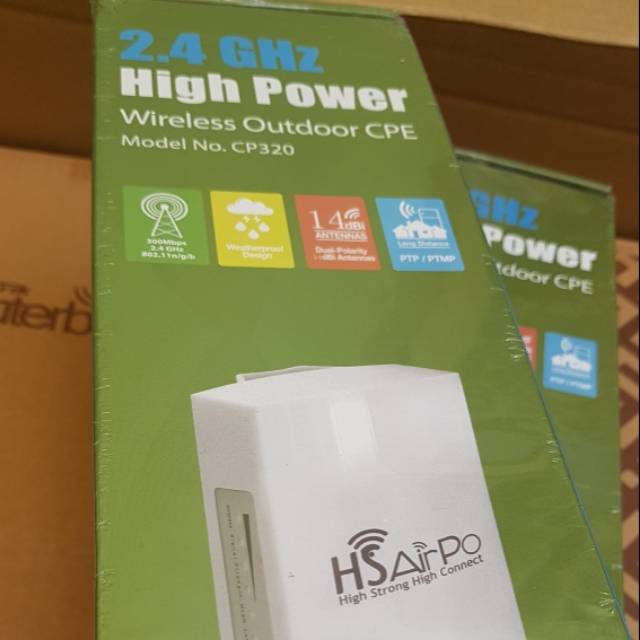

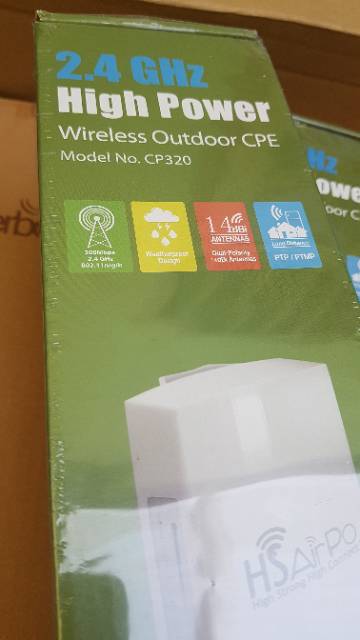

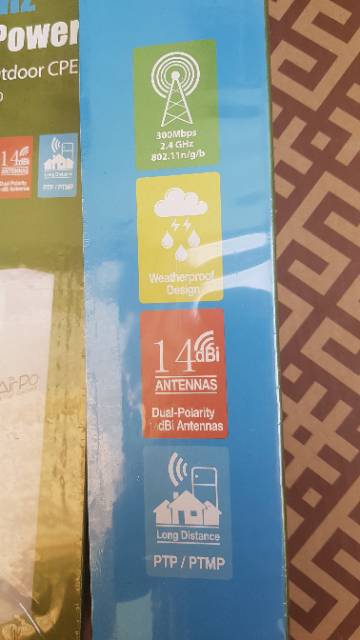

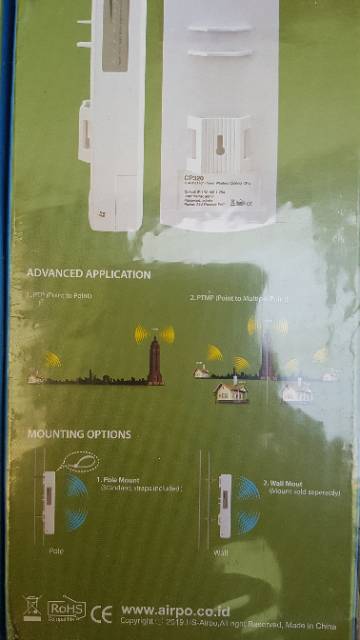

Gambar produk
