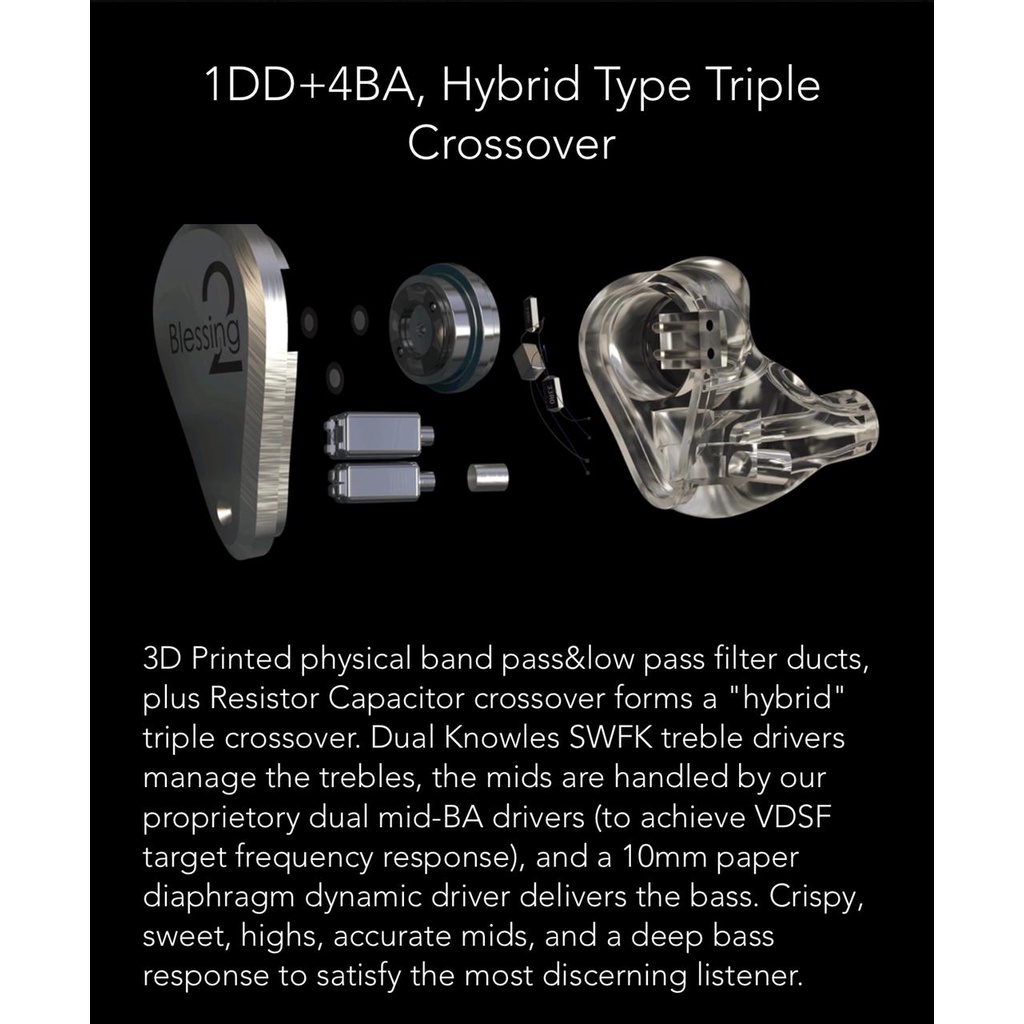

1 DD + 4BA configuration Hybrid three frequency division The physical band-pass and low-pass filtering of the sound duct structure relying on 3D printing to form a hybrid three-frequency structure, which is divided by the RC power frequency division. Dual Knowles’ SWFK high-frequency balanced armature unit is responsible for high-frequency. A pair of exclusive custom IF units are for mid-frequency (to achieve VDSF Target Frequency Response). A 10mm dynamic coil unit of a paper cone composite diaphragm is for low-frequency. All for the transparent sounds with deep bass, middle pitch, and sweet treble.
3D printed high-precision physical filtering sound duct structure The frequency division method for Blessing 2 includes physical band-pass filtering and low-pass filtering. Band-pass filtering is used to adjust the response range of the low frequency and mid-frequency, and low-pass filtering is used to limit the Q value of the mid-frequency and high -frequency.

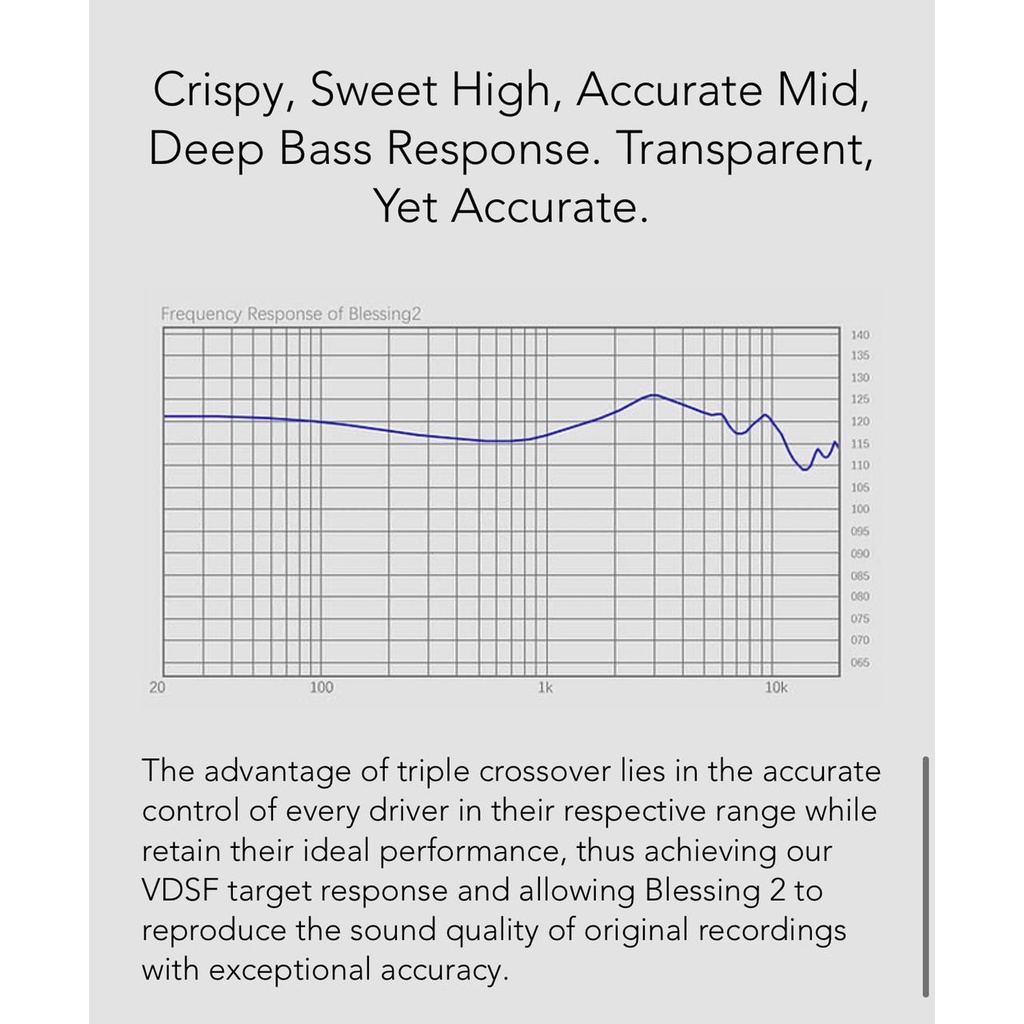

Sweet treble, middle pitch, deep bass• Transparent and revive The advantage of the "physical filtering + RC filtering" hybrid three-frequency architecture lies in precisely controlling the response of each unit, so that each unit can play an ideal level in its operating frequency band, and then achieve the frequency response index in accordance with the VDSF Target Response For Blessing2, it presents the sound quality that can accurately restore the information contained in the recording.
Earphone Specification : MOONDROP Blessing 2 In-Ear Headphones Impedance: 22 Ω @ 1kHz (± 15%) Unit configuration: 1DD & 4 BA each side Frequency response range: 9-37KHz (1 / 4-inch free-field microphone, -3dB) Treble unit: Knowles SWFK Midrange; Softears D-MID-A Bass: 10mm paper cone diaphragm coil Effective frequency response: 20-20KHZ (EC60318-4) Quality control range: ± 1dB @ 1kHz Sensitivity: 117dB / Vrms @ 1kHz Change connector: 0.78-2Pin THD: <1% @ 1KHz Shell technology: 3D printing of imported medical resin
