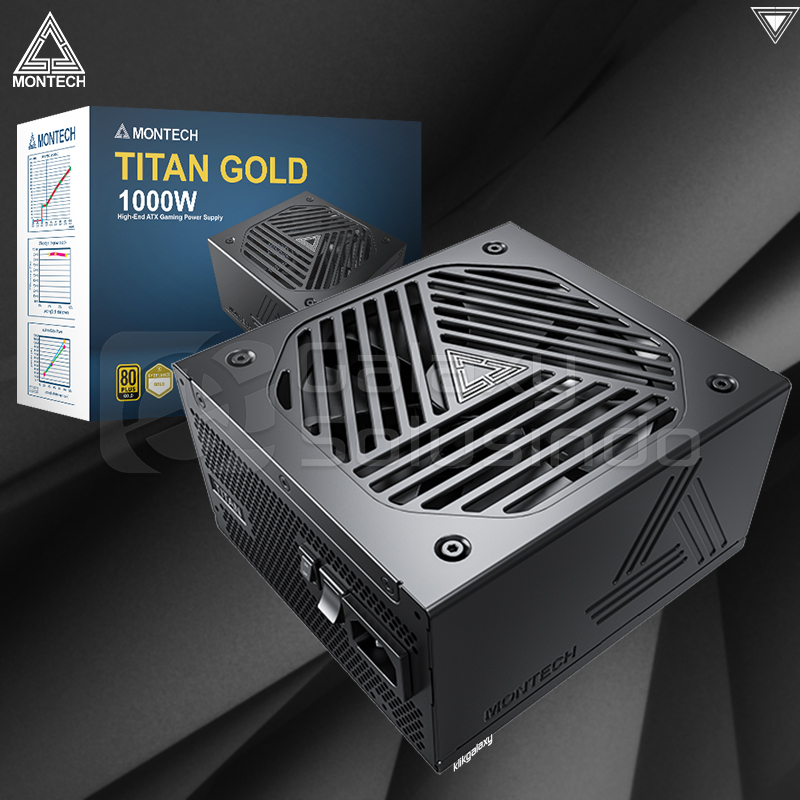

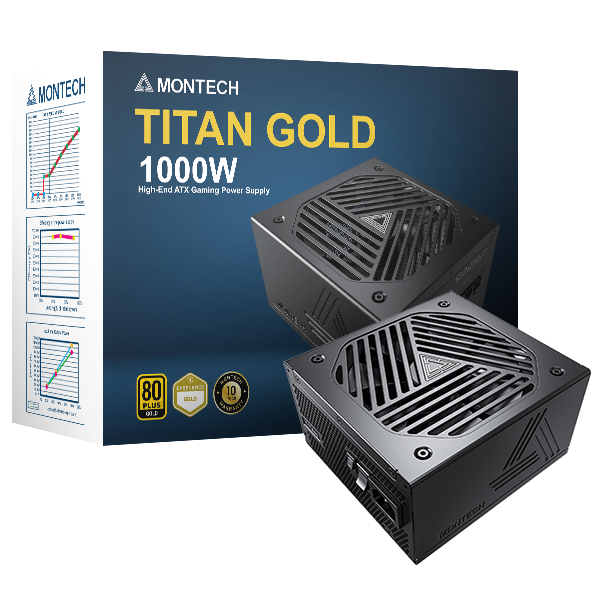

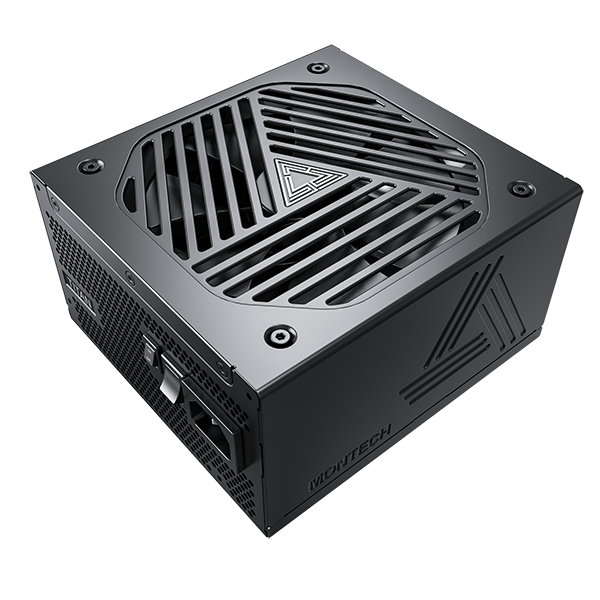

Montech TITAN 1000Watt 80 Plus Gold PCIe Gen5 Full Modular Power Supply

Detail Montech TITAN 1000Watt 80 Plus Gold PCIe Gen5 Full Modular Power Supply

TITAN GOLD
Premium High- End ATX Gaming Power Supply​

√ ATX 3.0 & PCIe Gen 5.0 ready
√ Fully modular available in 750W, 850W, 1000W, and 1200W
√ Equipped with 100% Japanese 105°C capacitors

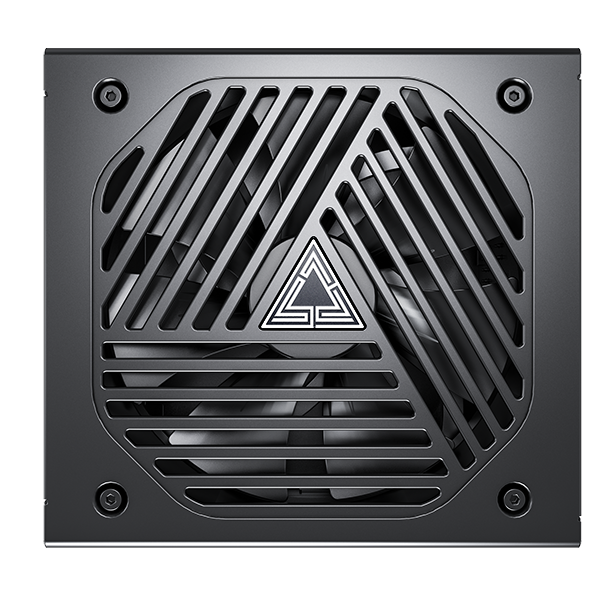

√ Includes 135mm FDB silent fan with zero RPM mode
√ 80 PLUS GOLD and Cybenetics Gold certified
√ Supports Nvidia®GeForce RTX®40 Series GPUs
√ 10-year warranty

SPECIFICATION:

Product Name


TITAN GOLD 1000W

ATX Version


Intel ATX12V

PFC


Active PFC (>0.9 typical)

Input Voltage


100-240Vac

Input Current


15A

Input Frequency


50-60Hz

Dimensions (L*B*H)


150*160*86mm

Fan Size


135mm ( FDB Fan )

Efficiency


90% Typically

Operating Temperature


0-45°C

Protections


OVP / OPP / OTP / SCP / OCP/ UVP

Regulatory


cTUVus / TUV / CB / CE / FCC / RoHS / BSMI

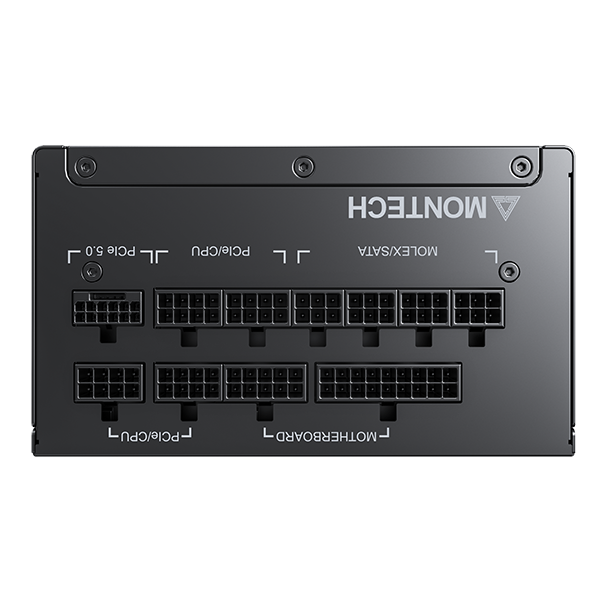

Connectors


M/B 20+4Pin


1

CPU 4+4Pin


2

PCIE 6+2


5

SATA


12

Molex 4Pin


4

12+4PCIe 5.0


1

AC INPUT


100-240Vac 50-60Hz 15A

DC OUTPUT


+3.3V


+5V


+12V


-12V


+5VSB

Max. Output Current


22A


22A


83.33A


0.3A


3A

Max. Output Power


120W


1000W


3.6W


15W

Total POWER


1000W
