MONTECH TITAN GOLD 1000W 80 Plus Gold Fully Modular PCIe 5.0 ATX PSU

Detail MONTECH TITAN GOLD 1000W 80 Plus Gold Fully Modular PCIe 5.0 ATX PSU

MONTECH TITAN GOLD 1000W

Compliant with The Highest Standards
The TITAN GOLD is ATX 3.0 and PCIe Gen 5.0 ready, it has an output port that is compliant with PCIe 5.0, includes native 12+4 pin 12VHPWR connector, which is designed to better communicate with the newer GPUs and delivers up to 600W.
Also, the TITAN GOLD series are fully compliant with Intel PSDG ATX 3.0, the power supply can hold up to 2x total power excursion and 3x GPU power excursion.

Premium Components and High Performance
Equipped with 100% high-quality Japanese capacitors rated at 105°C, including dual bulk capacitors. While using advanced half bridge, LLC and Synchronous Rectifier (SR) technology, the TITAN GOLD has excellent signal stability and power efficiency. It also uses DC-to-DC conversion for tight voltage regulation of 1.8% and minimizes ripple noise to under 18mV, avoiding unbalanced power loads.

Ultra Quiet Certified

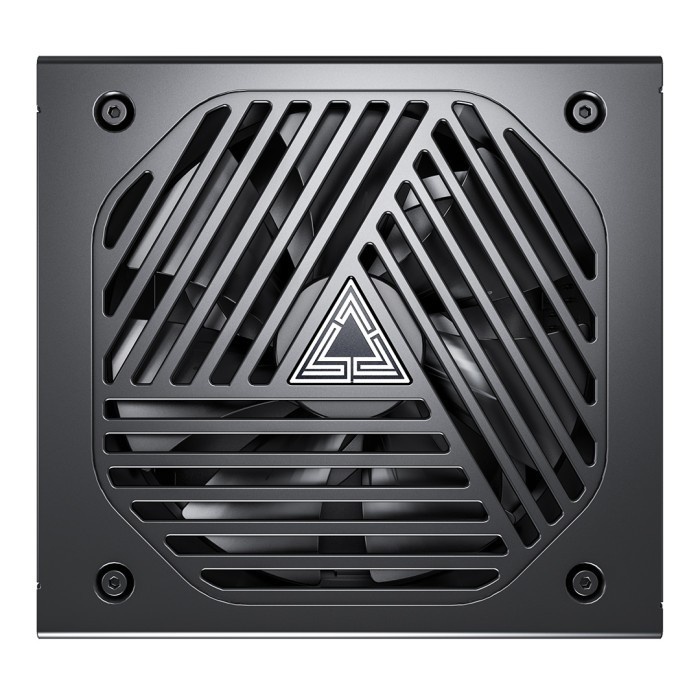

The TITAN GOLD is equipped with a quiet 135mm fluid dynamic bearing (FDB) fan with zero RPM mode until it reaches 40% loading. After which, the maximum noise level of the TITAN GOLD reaches 27 dBA at 1400 RPM.
TITAN GOLD received Cybenetics LAMBDA A- CERTIFICATION for independent testing and verification of the lower noise and higher efficiency of the power supply.

SPECIFICATIONS
Product Name
TITAN GOLD 1000W

Warranty 10 Year

ATX Version
Intel ATX12V

PFC
Active PFC (>0.9 typical)

Input Voltage
100-240Vac

Input Current
15A

Input Frequency
50-60Hz

Dimensions (LxBxH)
150x160x86mm

Fan Size
135mm ( FDB Fan )

Efficiency
90% Typically

Operating Temperature
0-45°C

Protections
OVP / OPP / OTP / SCP / OCP/ UVP

Regulatory
cTUVus / TUV / CB / CE / FCC / RoHS / BSMI

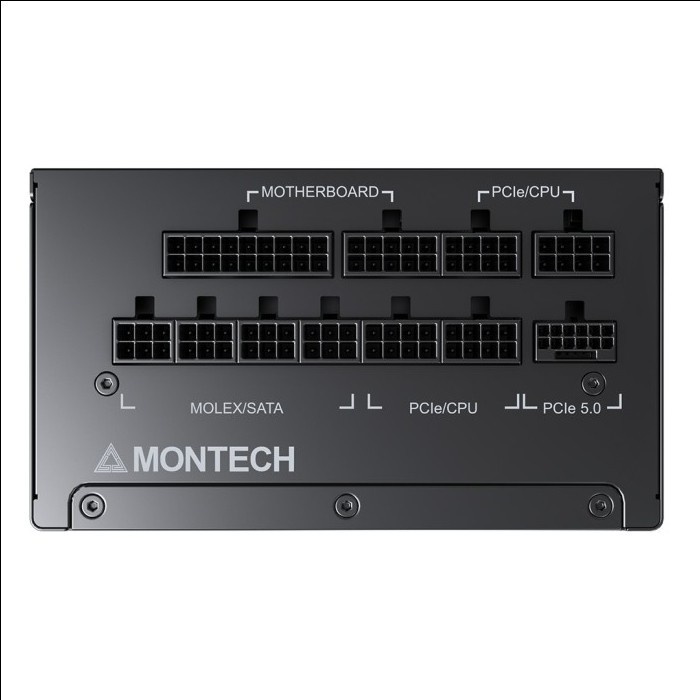

Connectors
M/B 20+4Pin
1

CPU 4+4Pin
2

PCIE 6+2
5

SATA
12

Molex 4Pin
4

12+4PCIe 5.0
1

AC INPUT
100-240Vac 50-60Hz 15A

DC OUTPUT
+3.3V

+5V

+12V

-12V

+5VSB

Max. Output Current
22A

22A

83.33A

0.3A

3A

Max. Output Power
120W

1000W

3.6W

15W

Total POWER
1000W
