Montech Gamma II 750W PSU Power Supply ATX 80 Plus Gold 750 Watt

Detail Montech Gamma II 750W PSU Power Supply ATX 80 Plus Gold 750 Watt

Note:
Garansi Resmi 5 Tahun

Deskripsi:
MONTECH GAMMA II 750W

Gold certified PSU with 100 % Japanese electronic capacitors
​80 PLUS GOLD Certified
LLC+DC to DC technology
100 % Japanese electronic capacitors
EMI filter component
120MM silent fan
Flat & Flexible Cables

SPECIFICATIONS

Product Name
GAMMA II 750

ATX Version
ATX12V

PFC
Active PFC (>0.9 typical)

Input Voltage
100-240Vac

Input Current
10A

Input Frequency
47-63Hz

Dimensions (LxBxH)
140x150x86mm

Fan Size
120mm

Hold Up Time
10msec (minimum) at 80% of full load at 230Vac input.

Efficiency
90% Typically

MTBF
>100,000 Hours

Operating Temperature
0-45°C

Protections
OVP / OPP / UVP / SCP / OCP

Regulatory
cTUVus / TUV / CB / CE / RoHS / FCC

Connectors
M/B 20+4Pin
1

CPU 4+4Pin
2

PCIE 6+2
4

SATA
8

Molex 4Pin
3

FDD
1

AC Input
100-240Vac 47-63Hz 10.0A

DC Output
+3.3V

+5V

12V

-12V

+5VSB

Max. Output Current
22A

22A

62A

0.3A

2.5A

Max. Output Power
120W

744W

3.6W

12.5W

Total POWER
750W

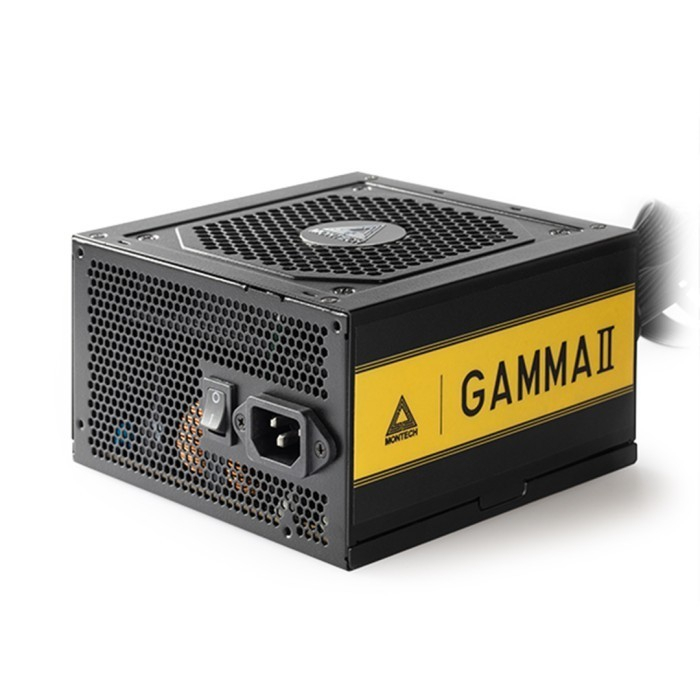

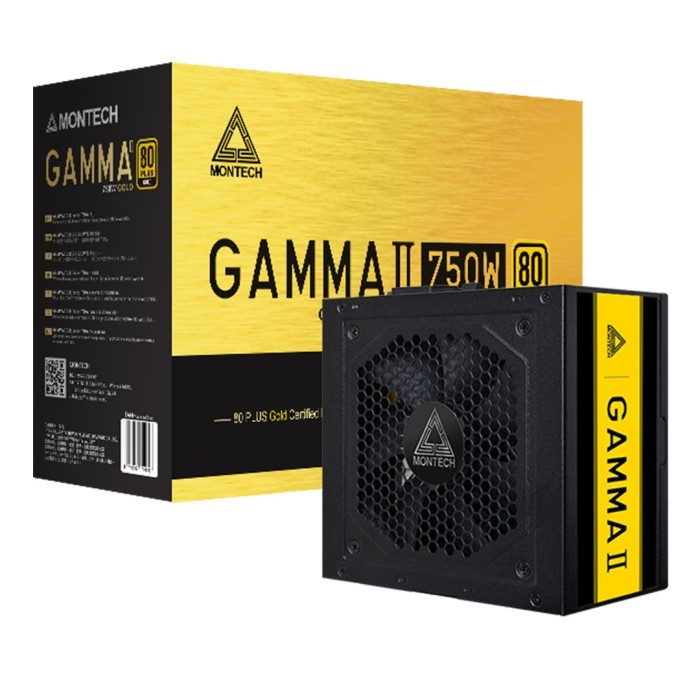

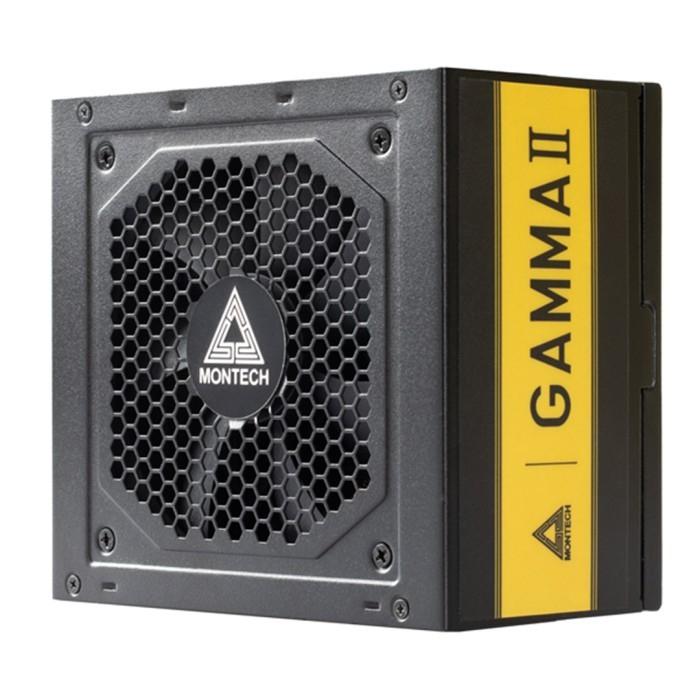

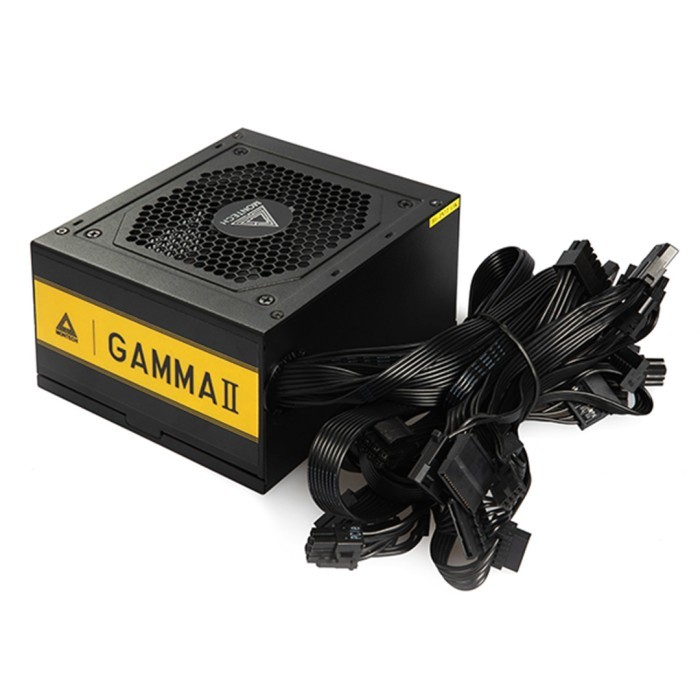

Gambar produk
