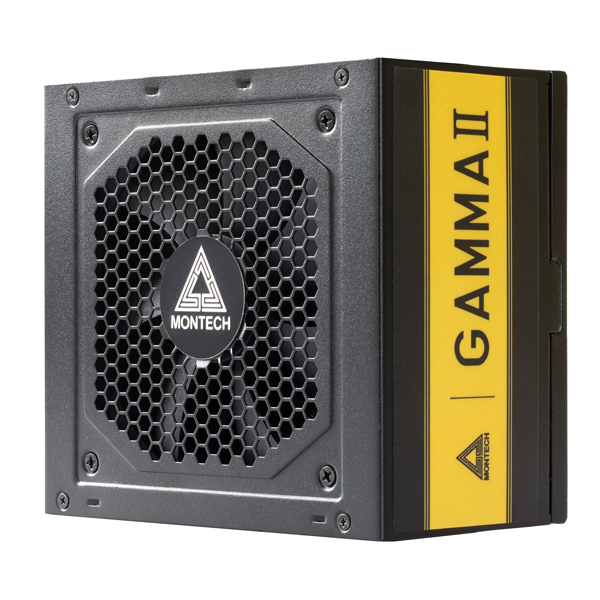

Montech GAMMA II 750 750Watt 80 Plus Gold Power Supply

Detail Montech GAMMA II 750 750Watt 80 Plus Gold Power Supply

GAMMA II 750 GOLD
Gold certified PSU with 100 % Japanese electronic capacitors

​80 PLUS GOLD Certified
LLC+DC to DC technology
100 % Japanese electronic capacitors
EMI filter component
120MM silent fan
Flat & Flexible Cables

SPECIFICATION:

Product Name


GAMMA II 750

ATX Version


ATX12V

PFC


Active PFC (>0.9 typical)

Input Voltage


100-240Vac

Input Current


10A

Input Frequency


47-63Hz

Dimensions (L*B*H)


140*150*86mm

Fan Size


120mm

Hold Up Time


10msec (minimum) at 80% of full load at 230Vac input.

Efficiency


90% Typically

MTBF


>100,000 Hours

Operating Temperature


0-45°C

Protections


OVP / OPP / UVP / SCP / OCP

Regulatory


cTUVus / TUV / CB / CE / RoHS / FCC

Connectors


M/B 20+4Pin


1

CPU 4+4Pin


2

PCIE 6+2


4

SATA


8

Molex 4Pin


3

FDD


1

AC Input


100-240Vac 47-63Hz 10.0A

DC Output


+3.3V


+5V


12V


-12V


+5VSB

Max. Output Current


22A


22A


62A


0.3A


2.5A

Max. Output Power


120W


744W


3.6W


12.5W

Total POWER


750W
