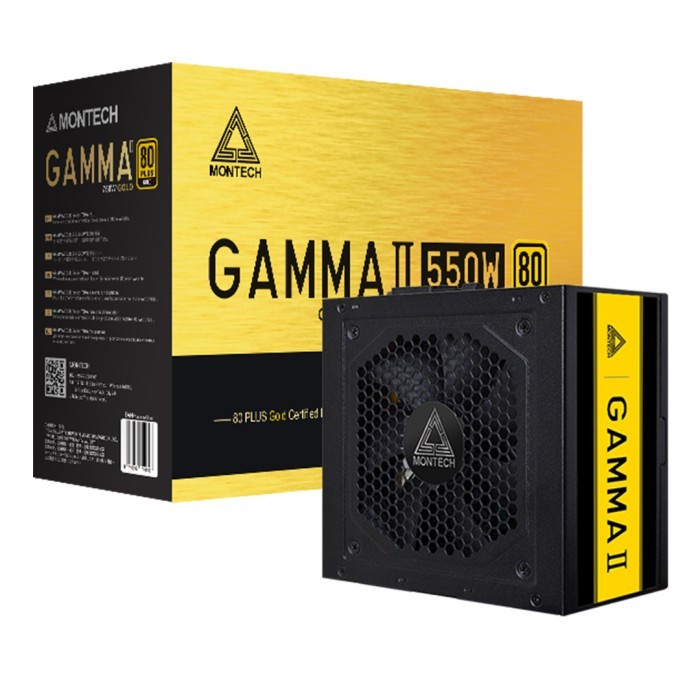

MONTECH GAMMA II 550W 80 Plus Gold ATX PSU

Detail MONTECH GAMMA II 550W 80 Plus Gold ATX PSU

MONTECH GAMMA II 550W

Gold certified PSU with 100 % Japanese electronic capacitors
​80 PLUS GOLD Certified
LLC+DC to DC technology
100 % Japanese electronic capacitors
EMI filter component
120MM silent fan
Flat & Flexible Cables
5 year warranty

SPECIFICATIONS
Product Name
GAMMA II 550

ATX Version
ATX12V

PFC
Active PFC (>0.9 typical)

Input Voltage
100-240Vac

Input Current
8A

Input Frequency
47-63Hz

Dimensions (LxBxH)
140x150x86mm

Fan Size
120mm

Hold Up Time
10msec (minimum) at 80% of full load at 230Vac input.

Efficiency
90% Typically

MTBF
>100,000 Hours

Operating Temperature
0-45°C

Protections
OVP / OPP / UVP / SCP / OCP

Regulatory
cTUVus / TUV / CB / CE / RoHS / FCC

Connectors
M/B 20+4Pin
1

CPU 4+4Pin
2

PCIE 6+2
2

SATA
8

Molex 4Pin
3

FDD
1

AC Input
100-240Vac 47-63Hz 8.0A

DC Output
+3.3V

+5V

12V

-12V

+5VSB

Max. Output Current
20A

20A

45A

0.3A

2.5A

Max. Output Power
110W

540W

3.6W

12.5W

Total POWER
550W
