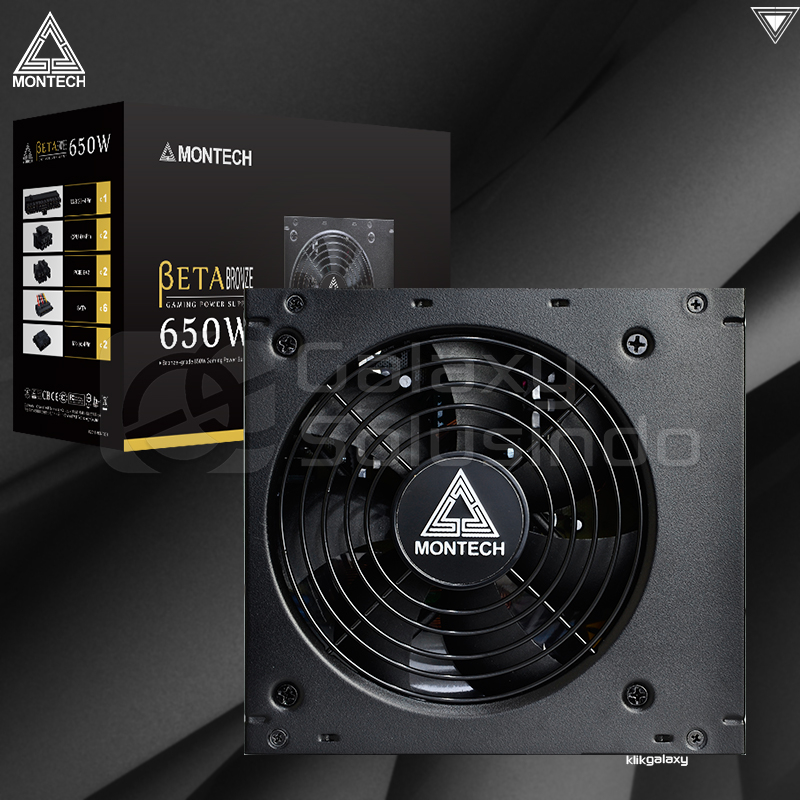

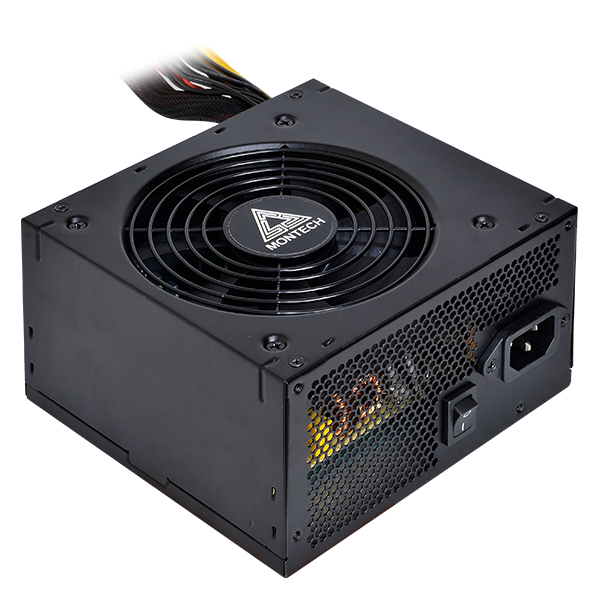

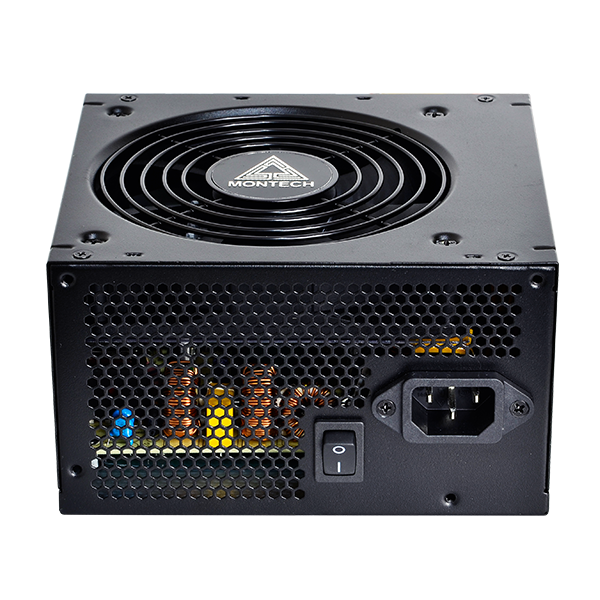

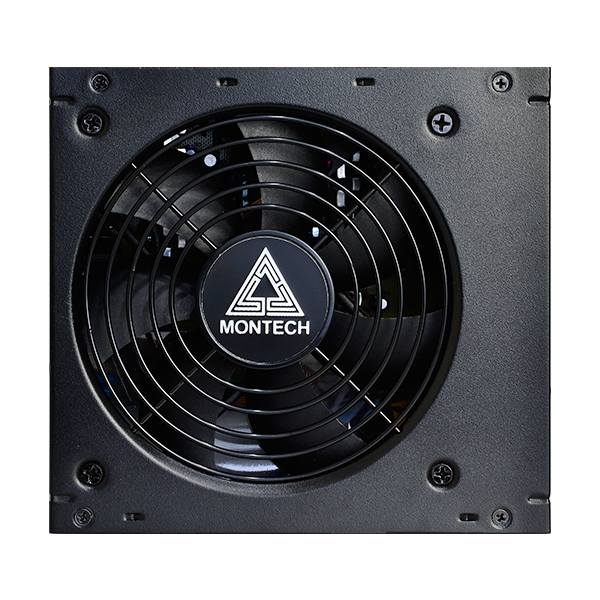

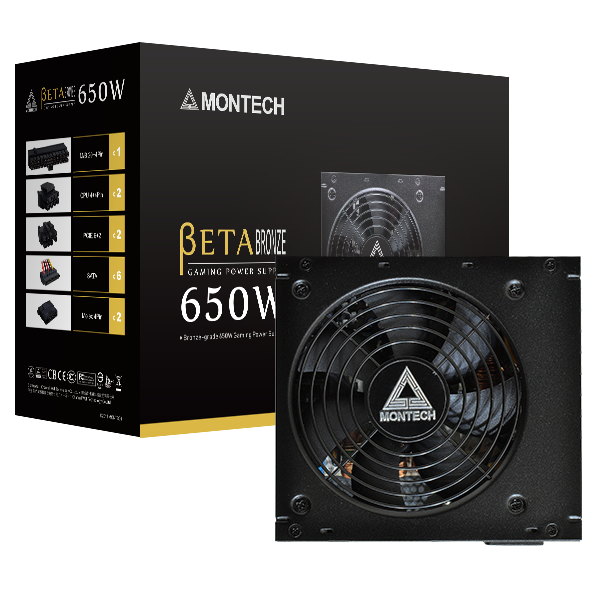

Montech Beta 650 650Watt 80 Plus Bronze Power Supply

Detail Montech Beta 650 650Watt 80 Plus Bronze Power Supply

BETA 650 BRONZE

​80 PLUS Bronze Certified
High Quality Components
Japanese Main Eletronic Capacitors
High Amperage +12V Single Rail
Silent Fan

SPECIFICATION:

Product Name


BETA 650

ATX Version


ATX12V

PFC


Active PFC (>0.9 typical)

Input Voltage


100-240Vac

Input Current


10A

Input Frequency


47-63Hz

Dimensions (L*B*H)


140*150*86mm

Fan Size


120mm

Hold Up Time


10msec (minimum) at 80% of full load at 230Vac input.

Efficiency


83% Typically

MTBF


>100,000 Hours

Operating Temperature


0-45°C

Protections


OVP / OPP / UVP / SCP

Regulatory


cTUVus / TUV / CB / CE / CCC / RoHS / FCC

Connectors


M/B 20+4Pin


1

CPU 4+4Pin


2

PCIE 6+2


2

SATA


6

Molex 4Pin


2

AC Input


100-240Vac 47-63Hz 10.0A

DC Output


+3.3V


+5V


12V


-12V


+5VSB

Max. Output Current


20A


17A


50A


0.3A


2.5A

Max. Output Power


120W


600W


3.6W


12.5W

Total POWER


650W
