Detail Modul XL4015 Step Down DC-DC 5A CC CV Baterai Charger Lithium Module
Modul Charger XL 4015 CC CVarus max : 5A
output : adjustable step down
INI ADALAH MODUL STEP DOWN ya gan...
Stock READY
PRODUCT DESCRIPTION:
When you use the product, the module inputs and outputs to be isolated from ground
Input voltage range:4-38VDC(Note:input voltage not exceeding 38V)
Output voltage range:1.25-36VDC adjustable
Output current: 0-5A
Output power: 75W High efficiency up to 96%Built in thermal shutdown functionBuilt in current limit function
Built in output short protection function (limiting current 8A)
Input reverse polarity protection: None (if required, high current diode in series with the input)
Connect way: Terminal or solder terminals, V-IN is input, V-OUT is output

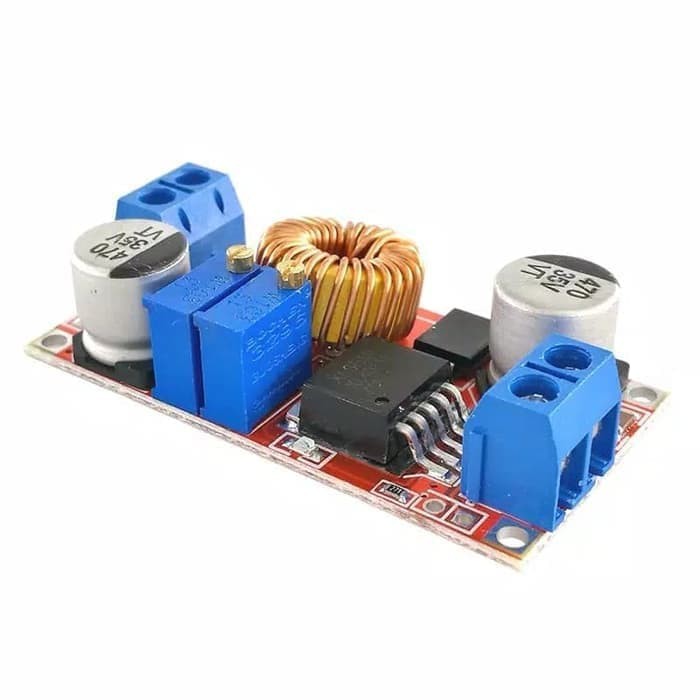

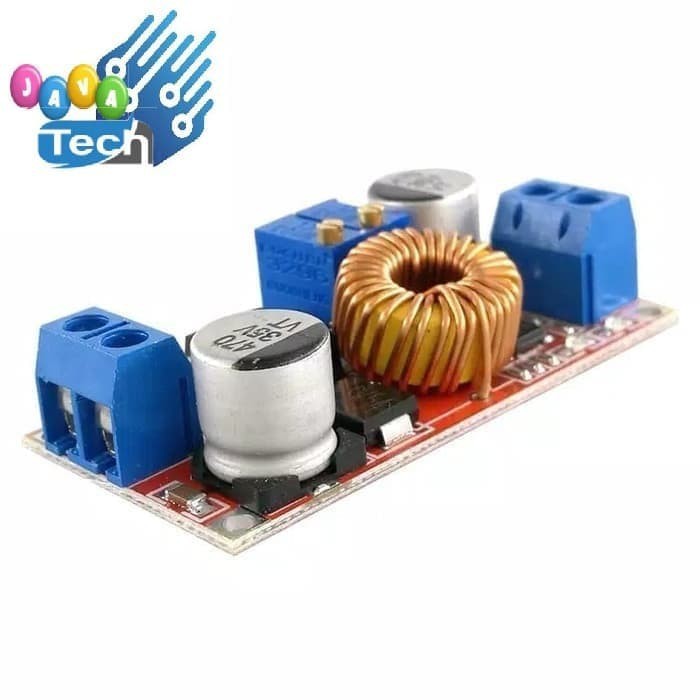

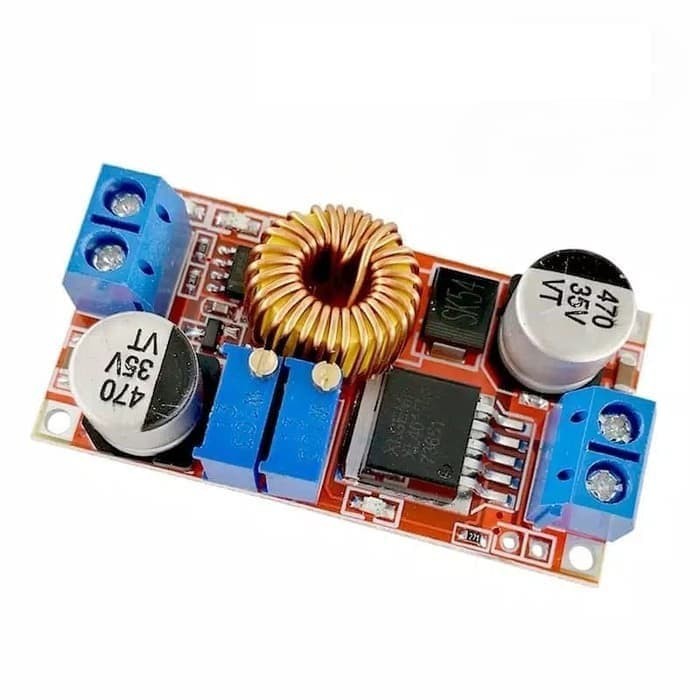

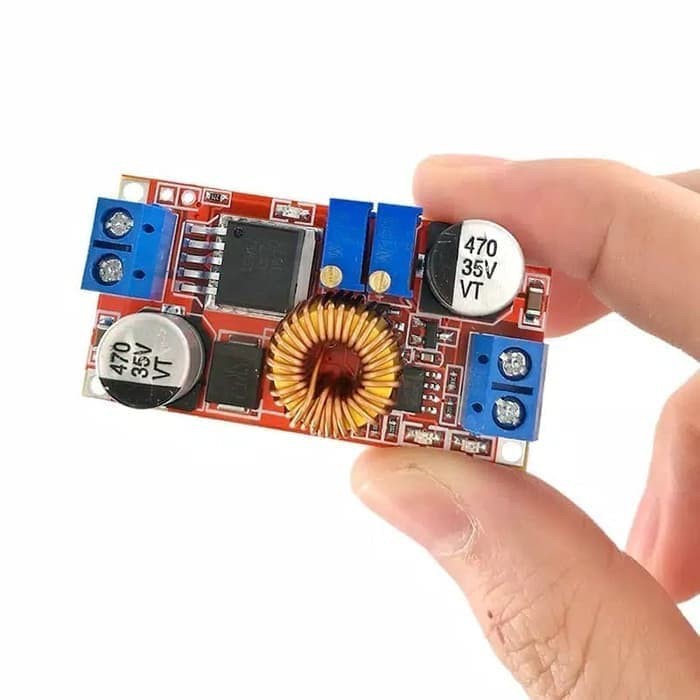

Gambar produk
