Modul Inverter DC 12V to AC 110/220V 150W

Detail Modul Inverter DC 12V to AC 110/220V 150W

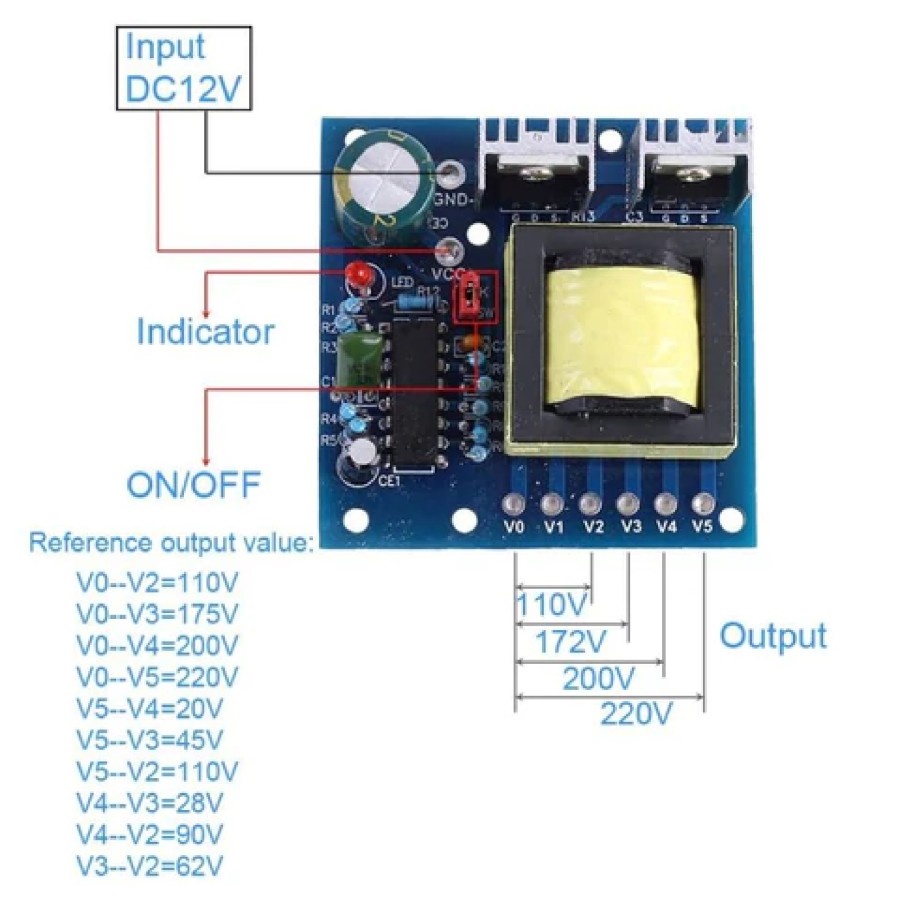

Inverter is a device that convert DC current (usually from battery or solar cell) to AC current or city current (usually 220V). This inverter module receives 12V DC input and invert it to alternative current or city current (AC) at 220, 200, 172,110, 90, 62, 45, 28v ac level.

Features

Power: 150W
Input voltage: DC12V
Output voltage: AC 0-110V-172V-200V-220V
Quiescent current: about 0.05A
Output waveform: high frequency square wave
Output frequency: about 20KHZ
Important notes

The board belongs to high frequency square AC output; it is not suitable for the inductive appliance that have electric motors.
When work for a long time under large load, suggest to enhance heat dissipation
Power supply and wire should have large enough current
Do not overload and short-circuit
The number in measured by the output high frequency non-load voltage meter will be a little higher (square wave)

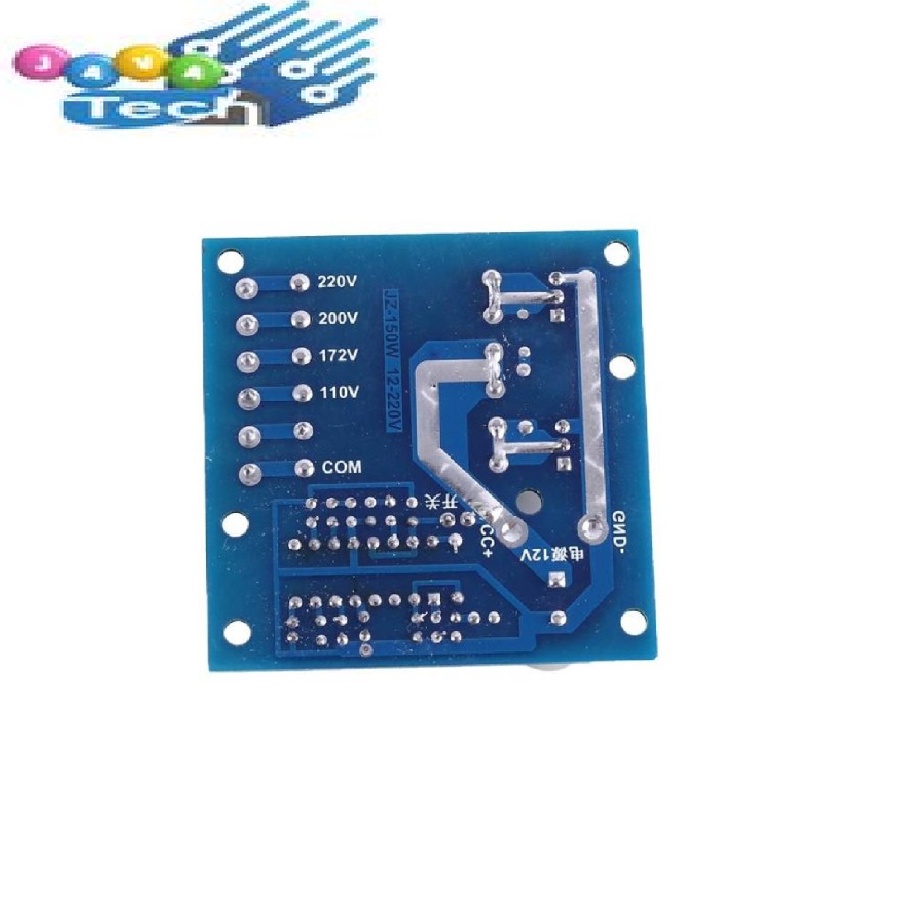

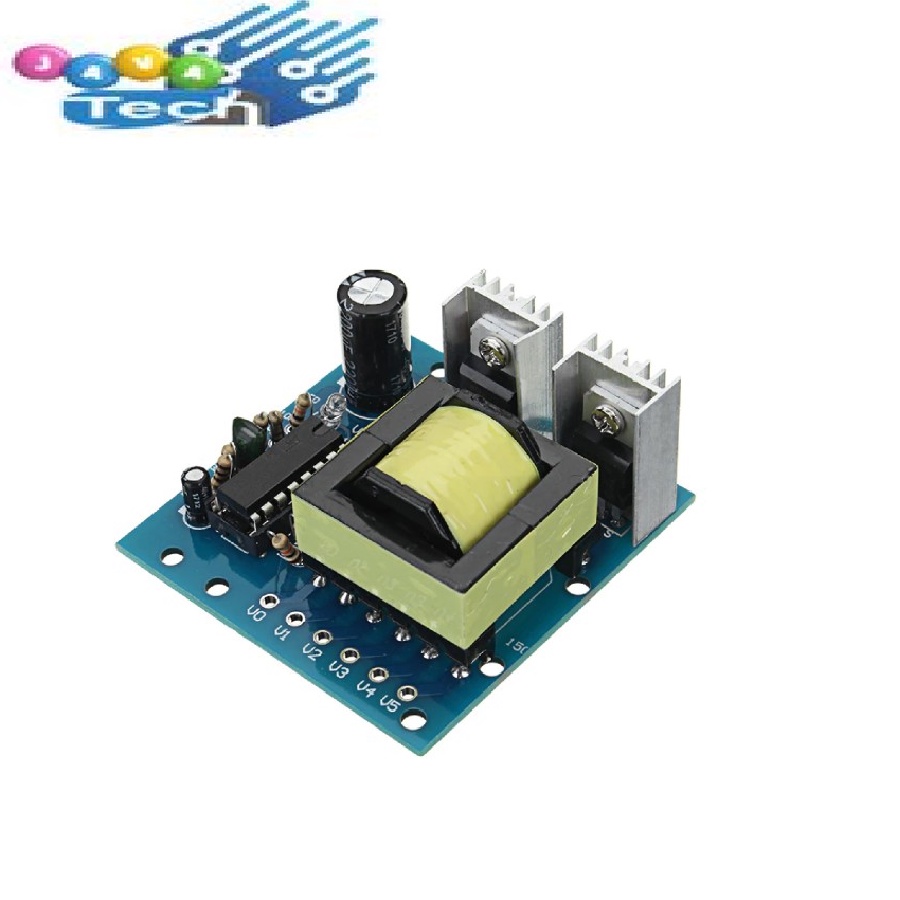

Gambar produk
