Mikrotik Switch CRS318-16P-2S+OUT netPower 16P

Merek: Mikrotik | Lihat selengkapnya produk Komputer & Aksesoris dari Mikrotik
Komputer & Aksesoris > Komponen Network > Switch Internet & PoE > Mikrotik Switch CRS318-16P-2S+OUT netPower 16P
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Mikrotik Switch CRS318-16P-2S+OUT netPower 16P

Terima kasih Sudah berkunjung di ma-mai.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

netPower 16P An outdoor 18 port switch with 16 Gigabit PoE-out ports and 2 SFP+. Power all your access points anywhere!

Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks.

Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments – from damp attics and shafts to towers, masts and poles with hose clamps.

netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps.

Device itself does not have an onboard voltage converter. You need 24V PSU to have 24V PoE out and/or 48V PSU to have 48V PoE out (IEEE 802.3 at/af).

Specifications
Details
Product code CRS318-16P-2S+OUT
Architecture ARM 32bit
CPU 98DX226S
CPU core count 1
CPU nominal frequency 800 MHz
Dimensions 303 x 212 x 78 mm
RouterOS license 5
Operating System RouterOS/SwitchOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Powering
Details
Number of DC inputs 2 (DC jack)
DC jack input Voltage 18-30 V / 48-57 V
Max power consumption 316 W
Max power consumption without attachments 16 W
FAN count Passive
PoE-out
Details
PoE-out ports Ether1-Ether16
PoE out 802.3af/at
Max out per port output (input 18-30 V) 1.1 A
Max out per port output (input 30-57 V) 0.6 A
Max total out (A) 2.8A (18V-30V) & 1.4A (48V-57V) x2 A
Ethernet
Details
10/100/1000 Ethernet ports 16
Number of 1G Ethernet ports with PoE-out 16
Fiber
Details
SFP+ ports 2
Other
Details
CPU temperature monitor Yes
Voltage Monitor Yes

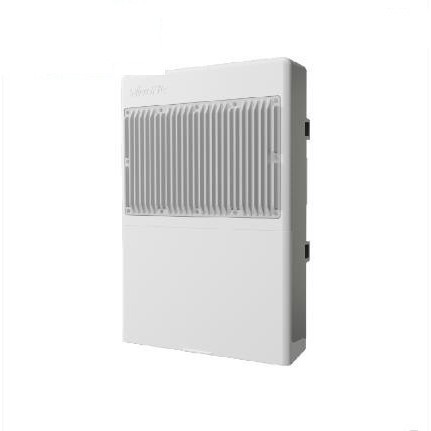

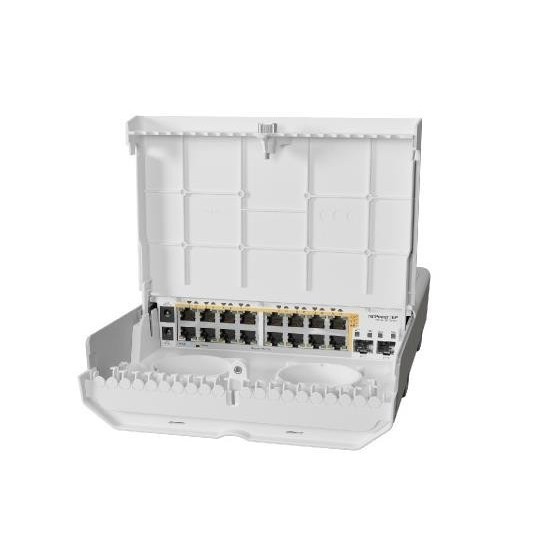

Gambar produk

Mikrotik Switch CRS318-16P-2S+OUT netPower 16P
Mikrotik Switch CRS318-16P-2S+OUT netPower 16P
Mikrotik Switch CRS318-16P-2S+OUT netPower 16P
Mikrotik Switch CRS318-16P-2S+OUT netPower 16P
