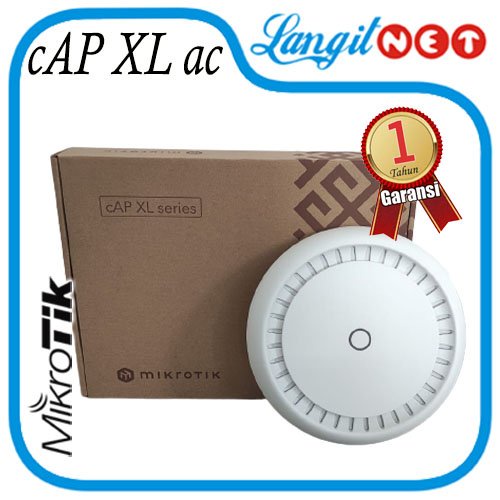

MIKROTIK RB cAPGi 5acD2nD XL cAP XL ac

Detail MIKROTIK RB cAPGi 5acD2nD XL cAP XL ac

Video Produk :
youtube.com/watch?v=IKqTHMpxiQs

Specifications
Details
Product code : RBcAPGi-5acD2nD-XL
Architecture : ARM 32bit
CPU : IPQ-4018
CPU core count : 4
CPU nominal frequency : 716 MHz
Dimensions : 191 x 42 mm
RouterOS license : 4
Operating System : RouterOS
Size of RAM : 128 MB
Storage size : 16 MB
Storage type : FLASH
MTBF : Approximately 100'000 hours at 25C
Tested ambient temperature : -40C to 70C
IPsec hardware acceleration : Yes

Wireless capabilities :
Details :
Wireless 2.4 GHz Max data rate : 300 Mbit/s
Wireless 2.4 GHz number of chains : 2
Wireless 2.4 GHz standards : 802.11b/g/n
Antenna gain dBi for 2.4 GHz : 6
Wireless 2.4 GHz chip model : IPQ-4018
Wireless 2.4 GHz generation : Wi-Fi 4
Wireless 5 GHz Max data rate : 867 Mbit/s
Wireless 5 GHz number of chains : 2
Wireless 5 GHz standards : 802.11a/n/ac
Antenna gain dBi for 5 GHz : 5.5
Wireless 5 GHz chip model : IPQ-4018
Wireless 5 GHz generation : Wi-Fi 5
WiFi speed : AC1200

Ethernet :
Details :
10/100/1000 Ethernet ports : 2
Number of 1G Ethernet ports with PoE-out : 1

Powering :
Details :
Number of DC inputs : 1 (PoE-IN)
Max power consumption : 24 W
Max power consumption without attachments : 11 W
Cooling type : Passive
PoE in : 802.3af/at
PoE in input Voltage : 18-57 V

PoE-out :
Details :
PoE-out ports : Ether2
PoE out : Passive PoE up to 57V
Max out per port output (input 18-30 V) : 500 mA
Max out per port output (input 30-57 V) : 330 mA
Max total out (A) : 500 mA

Included parts :
- 24V 1.2A power adapter
- Ceiling mount
- Gigabit PoE injector
- K-81 fastening set
