Detail MIKROTIK RB WSAP 5HAC2ND AC LITE DUAL BAND ACCESS POINT IN WALL
POSTEL : 64597/SDPPI/2019
VIDEO PRODUK : youtube.com/watch?v=AeETmrRylqU

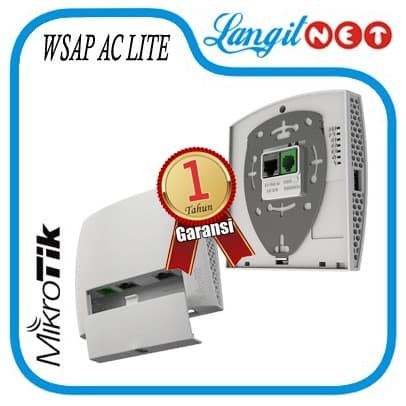

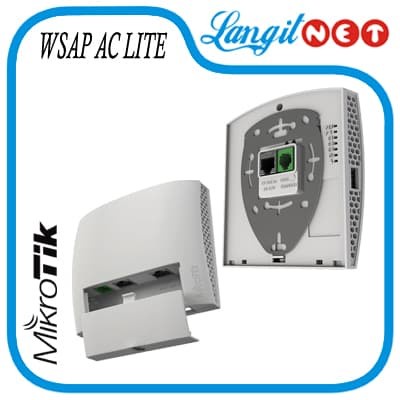

The wsAP ac lite is a perfect access point (AP) for hospitality networks (hotels, shopping malls, hospitals, airports etc.). It has an unobtrusive case that fits in standard wall power sockets. This way, the unit doesn’t attract attention and blends into any environment.
The wsAP has three Ethernet ports: one on the back side for easy PoE-in, and two LAN ports behind the front door. The device provides Dual concurrent 2.4 GHz and 5 GHz WiFi coverage, it supports 802.11ac, as well as legacy standards. A USB 2.0 port is provided, to charge mobile devices or for storage.
Product code RBwsAP-5Hac2nD Architecture MIPSBE CPU QCA9531 CPU core count 1 CPU nominal frequency 650 MHz Dimensions 112 x 126 x 30 mm License level 4 Operating System RouterOS Size of RAM 64 MB Storage size 16 MB Storage type FLASH Tested ambient temperature -40°C to 60°C Powering Details PoE in 802.3af/at PoE out Passive PoE PoE in input Voltage 18-57 V Number of DC inputs 1 (PoE-IN) Max out per port output (input > 30 V) 420 mA Max out per port output (input < 30 V) 420 mA Max total out (A) 420 mA Max power consumption 20 W Max power consumption without attachments 6 W Wireless Details Wireless 2.4 GHz number of chains 2 Wireless 2.4 GHz Max data rate 300 Mbit/s Wireless 2.4 GHz standards 802.11b/g/n AC speed AC750 Antenna gain dBi for 2.4 GHz 1.5 Wireless 2.4 GHz chip model QCA9531 Wireless 5 GHz number of chains 1 Wireless 5 GHz Max data rate 433 Mbit/s Wireless 5 GHz standards 802.11a/n/ac Antenna gain dBi for 5 GHz 3 Wireless 5 GHz chip model QCA-9887 Ethernet Details 10/100 Ethernet ports 3 Peripherals Details Number of USB ports 1 USB Power Reset Yes USB slot type USB type A Max USB current (A) 0.5 Other Details Mode button Yes Wireless specifications 2.4 GHz Transmit (dBm) Receive Sensitivity 1MBit/s 22 -96 11MBit/s 22 -89 6MBit/s 20 -93 54MBit/s 18 -74 MCS0 20 -93 MCS7 16 -71 5 GHz Transmit (dBm) 6MBit/s 23 -93 54MBit/s 20 -75 MCS0 23 -93 MCS7 19 -71
