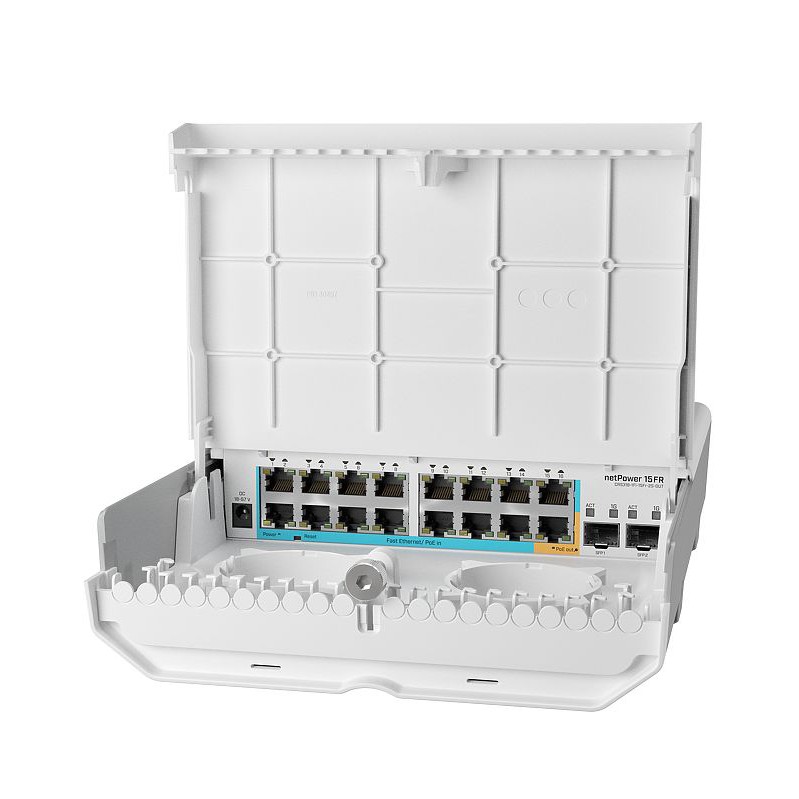

netPower 15FR An outdoor 18 port switch with 15 reverse PoE ports and SFP.
With netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept - aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet.

You don’t have to worry about power options in the attic or the utility room – netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 15 can power other PoE capable devices with the same voltage as applied to the unit.

netPower 15FR has a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps.

Specifications
Details
Product code CRS318-1Fi-15Fr-2S-OUT
Architecture ARM 32bit
CPU 98DX224S
CPU core count 1
CPU nominal frequency 800 MHz
Dimensions 304 x 212 x 71 mm
RouterOS license 5
Operating System SwOS / RouterOS (Dual boot)
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Powering
Details
Number of DC inputs 16 (DC jack, PoE-IN)
DC jack input Voltage 18-57 V
Max power consumption 29 W
Max power consumption without attachments 10 W
FAN count Passive
PoE in Passive PoE
PoE in input Voltage 18-57 V (recommended 36-57V)
PoE-out
Details
PoE-out ports Ether15
PoE out Passive PoE
Max out per port output (input 18-30 V) 0.75 A
Max out per port output (input 30-57 V) 0.5 A
Max total out (A) 0.75 A
Ethernet
Details
10/100 Ethernet ports 16
Fiber
Details
SFP ports 2

Other
Details
CPU temperature monitor Yes
Voltage Monitor Yes
