MIKROTIK HAP AC2 TC RB D52G 5HACD2HND TC

Detail MIKROTIK HAP AC2 TC RB D52G 5HACD2HND TC

VIDEO PRODUK :
youtube.com/watch?v=0uohvgvROrY

hAP ac2 is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4 GHz and 5 GHz frequencies at the same time. Five 10/100/1000 Ethernet ports provide Gigabit connections for your wired devices, USB can be used for external storage or 4G/LTE modem, and device supports IPsec hardware acceleration.

New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.

- hAP ac2 (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specifications
Details
Product code RBD52G-5HacD2HnD-TC
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions 34 x 119 x 98mm
License level 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40C to 50C

Powering
Details
PoE in Passive PoE
PoE in input Voltage 18-28 V
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 12-30 V
Max power consumption 21 W
Max power consumption without attachments 16 W

Wireless
Details
AC speed AC1200
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz standards 802.11b/g/n
Wi-Fi generation 5
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz chip model IPQ-4018
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2.5
Wireless 5 GHz chip model IPQ-4018

Ethernet
Details
10/100/1000 Ethernet ports 5

Peripherals
Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other
Details
Mode button Yes

Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 27 -100
11MBit/s 27 -94
6MBit/s 27 -96
54MBit/s 24 -78
MCS0 27 -96
MCS7 23 -73

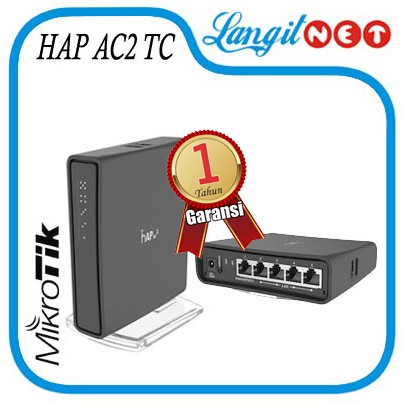

Gambar produk
