Paket MikroTik BaseBox 5 & mANT 19S MTAS-5G-19D120

Detail Paket MikroTik BaseBox 5 & mANT 19S MTAS-5G-19D120

Deskripsi : Paket MikroTik BaseBox 5 & mANT 19S MTAS-5G-19D120

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

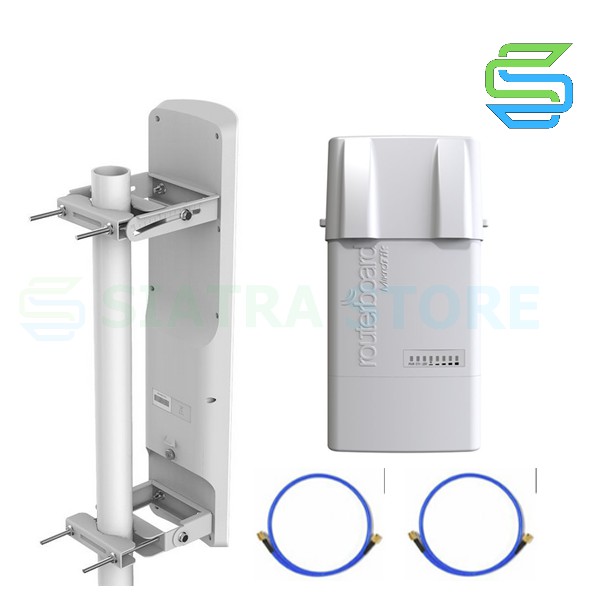

ISI PAKET :
1. 1X - Mikrotik RB912UAG-5HPnD-OUT BaseBox 5 Level 4
2. 1X - Mikrotik mANT 19S MTAS-5G-19D120
3. 2X - Pigtail RP-SMA to RP-SMA ( Paket dari Antenna )

MikroTik RB912UAG-5HPnD-OUT BaseBox 5 is a weatherproof outdoor AP with dual RP-SMA connectors for antennas.

Weatherproof, durable and ready to use. It has 1 Gigabit Ethernet port, 1 miniPCIe, USB, additional memory and three additional places for antenna connectors, in case you wish to use this device for one more wireless interface to make a dual-band device, and a DIN rail mount.

BaseBox 5 Specifications:
• CPU speed: 600MHz
• TX power: 30dBm
• RAM: 64MB
• LAN ports: 1
• Gigabit: Yes
• miniPCIe: 1
• Integrated wireless: Yes
• Wireless standards: 802.11a/n
• Supported frequency: 4900-5920Mhz
• 2x RP-SMA connectors
This device can be upgraded to the newest 802.11ac standard by purchasing the R11e-5HacD miniPCIe card
• USB: Yes
• Power jack: Yes
• 802.3af support: No
• PoE: 8-30V DC
• Voltage monitor: Yes
• Temperature sensor: Yes
• Dimensions: 246x135x50mm
• Operating system: RouterOS
• RouterOS license: Level4

The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device. The mANT is a dual-polarization antenna with two RP-SMA connectors, it comes in two sizes, the 15dBi model and the 19dBi model. Both antennas have 120 degree beamwidth. The mANT19s comes with metallic U bolt type mounts.

Product Specifications:

• Antenna Gain: 19dBi
• Frequency Range: 5.17-5.825GHz
• Polarization: Vertical and horizontal
• 3DB Beamwidth - azimuth: 120deg
• 3DB Beamwidth - elevation: 5deg
• VSWR: 1,43typ, 1.8max
• Port to port isolation: >40dB min
• Front-to-back ratio: >30dB
• Cross Polarization: >30dB
• Connector: 2 x RP-SMA

Gambar produk
