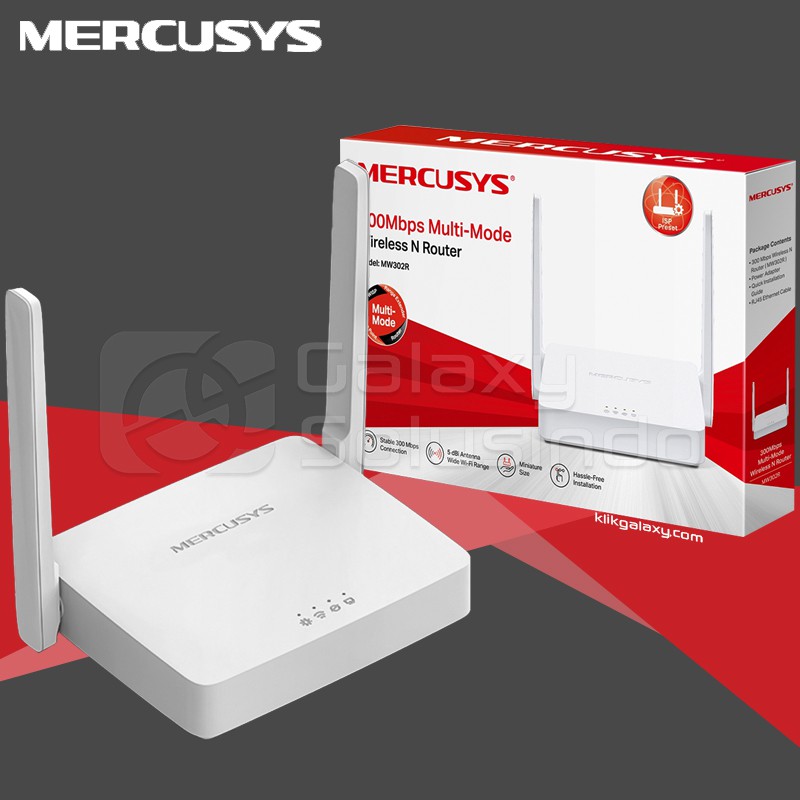

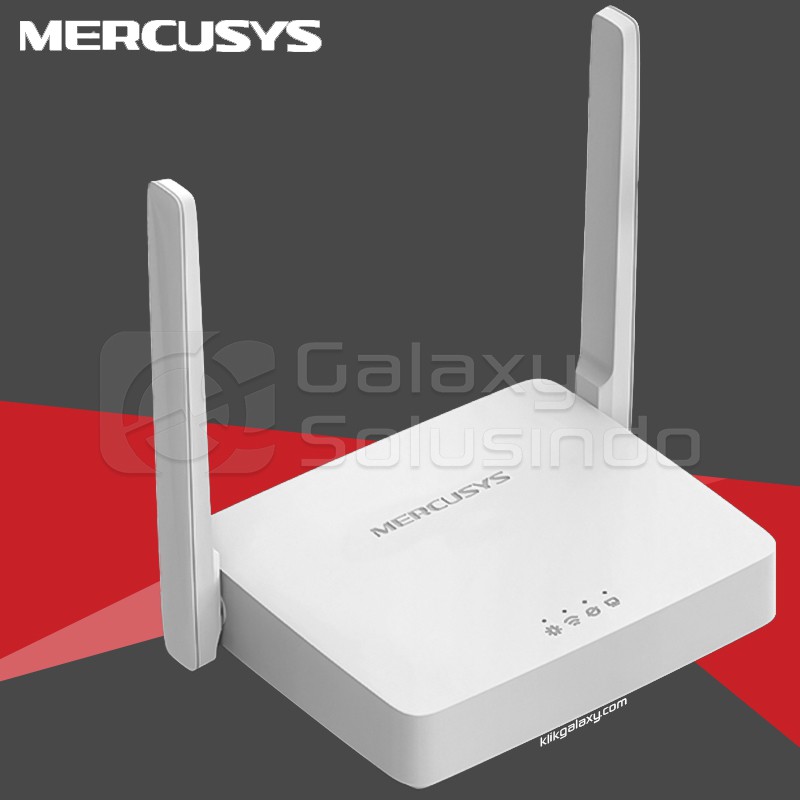

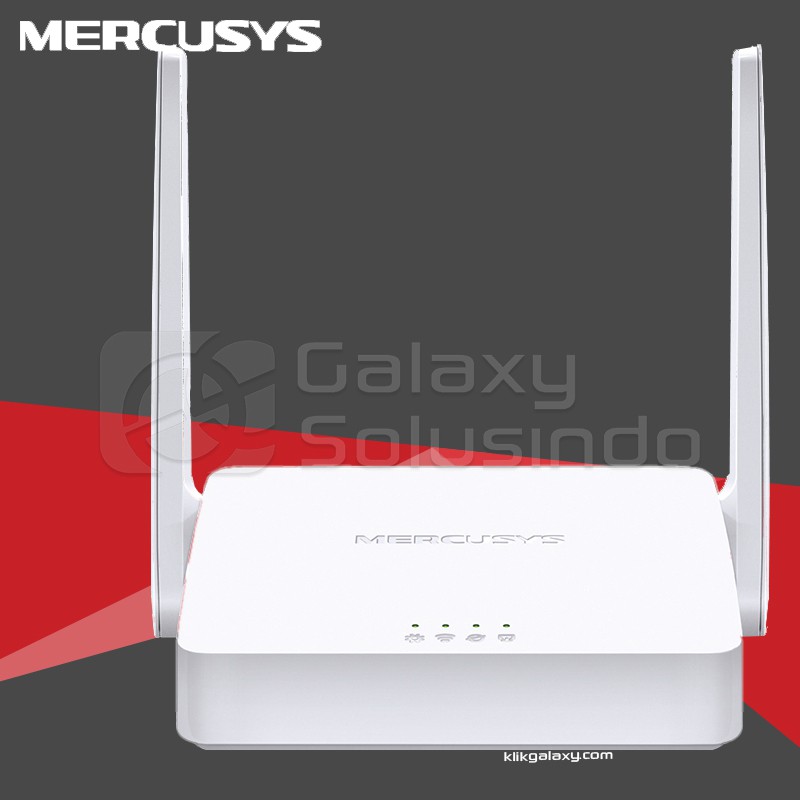

MERCUSYS MW302R 300Mbps Multi-Mode Wireless N Router

Detail MERCUSYS MW302R 300Mbps Multi-Mode Wireless N Router

300Mbps Multi-Mode Wireless N Router
MW302R

Fast Wi-Fi for Daily Life — MW302R provides fast and stable connections to meet all your network needs with speeds of up to 300 Mbps
Broader Coverage — Equipped with high gain external antennas to deliver strong Wi-Fi signals to every corner of your home
Multi-Mode — Four modes in one device to satisfy all application scenarios
Easy installation — Intuitive webpage guides you through the setup process in minutes
Active Parental Controls — Establish appropriate access policies to protect children with responsible, safe internet access
Compatible with IPv6 (Internet Protocol version 6)

SPECIFICATION:

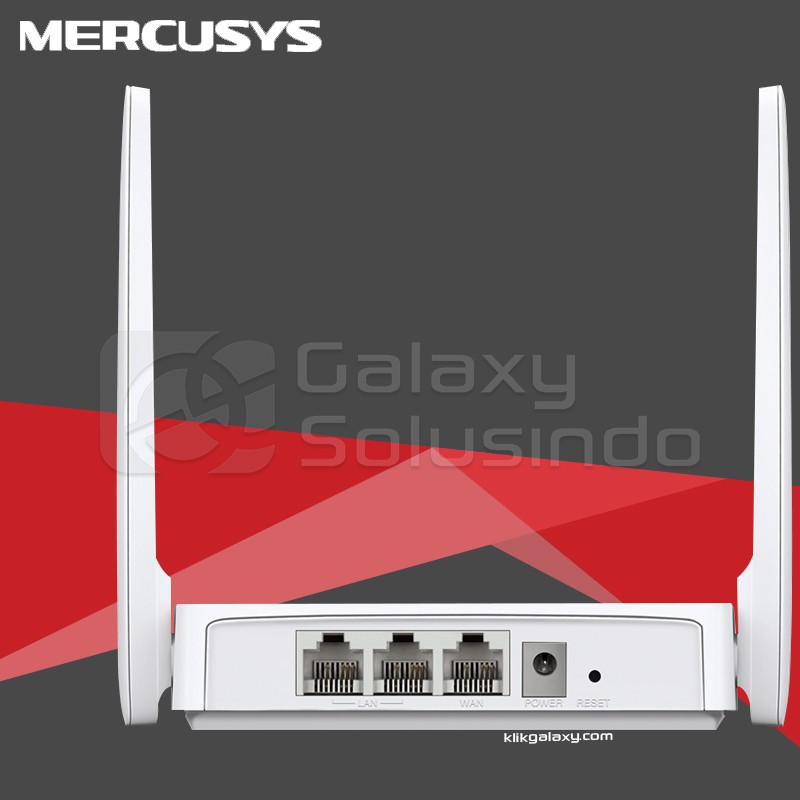

Ethernet Ports

2*10/100Mbps LAN Ports &
1*10/100Mbps WAN Port
Button

Reset Button

External Power Supply

5V/0.6A
Dimensions (W X D X H)

114 mm × 94 mm × 26 mm

Antenna Type

2 * 5dBi
Package Contents

300Mbps Wireless N Router ( MW302R )
Power Adapter
Quick Installation Guide
Ethernet Cable
Wireless Standards

IEEE 802.11b/g/n
Frequency

2.4-2.4835GHz
Signal Rate

• 11n: Up to 300Mbps (Dynamic)
• 11g: Up to 54Mbps (Dynamic)
• 11b: Up to 11Mbps (Dynamic)
Reception Sensitivity

• 270M: -73dBm@10% PER
• 130M: -75dBm@10% PER
• 54M: -77dBm@10% PER
• 11M: -90dBm@10% PER
• 6 M: -94dBm@10% PER
• 1 M: -96dBm@10% PER
Wireless Functions

Enable/Disable Wireless Radio, WDS Bridging
Wireless Security

WPA-PSK / WPA2-PSK
WAN Type

Dynamic IP/Static IP/PPPoE/PPTP/L2TP
DHCP

Server
Port Forwarding

Virtual Server, UPnP, DMZ
Management

Access Control, Local Management, Remote Management
Firewall Security

IP and MAC Address Binding
Guest Network

2.4GHz Guest Network
Protocols

IPv4, IPv6
Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
Transmission Power

<20dBm (EIRP)
